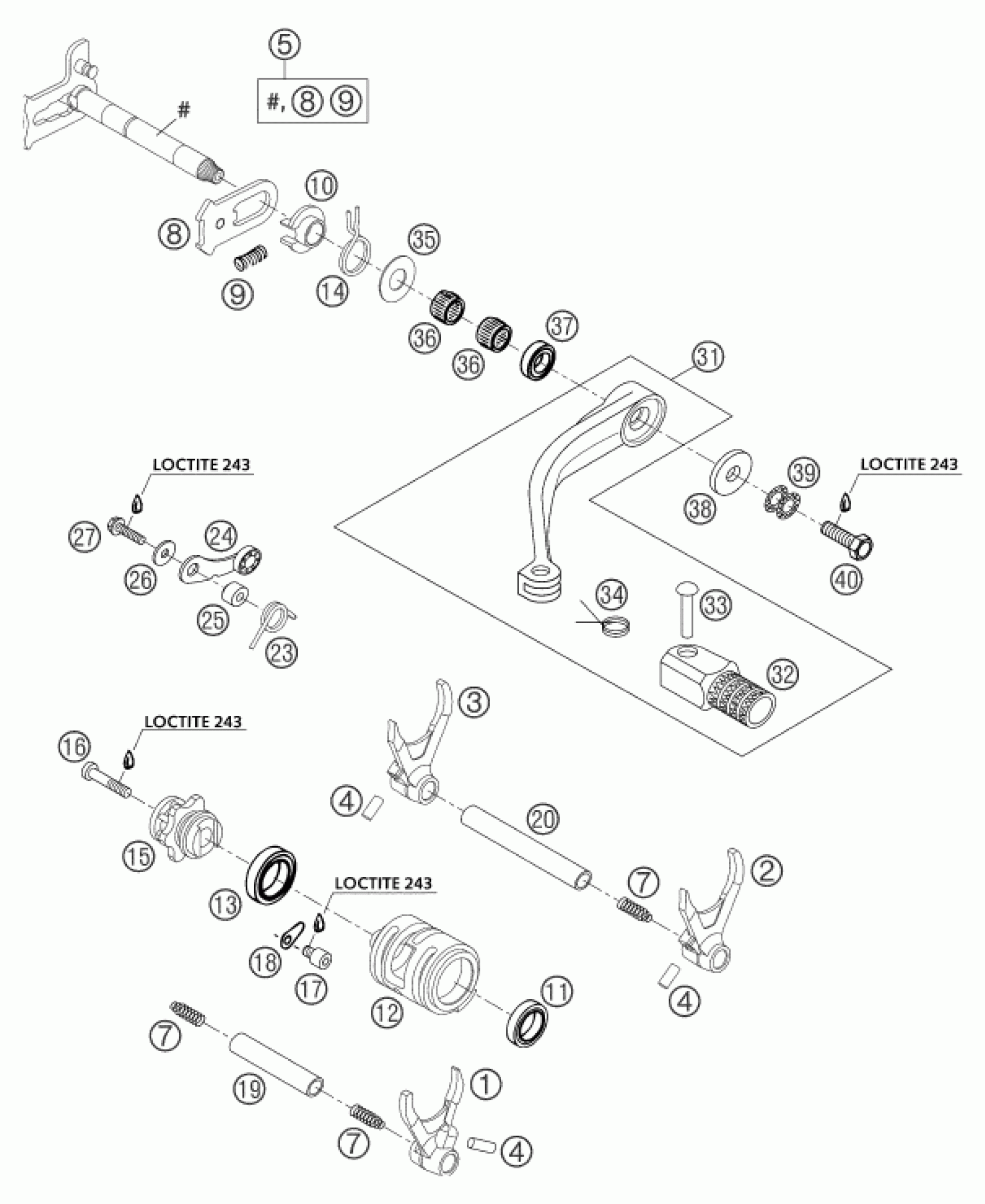

KTM 300 MXC 2004 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFTING FORK 4TH/5TH GEAR 03

54834001000

Unavailable

2

SHIFTING FORK 2ND GEAR 03

54834002000

Unavailable

3

SHIFTING FORK 1ST/3RD GEAR 03

54834003000

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

SHIFTING SHAFT CPL. 03

54834005044

Unavailable

7

PRESSURE SPRING 0,9MM

58038023200

Unavailable

8

SLIDING PLATE CPL.

54634008044

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

SPRING GUIDE

54634020000

Unavailable

11

BALL BEARING 6903 C4

0625069034

Unavailable

12

SHIFT ROLLER 03

54834012000

Unavailable

13

BALL BRG 6805 C4 NTN JAPAN

0625068050

Unavailable

14

RETURN SPRING 03

54834014000

Unavailable

15

SHIFT LOCATING DRUM 2003

54834015000

Unavailable

16

AH SCREW DIN6912 M 6X30

0984060302

Unavailable

17

AH collar screw DIN 912 M6x8

0912060083

Unavailable

18

RETAINING PLATE

54634049000

Unavailable

19

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

Unavailable

20

SHIFT. RAIL C. SHAFT 250/300

54834020000

Unavailable

23

LOCKING LEVER SPRING 03

54834023000

Unavailable

24

LOCATING LEVER CPL.125/200'98

50334024044

Unavailable

25

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

26

WASHER DIN7349-5X15X2

0349000050

Unavailable

27

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

31

SHIFT LEVER CPL. 2-STROKE

54634031044

Unavailable

32

STEP PLATE FOR SHIFT LEVER 250

54634131000

Unavailable

33

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

34

SHIFTING LEVER SPRING 250

54634032100

Unavailable

35

STOP DISK 14X30X1

54634050000

Unavailable

36

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

37

radial shaft seal 14x24x6 B

0760142460

Unavailable

38

STEEL WASHER 6,4X17X3

50232050001

Unavailable

39

Pair of washers M6 NORDLOCK

50233041000

Unavailable

40

HH SCREW DIN0933-M 6X16 10.9

0933060165

Unavailable
