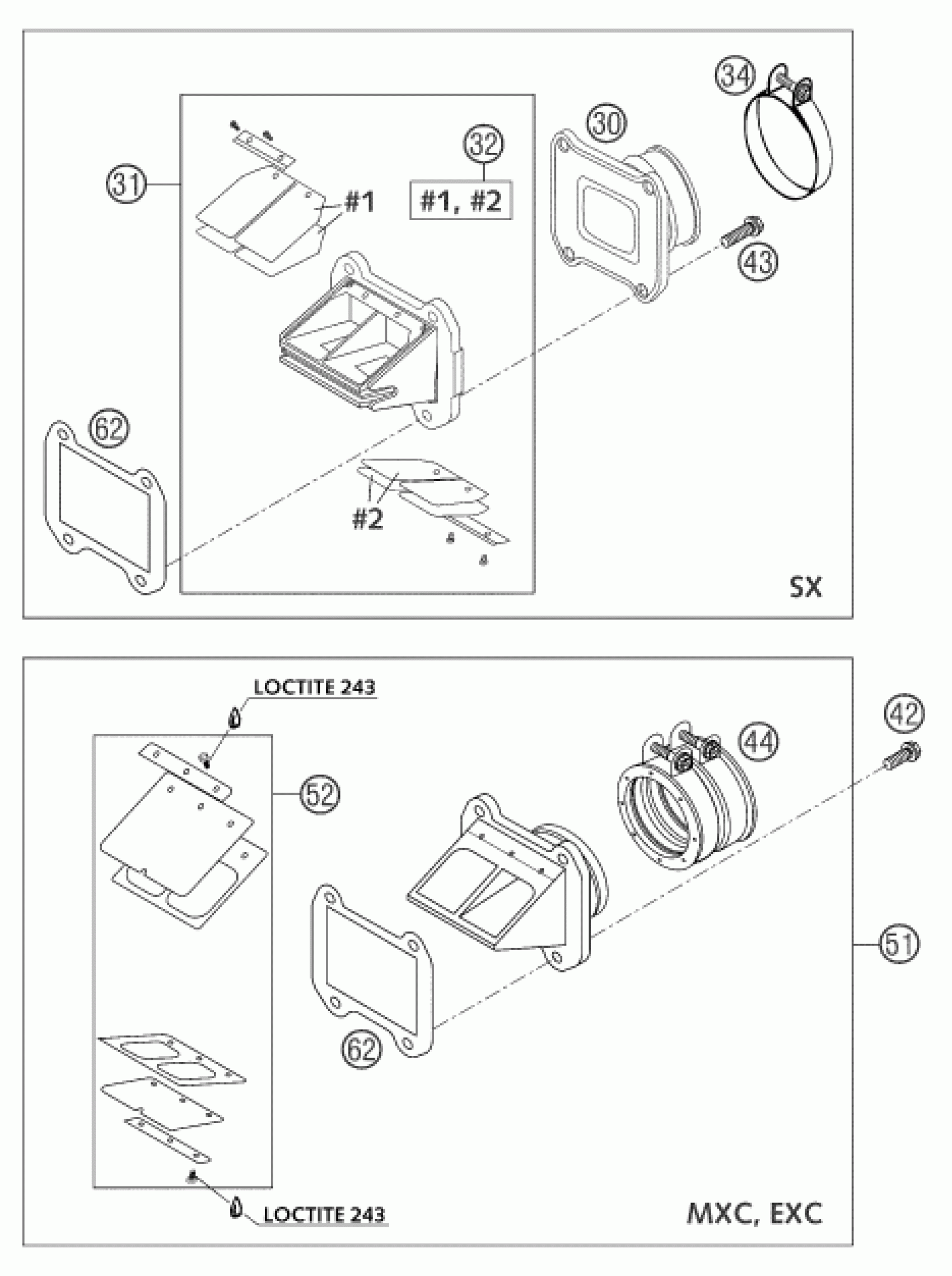

KTM 300 MXC 2004 REED VALVE CASE Diagram

#

Description

Price

30

INTAKE FLANGE V-FORCE 04

54830050000

Unavailable

31

REED VLV ASSY V-FORCE CPL.04

54830051144

Unavailable

32

REED VALVE SET V-FORCE 250 04

54830052000

Unavailable

34

Hose clip GEMI 52mm

54330061000

Unavailable

42

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

43

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

44

rubber boot with clamp

54736044044

Unavailable

51

REED VLV ASSY BOYESEN CPL.03

54830051044

Unavailable

52

REED VALVE CPL. BOYESEN 02

54730052000

Unavailable

62

GASKET REED VALVE CASE 04

54830062100

Unavailable
