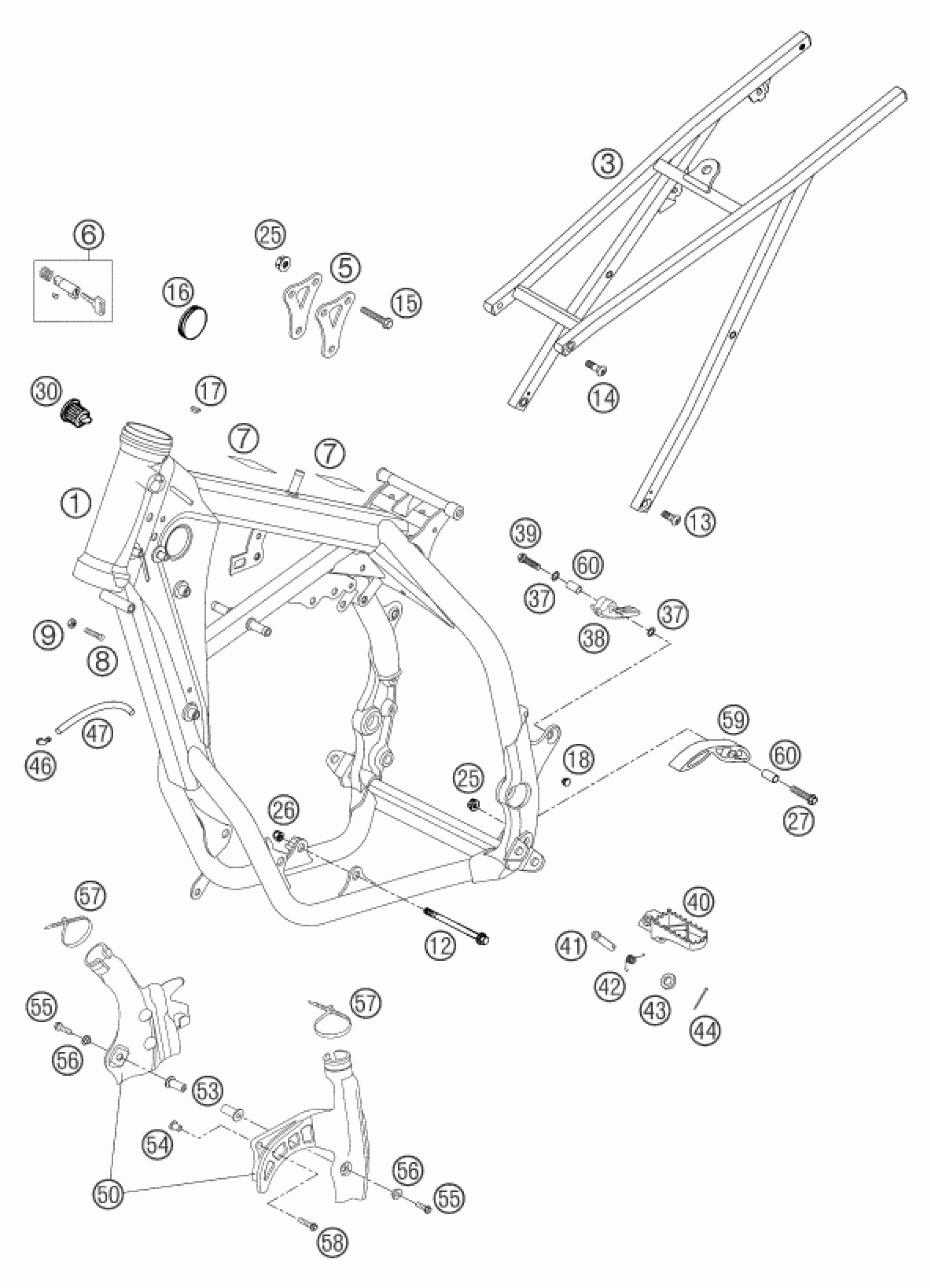

KTM 300 MXC 2004 FRAME Diagram
#
1
FRAME 250 SX ''U3''
5480300100096
Unavailable
1
FRAME 250/300 MXC, EXC "E4" 04
5480300110096
Unavailable
1
FRAME 250/300 EXC-EU ''F4''
5480300120096
Unavailable
3
SUB FRAME CPL.200/250SX ''E3''
54803002044
Unavailable
3
SUB FRAME CPL.2-ST.EXC ''L3''
54803002144
Unavailable
5
REINFORCING BRACKET 250 03
54803013000
Unavailable
6
STEERING HEAD LOCK CPL. ZADI
71003007000
Unavailable
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
Unavailable
8
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
9
Hexagon nut DIN934 M8
0934080003
Unavailable
12
engine brac.scr. M10x105 WS13
54603013000
Unavailable
13
SPROCKET SCREW-AH M8X20 WS=6
54610052000
Unavailable
14
SPROCKET SCREW-AH M8X26 WS=6
54510052100
Unavailable
15
HH COLLAR SCREW M 8X44 WS13
56530079000
Unavailable
16
PLUG 37MM
54606004000
Unavailable
17
PLUG
36111021000
Unavailable
18
PLASTIC CAP SFL10
54403135000
Unavailable
25
Self locking nut M8 10.9
54310086200
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH COLLAR SCREW M 8X35 WS=10
0015080353
Unavailable
30
PLASTIC CAP
42007049000
Unavailable
37
LOCK WASHER 8MM
36003014000
Unavailable
38
CHAIN SLIDING PIECE 03
54804067000
Unavailable
39
HH COLLAR SCREW M 8X30 WS=10
0015080303
Unavailable
40
FOOT PEG L/S SILVER 02
59003040250
Unavailable
40
FOOT PEG R/S SILVER 02
59003041250
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
FRAME PROTECTION SET 03
54803094000
Unavailable
53
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
Unavailable
54
BUSHING F. SPROCKET COVER RAC.
59030060050
Unavailable
55
HH COLLAR SCREW M 5X25 WS=6
0014050253
Unavailable
56
Bush f. frame protection 03
54803092060
Unavailable
57
Cable tie 200/4.6mm black
44011076200
Unavailable
58
HH COLLAR SCREW M 6X35 WS=8
0015060353
Unavailable
59
CHAIN SLIDING PIECE BELOW '97
51103053000
Unavailable
60
BUSHING 8,2X10X20
51103053051
Unavailable
