Partiron

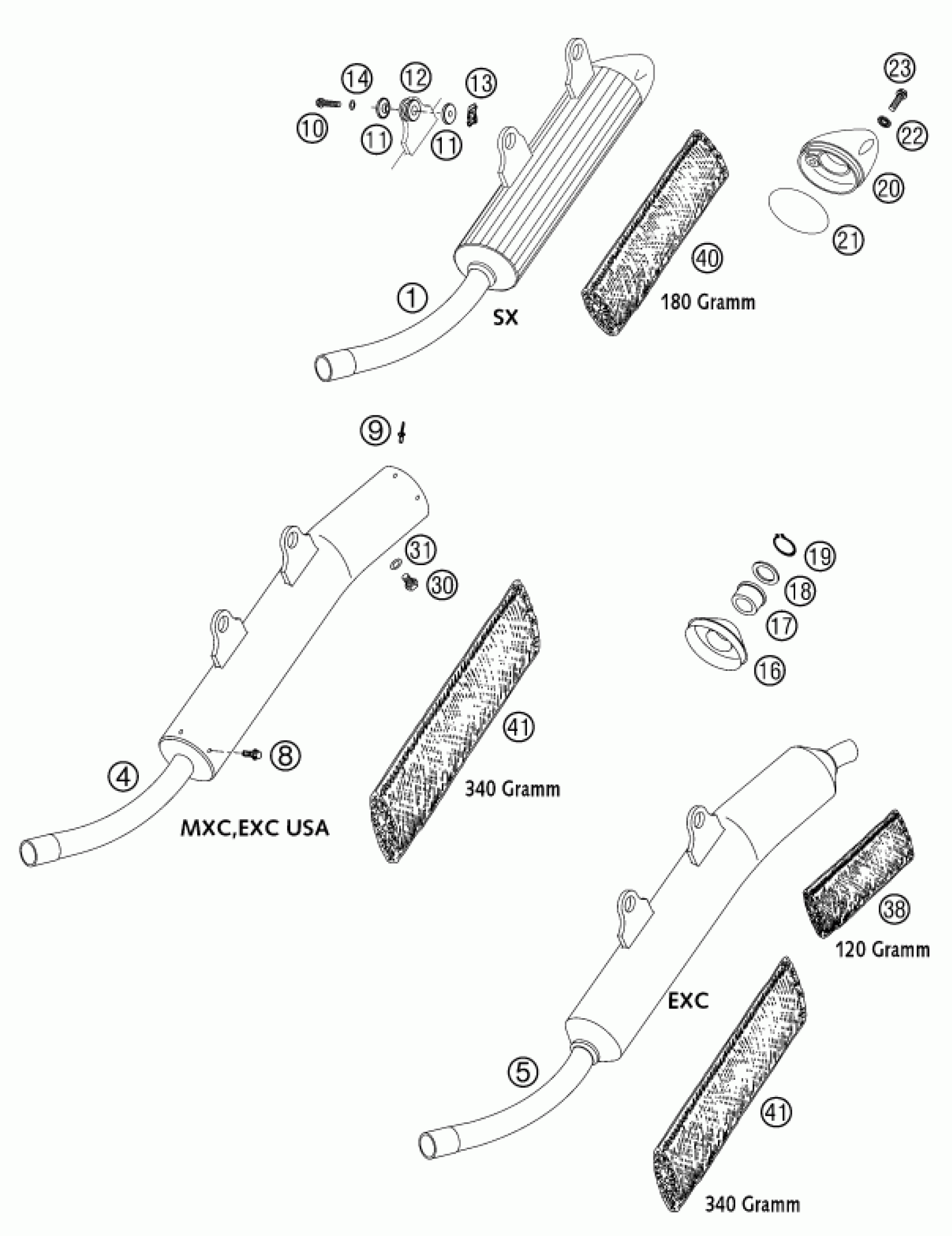

KTM 300 MXC 2002 MAIN SILENCER Diagram

#

Description
Price

1

EXH.SILENCER 200/250 SX ALU 00

54605079700

Unavailable

4

EX.SIL.200/250/300 MXC/EXC '00

52305082100

Unavailable

5

EX.SILENC. "KTM EGS1" 2000

52305083100

Unavailable

8

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

9

RIVET 4,8X10,3 ALU

0011481030

Unavailable

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

11

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

13

clip nut M6

54603048100

Unavailable

14

spring washer DIN 137 B - 6

0137060003

Unavailable

16

% SILENCER CAP PLASTIC

54605379549

Unavailable

16

SILENCER END CAP ALU

54705179070

Unavailable

17

SEAL RING VITON D=28MM

54605379028

Unavailable

18

WASHER D=28 MM

54605079047

Unavailable

19

CIRCLIP DIN0471-28X1,5

0471280151

Unavailable

20

SILENCER ENDCAP SX REAR

50305079169

Unavailable

21

0-RING 55,00X2,00 NBR70

0770055020

Unavailable

22

Pair of washers M6 NORDLOCK

50233041000

Unavailable

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

30

PLUG DIN0910-M 10X1

0910100003

Unavailable

31

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

38

STUFFING YARN 120 GRAM

58005078120

Unavailable

40

STUFFING YARN 180 GRAM

50305079180

Unavailable

41

STUFFING YARN 340 GRAM

58005078340

Unavailable
