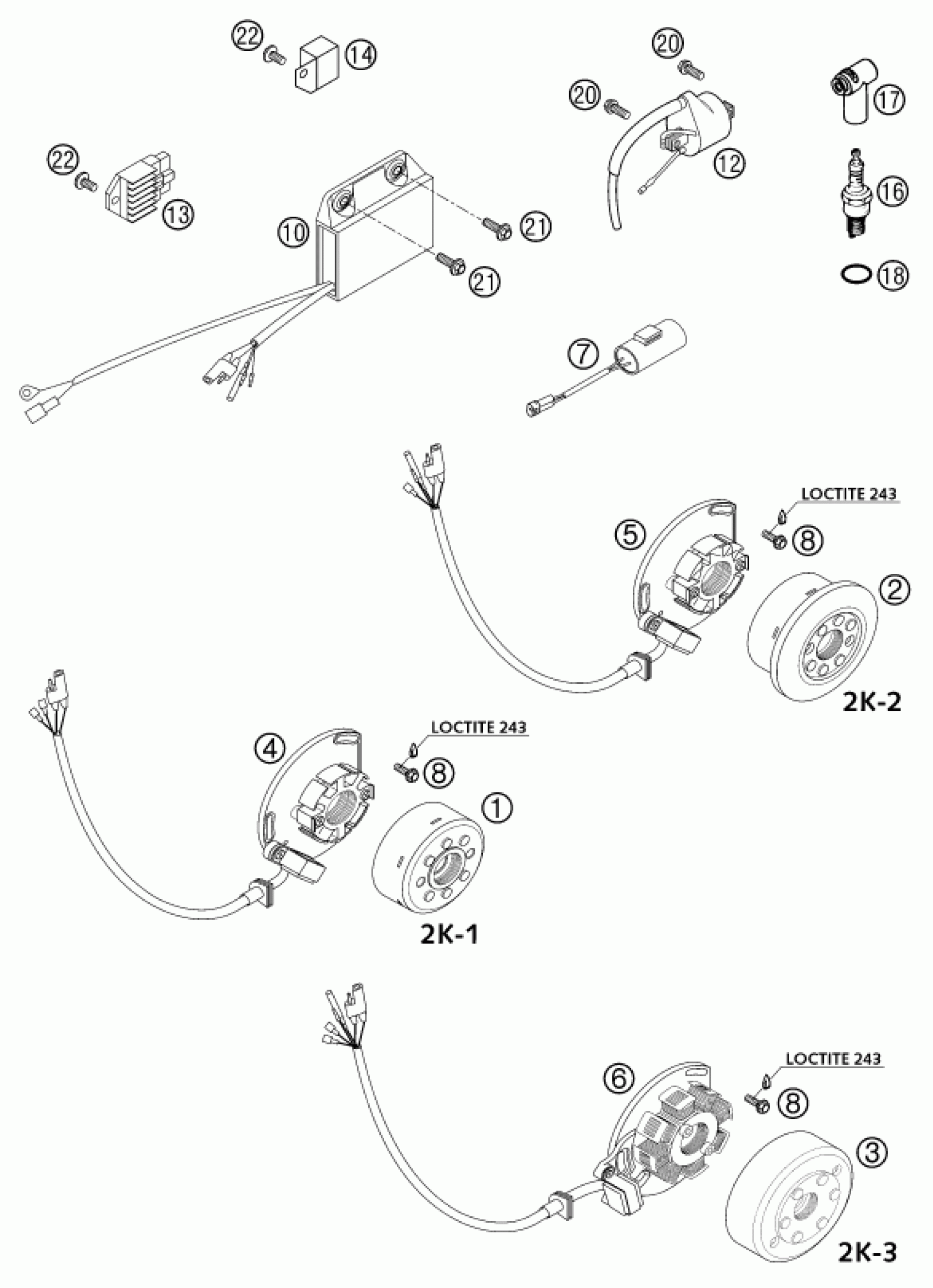

KTM 300 MXC 2002 IGNITION SYSTEM Diagram

#

Description
Price

17

SPARK PLUG CAP LB05EMH N

54531010000

Unavailable

18

O-RING 15,00X4,00 NBR 70

0770150040

Unavailable

1

FLYWHEEL KOKUSAN 2K-1/2K-4 '97

54739005000

Unavailable

2

FLYWHEEL KOKUSAN 2K-2 CPL. '97

54739005144

Unavailable

3

FLYWHEEL KOKUSAN 2K-3 '98

50339005200

Unavailable

8

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

12

IGNI.COIL KOKU. IG5127

50339006000

Unavailable

16

SPARK PLUG NGK BR8ECM

54331093410

Unavailable

4

STATOR KOKUSAN 2K-1 '98

50339004000

Unavailable

5

STATOR KOKUSAN 2K-2 '98

50339004100

Unavailable

6

STATOR KOKUSAN 2K-3 '98

50339004200

Unavailable

7

CONDENSATOR 2200MF ADP-48 2000

50311035000

Unavailable

10

* CDI BOX 250 EXC 2002

54639031800

Unavailable

10

*CDI BOX CU7423 300/380 '98

54739031200

Unavailable

13

VOLTAGE REGULA. 12V 125-200'98

50311034000

Unavailable

14

VOLTAGE REGULATOR KOKU.EXC USA

54711034000

Unavailable

20

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

21

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable
