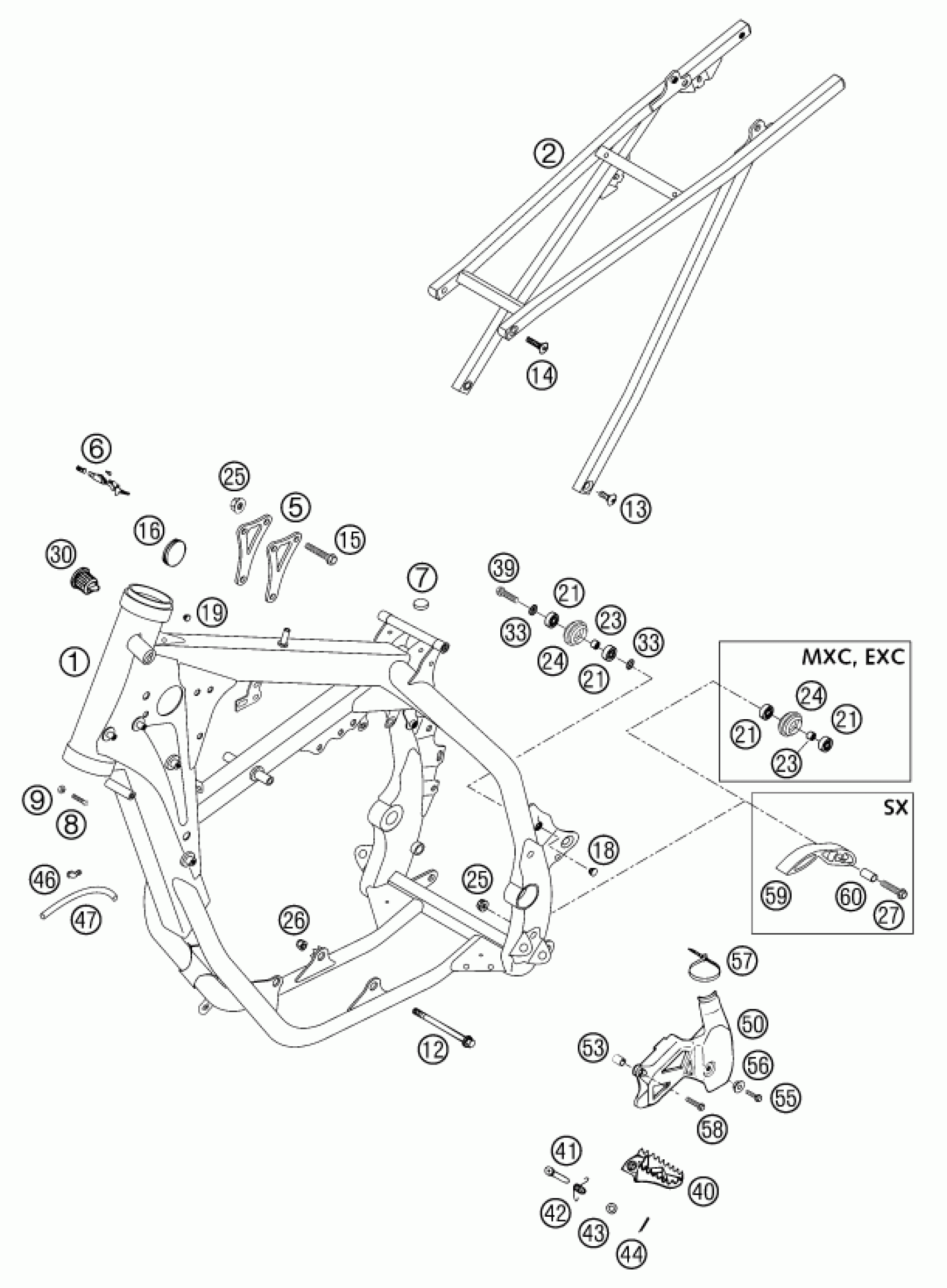

KTM 300 MXC 2002 FRAME Diagram
#
1
% FRAME 250-380 EXC EU (F0) 00
54703001400
Unavailable
2
SUB FRAME CPL.ALU 125-380 98
50303002044
Unavailable
5
REINFORC.BRACKET 4MM 250'2000
54703013100
Unavailable
5
REINFORCING BRACKET 250-380'98
54703013000
Unavailable
6
STEERING HEAD LOCK CPL. ZADI
71003007000
Unavailable
7
RUBBER BUFFER FOR TANK '98
50307020000
Unavailable
8
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
9
Hexagon nut DIN934 M8
0934080003
Unavailable
12
engine brac.scr. M10x105 WS13
54603013000
Unavailable
13
SPROCKET SCREW-AH M8X20 WS=6
54610052000
Unavailable
14
SPROCKET SCREW-AH M8X26 WS=6
54510052100
Unavailable
15
HH COLLAR SCREW M 8X44 WS13
56530079000
Unavailable
16
PLUG 37MM
54606004000
Unavailable
18
PLASTIC CAP SFL10
54403135000
Unavailable
19
PLUG
36111021000
Unavailable
21
Grooved ball bearing 608 2RS C
0625006087
Unavailable
23
BUSHING 8.2 X 12 X 6
74003021000
Unavailable
24
CHAIN ROLL D=30MM 125-380 '99
52303053000
Unavailable
25
Self locking nut M8 10.9
54310086200
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH COLLAR SCREW M 8X35 WS=10
0015080353
Unavailable
30
PLASTIC CAP
42007049000
Unavailable
33
LOCK WASHER 8MM
36003014000
Unavailable
39
HH COLLAR SCREW M 8X30 WS=10
0015080303
Unavailable
40
FOOT PED L/S EXC SILVER 00
59003040050
Unavailable
40
FOOT PEG L/S SILVER 02
59003040250
Unavailable
0
FOOT PED R/S EXC SILVER 2000
59003041050
Unavailable
0
FOOT PEG R/S SILVER 02
59003041250
Unavailable
41
BOLT FOR FOOTREST 9,8 X 50
54603044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
SPROCKET COVER
54607061000
Unavailable
53
COLLAR BUSHING 6,4X8X12X15,5
54703092050
Unavailable
55
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
56
BUSH FOR SPOILER 6X11X16X7,5
50308053000
Unavailable
57
Cable tie 200/4.6mm black
44011076200
Unavailable
58
HH COLLAR SCREW M 6X25 WS=8
0015060253
Unavailable
59
CHAIN SLIDING PIECE BELOW '97
51103053000
Unavailable
60
BUSHING 8,2X10X20
51103053051
Unavailable
