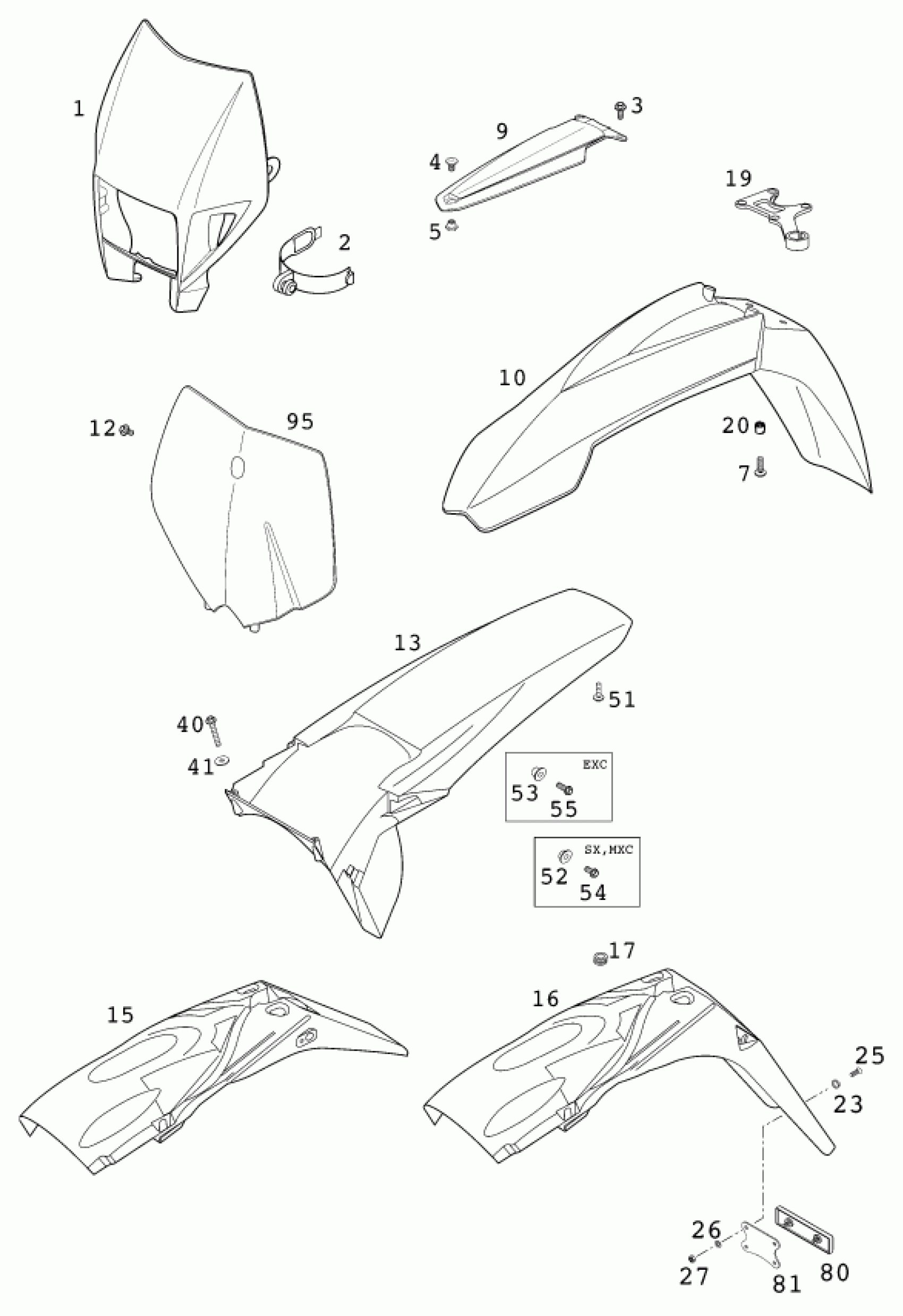

KTM 300 MXC 2001 MASK, FENDERS Diagram

#

Description
Price

3

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

4

SCREW FEND.BRACE M8X9 WS=17

50308009050

Unavailable

5

NUT FENDER BRACE M8 WS=17

50308009051

Unavailable

7

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

9

FENDER BRACE BLACK '99

50308009100

Unavailable

10

FENDER FRONT ORANGE '99

5030801010004

Unavailable

12

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

13

REAR FENDER SX SILVER '98

5030801300090

Unavailable

17

rubber grommet D=8mm open

31008060000

Unavailable

19

BRAKE HOSE GUIDE 2000

59008019000

Unavailable

20

SPACER BUSHING 7X10X7,5

50208020000

Unavailable

23

WASHER 6MM

40006006000

Unavailable

25

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

26

WASHER DIN0125-A 5,3

0125050003

Unavailable

27

Self locking nut DIN 985 M5

0985050003

Unavailable

40

SPECIAL SCREW T60 6X40 WS=6

0017060403

Unavailable

41

WASHER DIN0125-A 6,4

0125060003

Unavailable

51

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

52

BUSH FOR FENDER 6X11X20X5 MM

50308052100

Unavailable

54

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

95

NUMBER PLATE ORANGE SX, MXC

5030800700004

Unavailable
