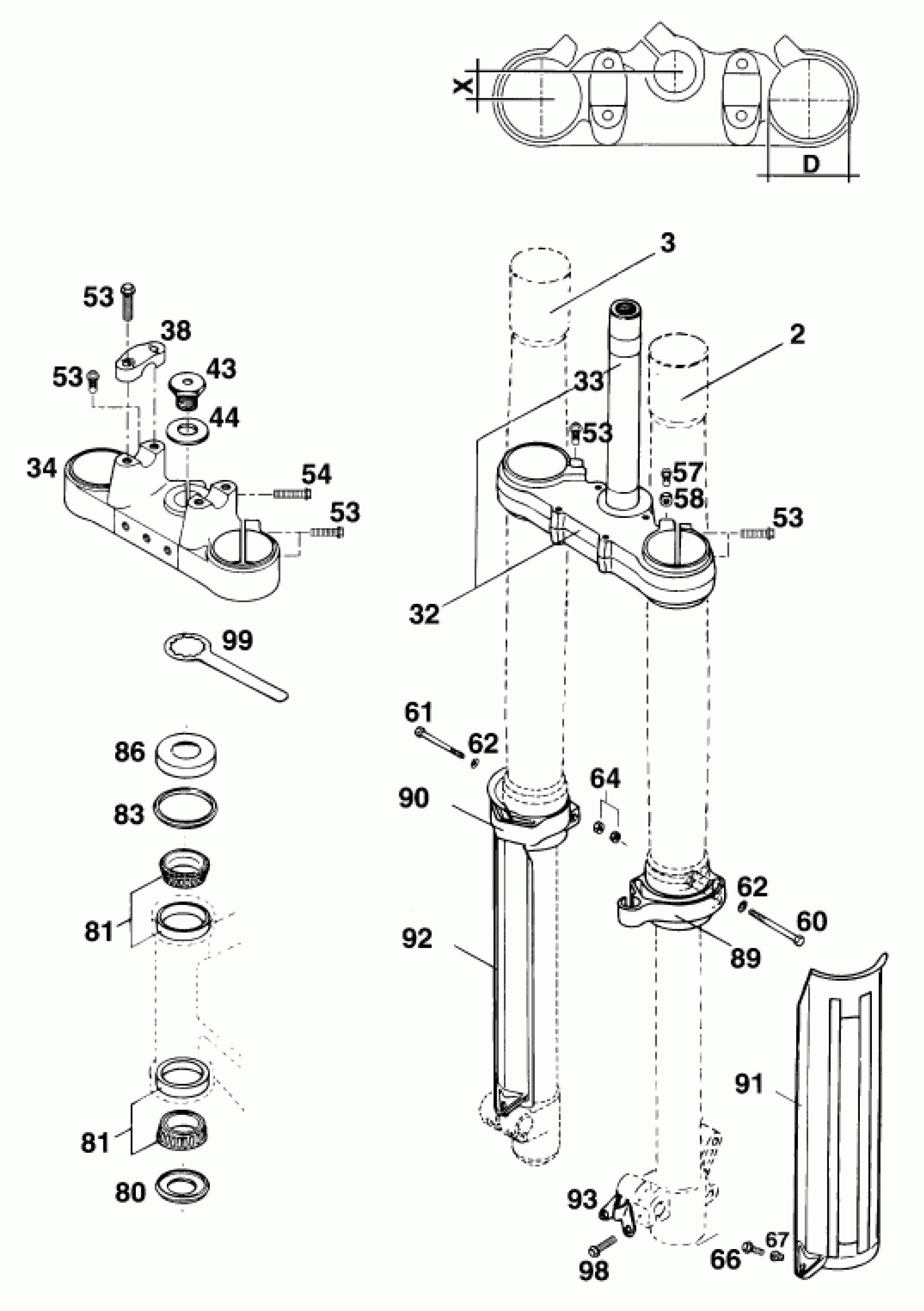

KTM 300 MXC 1994 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

2

* FORK LEG L/S K23M94

54601402600

Unavailable

2

* FORK LEG L/S K23E94

54601402700

Unavailable

2

* FORK LEG L/S K23E94US

54601402800

Unavailable

2

* FORK LEG L/S K23M94US

54601402900

Unavailable

3

* FORK LEG R/S K23M94

54601502600

Unavailable

3

* FORK LEG R/S K23E94

54601502700

Unavailable

3

* FORK LEG R/S K23E94US

54601502800

Unavailable

3

* FORK LEG R/S K23M94US

54601502900

Unavailable

32

BOT.TRIPLE CLAMP X=18MM/D=57MM

54601032044

Unavailable

33

FORK TUBE L=244 '91

50101033100

Unavailable

34

TOP TRIPLE CLAMP X=18MM/D=54MM

54601034000

Unavailable

38

56401038000

Unavailable

39

HANDLEBAR SUPPORT

56401039000

Unavailable

40

rubber bushing

56401040000

Unavailable

41

SPACER TUBE 10,2X12X44

56401041100

Unavailable

42

washer 10.5x32x2

56401042000

Unavailable

42

WASHER 10,5X31

56401142000

Unavailable

43

HH SCREW M20X1,5

56401043000

Unavailable

44

WASHER 21X38X3

56401044000

Unavailable

53

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

56

AH SCREW DIN7984-M10X70

0984100702

Unavailable

57

% AH SCREW DIN912 M7x20

0912070203

Unavailable

58

HEXAGON NUT DIN0934-M 7

0934070003

Unavailable

59

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

60

HH SCREW DIN931 M5x40

0931050403

Unavailable

61

HH SCREW DIN931 M5X45

0931050453

Unavailable

62

WASHER DIN0125-A 5,3

0125050003

Unavailable

64

Self locking nut DIN 985 M5

0985050003

Unavailable

66

HH SCREW DIN0933-M 5X16

0933050163

Unavailable

67

COLLAR BUSHING F.SLIDING PROT.

54601094100

Unavailable

80

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

81

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

83

STEARING HEAD GASKET TOP

54601184000

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

89

PROTECTOR GUIDE L/S WHITE

54601090000

Unavailable

90

PROTECTOR GUIDE R/S WHITE

54601190000

Unavailable

91

SLIDING PROTECTOR L/S WHITE

54601091000

Unavailable

92

* SLIDING PROTECTOR R/S WHITE

54601191000

Unavailable

93

CLAMP FOR BRAKE HOSE '94

50201090000

Unavailable

95

SNAP NUT

31005042000

Unavailable

96

GROUND CABLE

57101008000

Unavailable

97

SHEET MET.SCR.DIN7981 4,8x19

0981480193

Unavailable

99

RING WRENCH WS=32

54212035000

Unavailable
