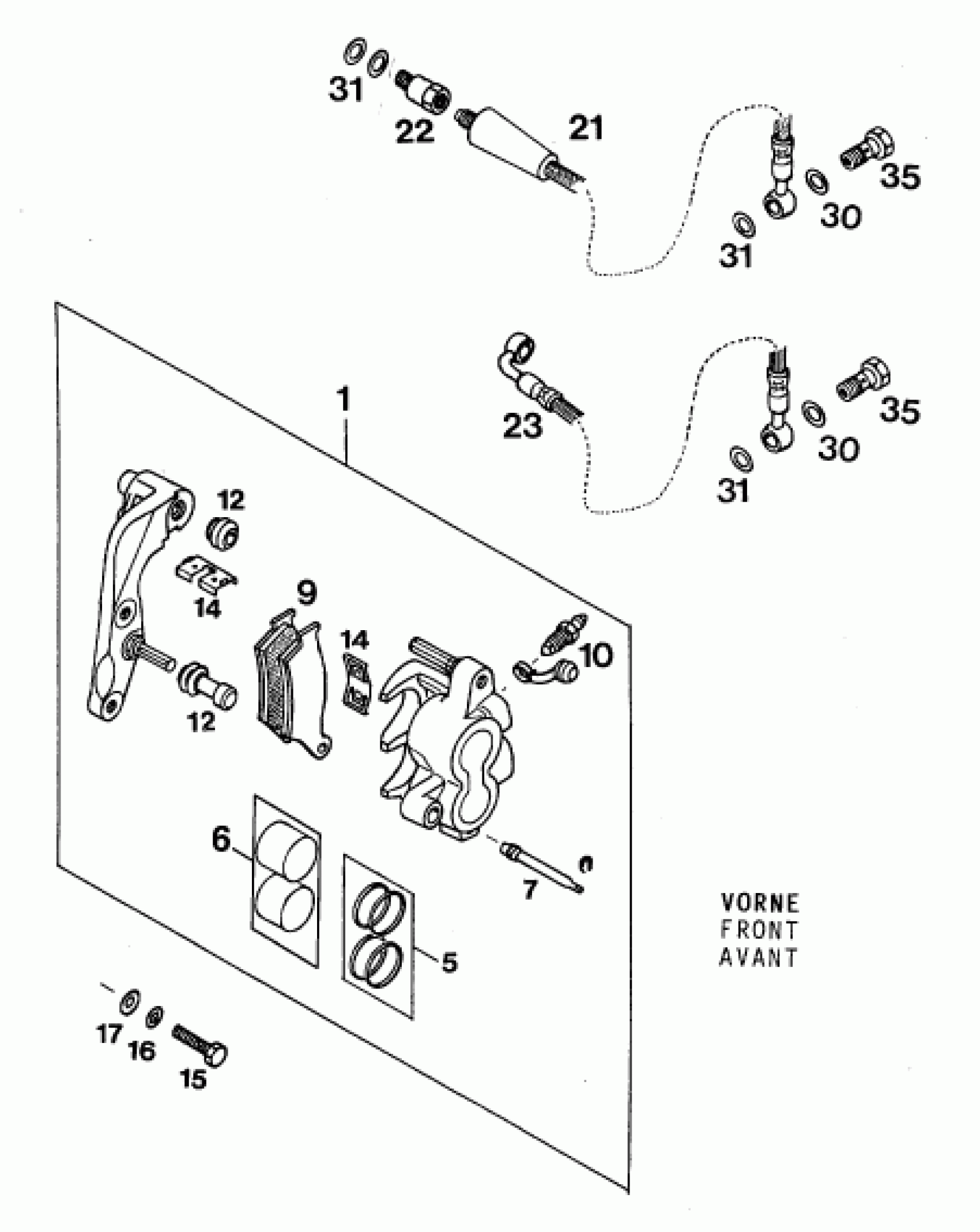

KTM 300 MXC 1994 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

FRO.BRAKE CALIPER CPL. 2PISTON

54613201044

Unavailable

5

REPAIR KIT 28MM

54613205000

Unavailable

6

REPAIR KIT PISTON 28MM

54613206000

Unavailable

7

BOLT 6X45

54613210000

Unavailable

8

RETAINING PLATE SET BREMBO

54613212000

Unavailable

9

BRAKE PAD SET FR. FERODID450

54613209044

Unavailable

9

* BRAKE PAD SET SINTER

54613209144

Unavailable

10

BLEEDER SCREW M10X1

54513214000

Unavailable

12

CUP SET SHORT

54613218000

Unavailable

15

HH SCREW DIN0933-M 8X30

0933080303

Unavailable

16

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

17

washer DIN 125 A -8.4

0125080003

Unavailable

21

BRAKE HOSE 1470 MM WP

50213029400

Unavailable

23

BRAKE HOSE 1565 MM WP '95

50213029300

Unavailable

30

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

31

CU-SEAL RING DIN7603-10X16X1,5

42013026000

Unavailable

35

HOLLOW SCREW M10X1X19

50213025000

Unavailable
