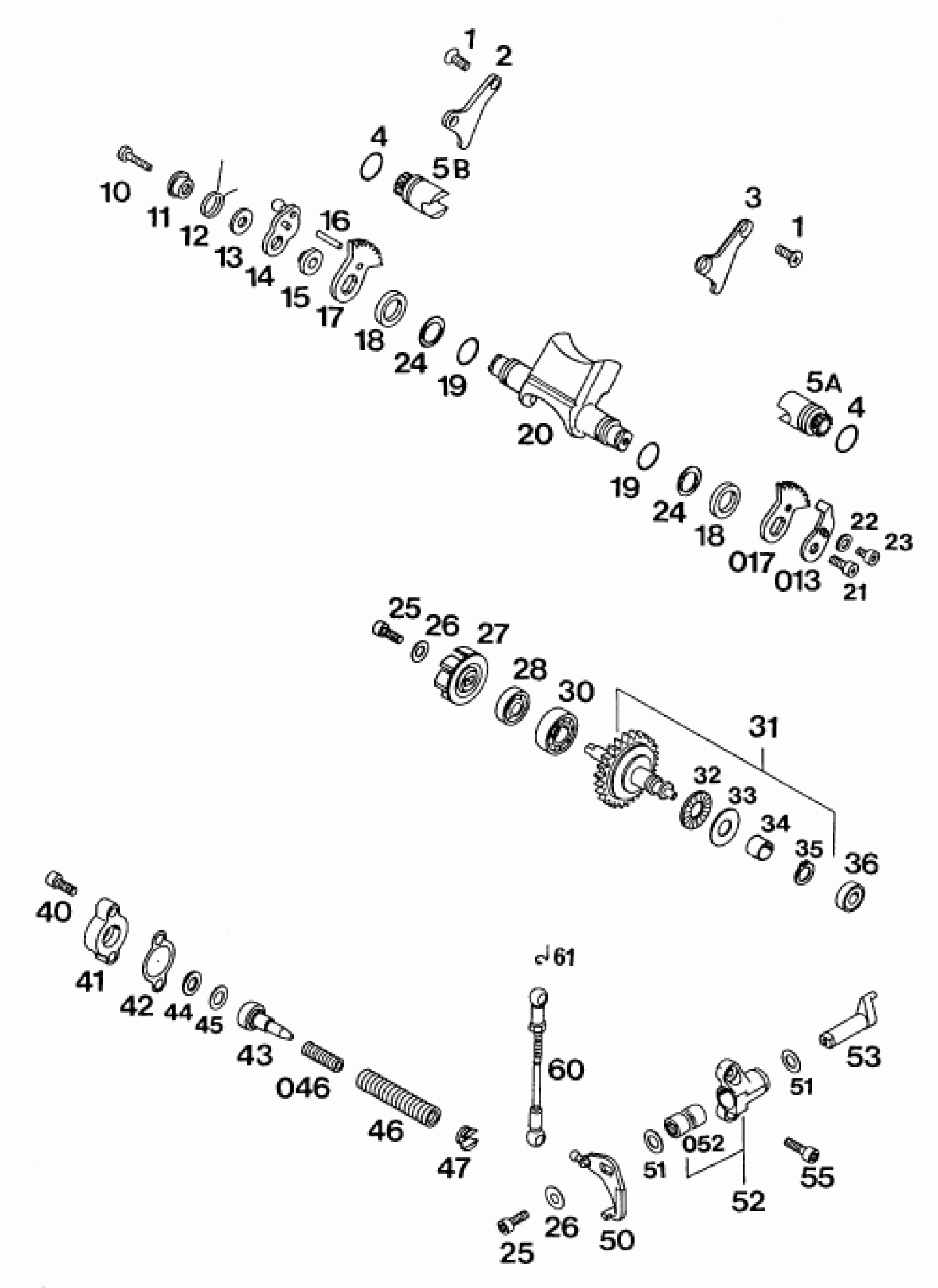

KTM 300 MXC 1994 EXHAUST CONTROL Diagram

#

Description
Price

1

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

Unavailable

2

RETAINING PLATE R/S 250

54637062000

Unavailable

2

RETAININGPLATE R/S 300/360/380

54637362000

Unavailable

3

RETAINING PLATE L/S 250

54637063000

Unavailable

3

RETAININGPLATE L/S300/360/380

54637363000

Unavailable

4

O-ring 16x2 Viton 75

0770160021

Unavailable

5

CONTROL ROLLER 13 T 250 '91

54637061200

Unavailable

5

CONTR.VALVE L/S 12 T 300'91''L

54637361200

Unavailable

6

CONTROL VALVE R/S 12 T 300 '91

54637361700

Unavailable

10

AH SCREW DIN6912-M 6X20 8.8

0984060203

Unavailable

11

SPRING SLEEVE

54637067000

Unavailable

12

OVERLOAD SPRING

54637066000

Unavailable

13

WASHER 6,2X18X2

50232050000

Unavailable

13

RETAIN.PLATE CONTROL FLAP '92

54637085300

Unavailable

14

CONTROL LEVER WITH BALL TYPE

54637065000

Unavailable

15

BUSHING SLEEVE

54637068100

Unavailable

16

CYLINDER PIN DIN 7-5X16MM (M6)

0007050160

Unavailable

17

GEAR SEGMENT R/S 250

54637064000

Unavailable

17

GEAR SEGMENT L/S 250

54637064050

Unavailable

17

GEAR SEGMENT R/S 300

54637364000

Unavailable

17

GEAR SEGMENT L/S 300

54637364050

Unavailable

18

BALL BEARING 61802.27R.C3

0625618020

Unavailable

19

O-RING 15,00X1,50 VITON

0770150151

Unavailable

20

CONTROL FLAP 250 VI '93

54637020400

Unavailable

20

CONTROL FLAP 300 VI '93

54637320400

Unavailable

21

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

22

WASHER 6,5X11X2

54637056000

Unavailable

23

AH SCREW DIN7984-M 6X 6

0984060063

Unavailable

24

* WASHER 15X17,8X0,15 STEEL

54637021000

Unavailable

25

* AH SCREW DIN7984 M5x12

0984050123

Unavailable

26

WASHER DIN7349-5X15X2

0349000050

Unavailable

27

WATER PUMP WHEEL

54635005000

Unavailable

28

SHAFT SEAL RING 8X24X7 A DUO

0760082472

Unavailable

30

BALL BEARING 16002

0625160026

Unavailable

31

CENTRIFUGAL TIMER CPL '91

54637050244

Unavailable

32

AXIAL NEEDLE BEARING AXK 1226

54637097200

Unavailable

33

AXIAL WASHER AS1226 12X26X1

54637098200

Unavailable

34

SPACER RING 12X15X9

54637054300

Unavailable

35

retaining ring DIN 471 12x1

0471120010

Unavailable

36

GROOVED BALL BEAR. 626.2RS1.C3

54637098000

Unavailable

40

AH SCREW DIN0912-M 5X20

0912050203

Unavailable

41

CLOSING COVER

54637070000

Unavailable

42

CLOSING COVER GASKET 1MM

54637073000

Unavailable

43

SPRING BEARING '91

54637075000

Unavailable

44

SHIM WASHER 10X16X1

54637074001

Unavailable

45

SHIM WASHER 10X16X0,5

54637074005

Unavailable

46

ADJUST.SPRING L=65MM D=1,8MM

54637072000

Unavailable

46

AUXILIARY SPRING 250 '91

54637072200

Unavailable

47

SPRING INSERT

54637071200

Unavailable

50

ANGLE LEVER CPL. '91

54637055244

Unavailable

51

SHIM WASHER DIN988 10X16X1

0988101610

Unavailable

52

BUSHING SUPPORT CPL.

54637059244

Unavailable

52

NEEDLE SLEEVE HK 1010

54637096000

Unavailable

53

CONTROL LEVER '91

54637057200

Unavailable

55

AH collar screw DIN 912 M5x16

0912050163

Unavailable

60

CONNECT.ROD CPL. L=109,5MM '91

54637095344

Unavailable

61

SECURING DIN-71805-S-8

50237195055

Unavailable
