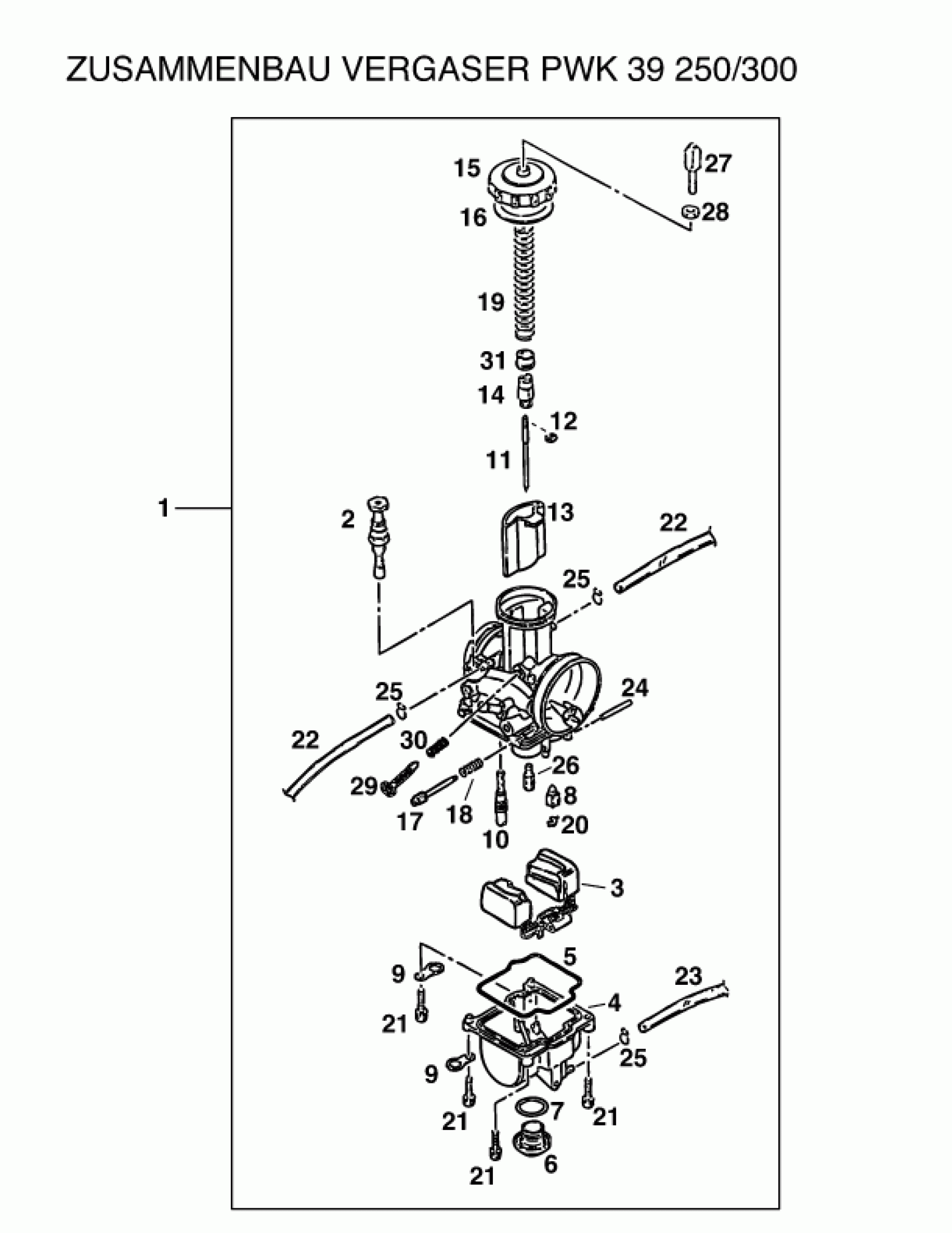

KTM 300 MXC 1994 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR KEIHIN PWK39 150693

54631301644

Unavailable

1

CARBURETOR KEIHIN PWK39 180693

54631301744

Unavailable

2

STARTER PISTON CPL.

54631245000

Unavailable

3

FLOAT R-39 16GRAM

54631209000

Unavailable

4

FLOAT CHAMBER

54631211000

Unavailable

5

GASKET FLOAT CHAMBER

54531610000

Unavailable

6

PLUG M 18X1

54531699000

Unavailable

7

O-RING 18,00X2,30 NBR 70

0770180230

Unavailable

8

FLOAT NEEDLE

54631220000

Unavailable

9

BRACKET D7

54531612000

Unavailable

10

IDLE JET 42 KEIHIN

54531607042

Unavailable

10

IDLE JET 45 KEIHIN

54531607045

Unavailable

10

IDLE JET 48 KEIHIN

54531607048

Unavailable

10

IDLE JET 50 KEIHIN

54531607050

Unavailable

11

JET NEEDLE N 85 A KEIHIN

54531636851

Unavailable

11

JET NEEDLE N 85 B KEIHIN

54531636852

Unavailable

11

JET NEEDLE N 85 C KEIHIN

54531636853

Unavailable

11

JET NEEDLE N 85 D KEIHIN

54531636854

Unavailable

12

CLIP FOR JET NEEDLE

54531629000

Unavailable

13

THROTTLE VALVE 60 KEIHIN

54631235006

Unavailable

14

NIPPLE

54631232000

Unavailable

15

CARBURETOR COVER

54631227000

Unavailable

16

RUBBER SEAL RING 40X46X1

54531628000

Unavailable

17

ADJUSTMENT SCREW

54531617000

Unavailable

18

SPRING FOR ADJUSTMENT SCREW

54531615000

Unavailable

19

SLIDING SPRING

54631230000

Unavailable

20

CLAMP

54531621000

Unavailable

21

FLAT HEAD SCREW DIN7985-M 4X15

0985040153

Unavailable

22

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

23

PVC-HOSE 3X5MM

52031137001

Unavailable

24

STUD 2,5X25

54531608000

Unavailable

25

Clamp 6mm

54531696000

Unavailable

26

MAIN JET 150 KEIHIN

54531623150

Unavailable

26

MAIN JET 165 KEIHIN

54531623165

Unavailable

26

MAIN JET 170 KEIHIN

54531623170

Unavailable

26

MAIN JET 175 KEIHIN

54531623175

Unavailable

26

MAIN JET 180 KEIHIN

54531623180

Unavailable

26

MAIN JET 185 KEIHIN

54531623185

Unavailable

26

MAIN JET 190 KEIHIN

54531623190

Unavailable

27

ADJUSTMENT SCREW M 6X0,75

54531625000

Unavailable

28

HEXAGON NUT M 6X0,75 DIN0439

52031126000

Unavailable

29

ADJUSTMENT SCREW M5X30

54631219000

Unavailable

30

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

31

SPRING CAP

54631231000

Unavailable
