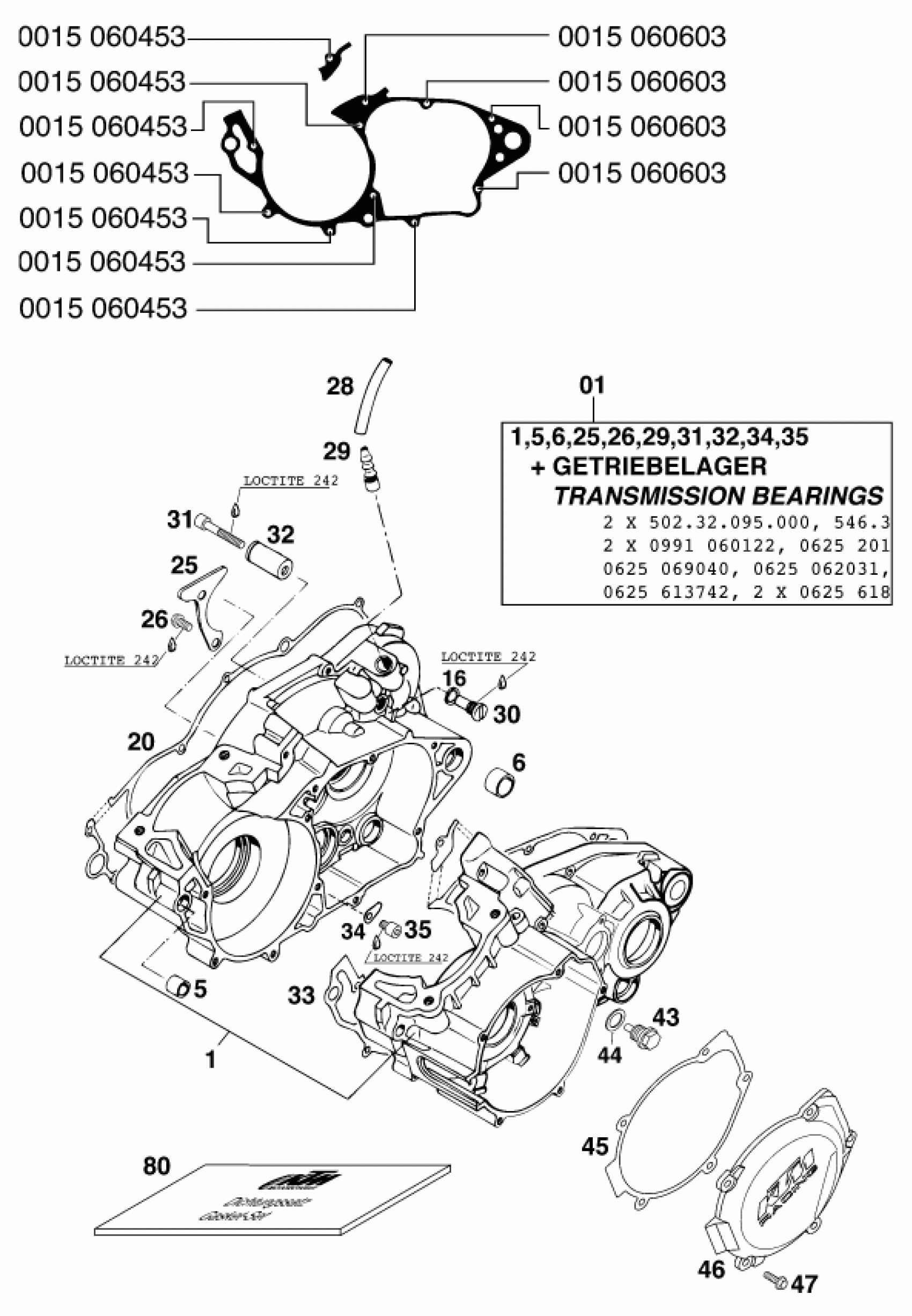

KTM 300 MXC 12lt '99 <1999> ENGINE CASE Diagram

#

Description
Price

1

* ENGINE CASE CPL.TRAN.BEAR'99

54730000044

Unavailable

5

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

6

DOWEL 19 X15,1X12

50130027000

Unavailable

16

CU-SEAL RING 9 X 13 X1

58038032110

Unavailable

20

CLUTCH COVER GASKET 0,5MM

54630025100

Unavailable

25

RETAINING PLATE

54630017000

Unavailable

26

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

28

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

29

BLEEDER FLANGE '94

54630022000

Unavailable

30

FLAT HEAD SCREW WITH PIN

54530001150

Unavailable

31

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

32

BUSHING PIN

54633018400

Unavailable

33

CASE GASKET 0,5MM 250-380'98

54630039200

Unavailable

34

RETAINING PLATE

54634049000

Unavailable

35

AH collar screw DIN 912 M6x8

0912060083

Unavailable

43

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

44

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

45

IGNITION COVER GASKET 1MM '99

54730040000

Unavailable

46

* IGNITION COVER 250-380 '99

54730002000

Unavailable

47

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

80

GASKET SET 250-380 '99-'01

54630099000

Unavailable
