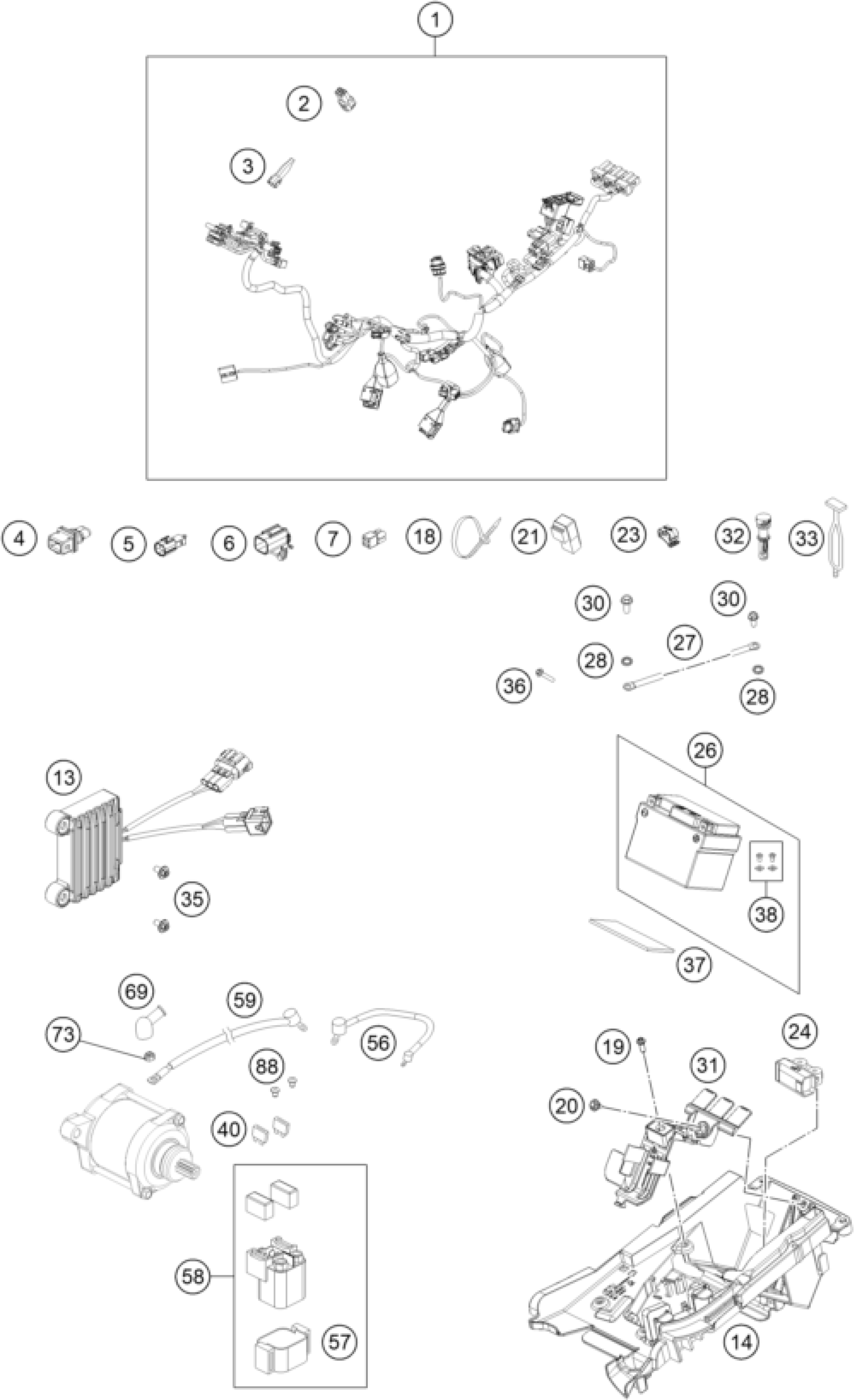

KTM 300 EXC SIX DAYS TPI 2022 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness

55711075100

Unavailable

13

VOLTAGE REGULATOR

79611034000

Unavailable

14

Battery compartment

55711155000

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

19

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

20

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

21

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

23

Line guide

83013026000

Unavailable

24

ROLLOVER SENSOR 05

61041088000

Unavailable

26

battery 12V/24Wh

79111053000

Unavailable

27

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

28

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

30

HH collar screw M5x12 TX30

0025050126

Unavailable

31

battery support

79711056000

Unavailable

32

Holder control unit

55641030000

Unavailable

33

RUBBER L=145MM

50303018000

Unavailable

35

HH collar screw M6x15 TX30

0024060156

Unavailable

36

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

37

METAMOLL 90X45X3MM 03

59003001099

Unavailable

40

Plug-in fuse, big 20A

58011109120

Unavailable

56

Batteriekabel

25111059050

Unavailable

58

Starter reley 12V 99

58211058000

Unavailable

59

Starter cable

55711059000

Unavailable

69

Protection cap for starter eng

77240099000

Unavailable

73

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

88

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

2

DUMMY PLUG 6-PIN

000700000BH01

Unavailable

3

Endconnector Can-Bus 2017

000700000AL001

Unavailable

4

Dummy plug LV 2p/sealed

000700000LV001

Unavailable

5

dummy plug magnetic pump 2 str

000700000PA001

Unavailable

6

Plug cap

000700000OU002

Unavailable

57

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable

7

Dummy plug 4-pins

000700000AN01

Unavailable

38

screw kit

79111053010

Unavailable
