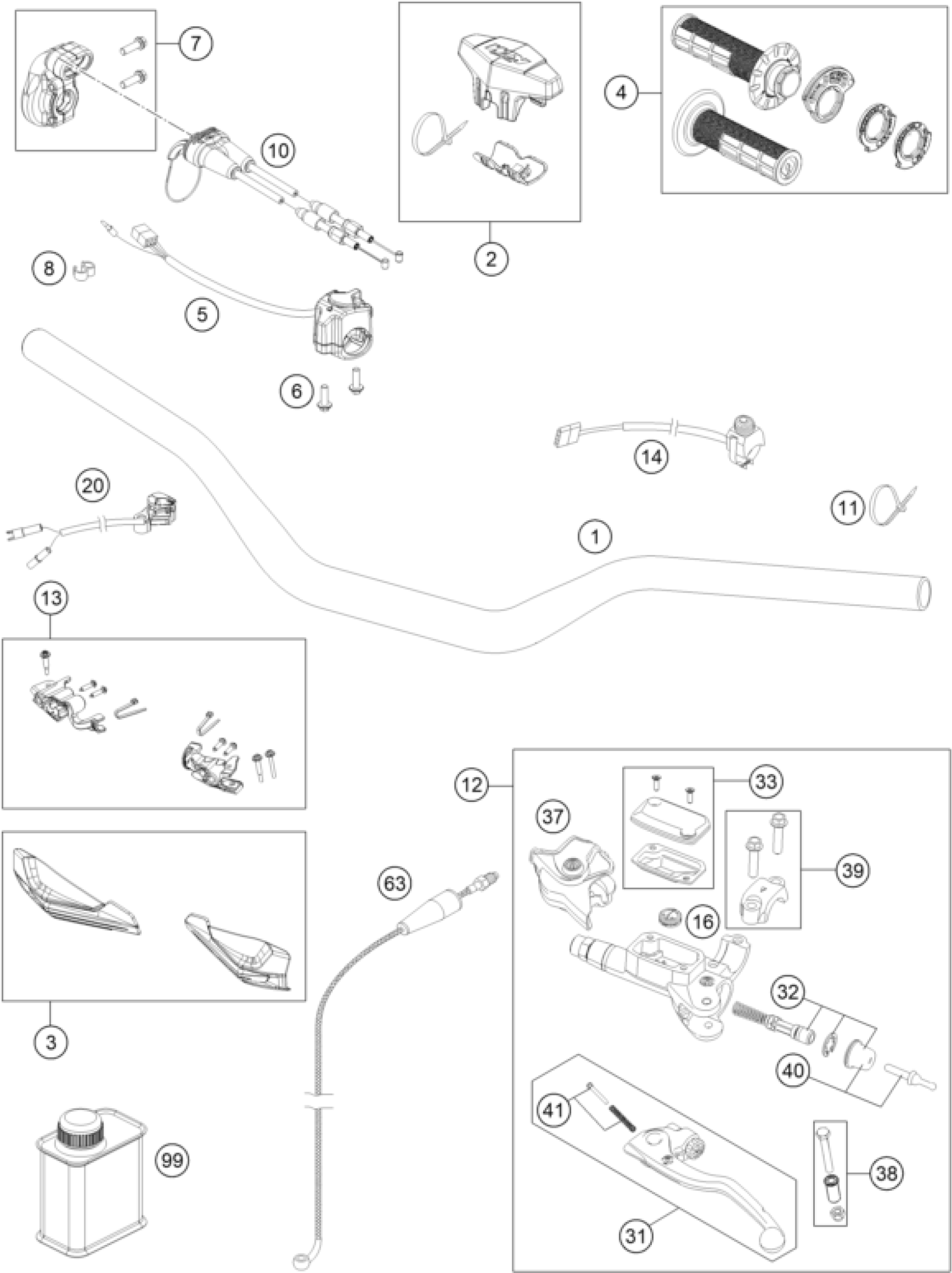

KTM 300 EXC SIX DAYS CKD 2023 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

Handlebar d=28mm Sixdays black

54802001500C1

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

3

Handguard kit

79602182044AB

Unavailable

4

GRIP SET

79002021100

Unavailable

5

LIGHT SWITCH

78111070000

Unavailable

6

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

7

Throttle control casing cpl.

79002010125

Unavailable

8

Line guide

83013026000

Unavailable

10

Throttle cable cmpl. 2T DI

55702191000

Unavailable

11

Cable tie 200/4.6mm black

44011076200

Unavailable

12

MASTER CYLINDER CPL.

54802030144

Unavailable

13

Handguard assembly kit

79602084044

Unavailable

14

STARTER BUTTON GREY 13

78111074000

Unavailable

16

VALVE

54802051000

Unavailable

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

20

MAP SWITCH

51539974100

Unavailable

31

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

32

REP. KIT PISTON 06

54802032000

Unavailable

37

PROTECTION CAP 06

54802037000

Unavailable

38

Lever screw cmpl. 06

54802038100

Unavailable

39

CLAMP CPL. 06

54802005100

Unavailable

40

Push rod cmpl.

54802046000

Unavailable

41

BOLT KPL.

54802052000

Unavailable

63

CLUTCH PIPE

79232063000

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
