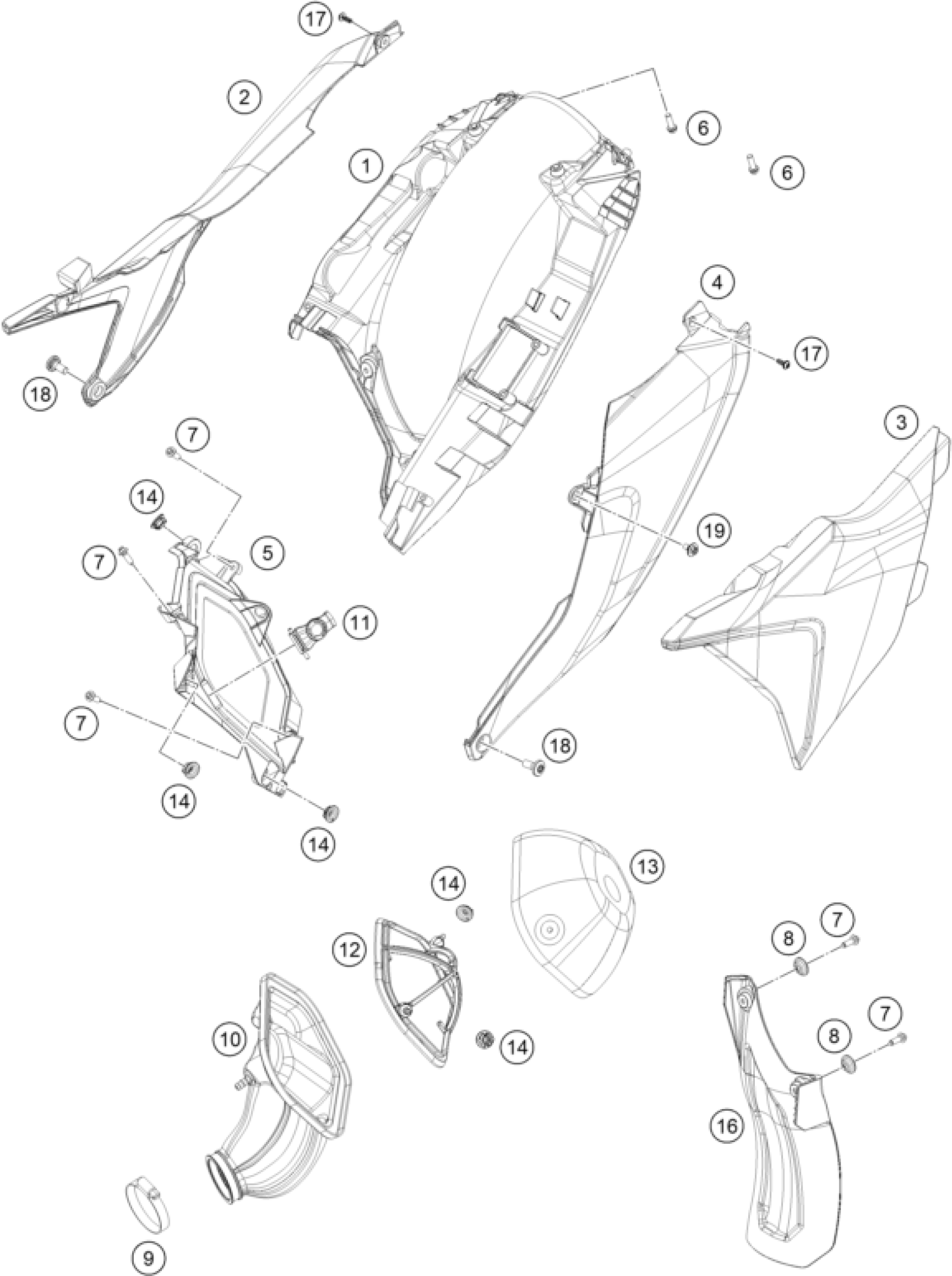

KTM 300 EXC CKD 2025 AIR FILTER Diagram

#

Description
Price

1

Air filter box, bottom part XC

A46006101000EB

Unavailable

2

Air filter panel

A46006004000EB

Unavailable

3

Air filter cover

A46006003000EB

Unavailable

4

Side fairing

A46006005000EB

Unavailable

5

Air filter box front part

A46006001010EB

Unavailable

6

HH collar screw M6x20 TX30

0025060206

Unavailable

7

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

8

Chain slider bushing

77304066150

Unavailable

9

HOSE CLAMP 45-65MM

78006027000

Unavailable

10

Air boot

A45006026000

Unavailable

11

Air filter holding bracket

A46006017000

Unavailable

12

Air filter support

A42006016000

Unavailable

13

Air filter

A46006015000

Unavailable

14

quick release rubber grommet

47106003160

Unavailable

16

Splash protection

A46004050000

Unavailable

17

EJOT PT screw K50x14

0081050141

Unavailable

18

Special screw M8X18 TORX45 SL

79003003000

Unavailable

19

special screw M6x12x3

83008000012

Unavailable
