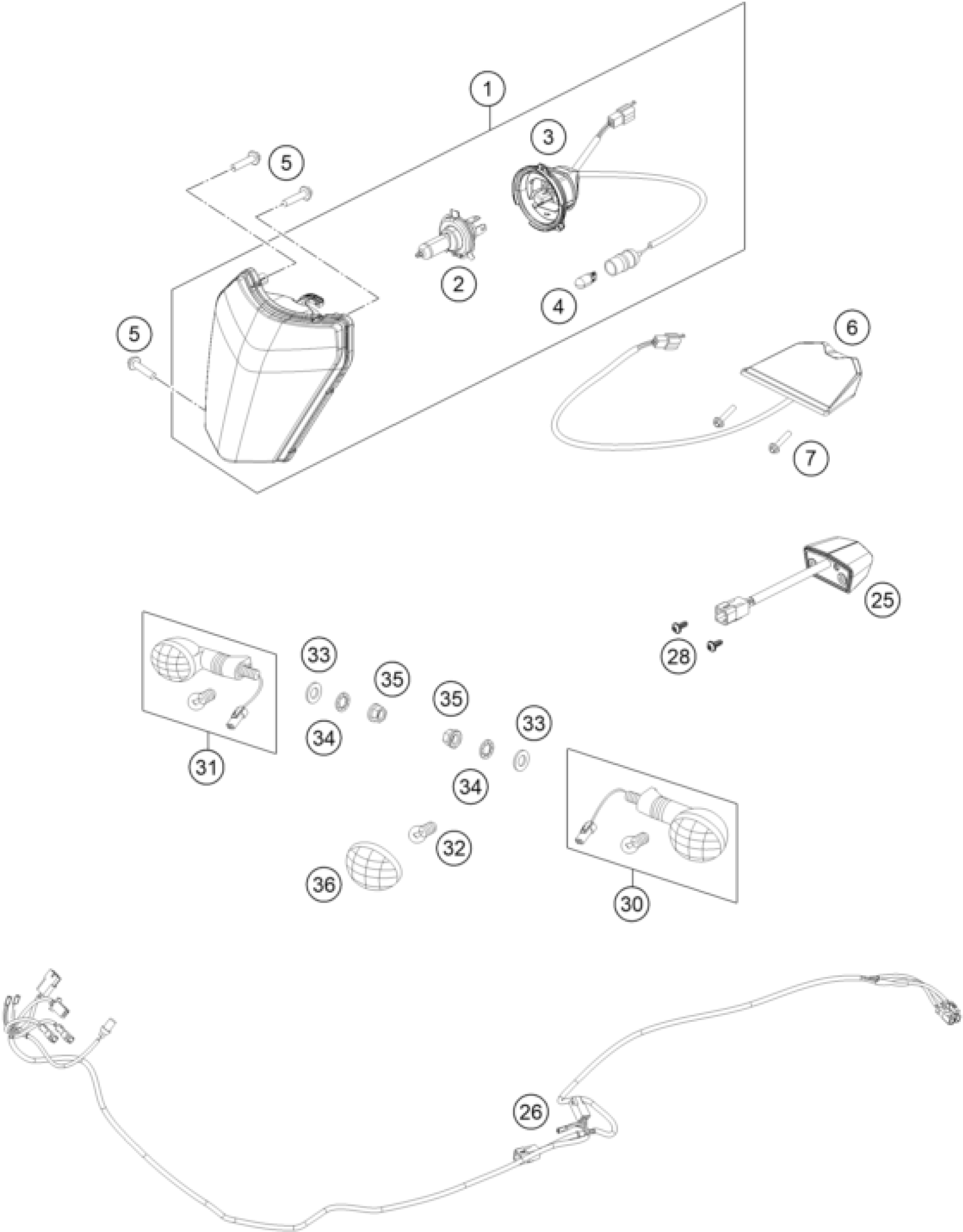

KTM 300 EXC CKD 2019 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT CPL. 2013

78114001000

Unavailable

2

BULB HS1 12V 35/35W WHITE

54611038012

Unavailable

3

LAMP BRACKET CPL. 2014

78114001050

Unavailable

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

5

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

6

REAR LIGHT

78114040000

Unavailable

7

EJOT PT SCREW K60X25-Z SW6

0017060255

Unavailable

25

license plate lighting

60314047000

Unavailable

26

TURN SIGNAL WIRING HARNESS

77711081100

Unavailable

28

EJOT PT screw K50x12

0081050121

Unavailable

30

FLASHER CPL. FR.L/S RE.R/S 09

54814025200

Unavailable

31

FLASHER CPL. FR.R/S RE.L/S 09

54814026200

Unavailable

32

BULB 12V 10W (BA15S)

44111015100

Unavailable

33

washer DIN 125 A 10.5

0125100003

Unavailable

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

FLASHER LENS L/S R/S 05

54814028000

Unavailable

30

Turn signal cmpl. rear/left

54814125200

Unavailable

31

Turn signal cmpl. rear/right

54814126200

Unavailable
