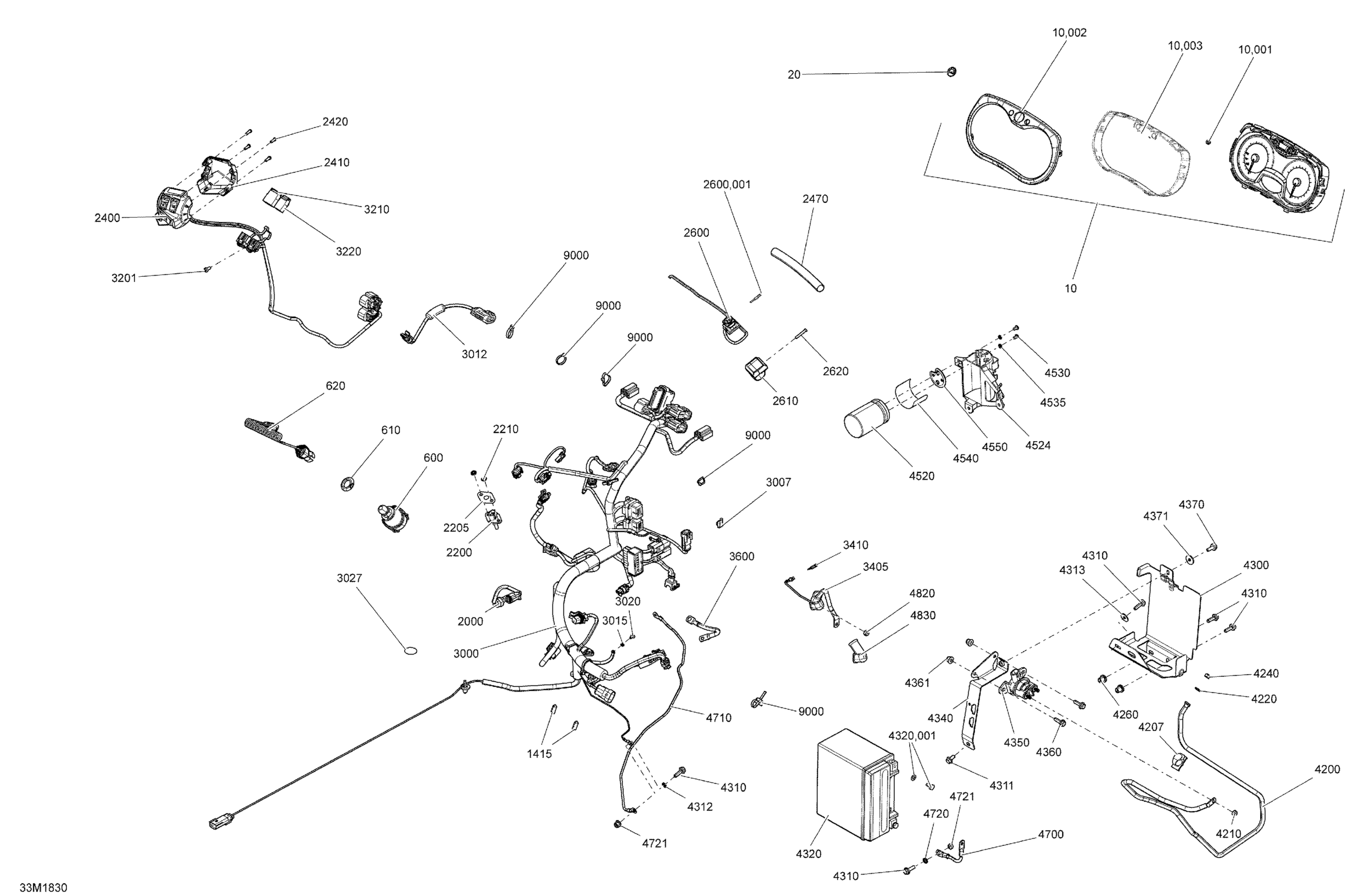

Ski-Doo TUNDRA 600HO E-TEC, 2018 Electrical System Tundra - 600 HO E-TEC - Package Xtreme Diagram

#

Description
Price

10

Speedometer | Includes 10 to 10c

515177914

Unavailable

10.001

Speedometer Button | XTP

415129355

Unavailable

10.002

Gauge Ring

415129370

$10.66

10.003

Lens | XTP

415129349

Unavailable

20

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

600

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

Unavailable

1415

Cap

515176141

Unavailable

2000

Temperature Sensor This part replaces 420664508.

420664509

Unavailable

2200

Air Temperature Sensor

515176366

$18.43

2205

Seal

508000769

$5.22

2210

Push Nut

389804300

$0.43

2400

LH Housing

515178198

$266.89

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

Unavailable

2470

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

2600

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

2600.001

Male Terminal

515175232

$1.49

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3000

Main Harness

515177982

$461.51

3007

Clip

710001038

Unavailable

3012

Wiring Harness

515177877

Unavailable

3015

Lock Washer 4 mm

234141601

Unavailable

3020

Screw-Torx Button Head M4 X 8

250000741

Unavailable

3027

Adhesive Patch

518325560

Unavailable

3201

Pan Screw Forming, 7500C

250000690

Unavailable

3210

Male Terminal Housing, 6 Circuits

515175662

Unavailable

3220

Male Terminal Housing, 4 Circuits

515175846

$8.57

3405

Fuse Battery Wire

515177576

Unavailable

3410

Fuse, 25 Amperes

278001443

Unavailable

3600

Ground Wire

515177289

Unavailable

4200

Battery/Starter Wire

515177208

Unavailable

4207

Clip

515177066

$4.00

4210

Elastic Stop Nut M6

232561414

Unavailable

4220

Flat Washer 6 mm

234061410

Unavailable

4240

Elastic Stop Nut M6

232561414

Unavailable

4260

Insert

293450275

Unavailable

4300

Battery Support

515177264

Unavailable

4310

Hex. Flange Screw M6 X 20

207662044

Unavailable

4311

Hex. Flange Screw M6 X 12

207661244

Unavailable

4312

External Serrated Lock Washer 6 mm

234461608

Unavailable

4313

Flat Washer

250200082

Unavailable

4320

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

4320.001

Battery Bolt Kit

250000282

$2.95

4340

Battery Strip

515177266

Unavailable

4350

Starter Relay

278003012

Unavailable

4360

Hex. Flange Screw M6 X 20

207662044

Unavailable

4361

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

4370

Hex. Flange Screw M6 X 16

207661644

Unavailable

4371

Flat Washer

224061201

Unavailable

4520

Capacitor

515177272

Unavailable

4524

Capacitor Support

515176607

$17.66

4530

Socket Head Screw M10 X 32

250000462

$2.06

4535

Lock washer | Quest XT 650.

250200026

$1.83

4540

Capacitor Decal

516008593

Unavailable

4550

Cap

515177193

$4.43

4700

Ground Wire

515176358

Unavailable

4710

Ground Wire

515178052

Unavailable

4720

Lock Washer Serrated M6

250200041

Unavailable

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

4820

Elastic Stop Nut M6

232561414

Unavailable

4830

Protector Cap

710000495

Unavailable

9000

Tie Wrap 142 mm

293750002

Unavailable

9000

Tie Wrap 368 mm

293750008

$0.85

9000

Tie-Rap 180 mm

414115200

$0.09

9000

Tie Wrap 94 mm | 4X4

293750001

$0.83

9000

Tie-Rap 173 mm

293750009

Unavailable
