Description

Price

10

Chaincase | Includes 10 to 10a

504153405

$321.51

10a

Plate | Not Shown

518325816

$73.82

100

Oil Seal

293200158

$12.52

110

Ball Bearing

293350115

$11.15

120

Circlip

504152576

$8.71

130

Shim

504152628

$8.40

140

Sprocket, 19 Teeth

504152031

$102.28

280

Spring Washer M10

504152784

$6.26

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

1100

Oil Seal

293200159

$13.12

1110

Ball Bearing

293350059

$30.74

1120

Circlip

504152582

$8.71

1130

Kit Sprocket This part replaces 504152581.

861805539

$149.97

1140

Circlip

504152572

$6.26

1150

O-Ring

293300122

$2.06

1160

Magnetic Cap

504152619

$23.05

1500

Drive Chain, 104 Links

504152629

$173.82

1510

Hex. Nut M10 X 1.5

232006414

$1.11

1520

Adjustment Screw

504152602

$9.62

1530

Magnetic Plug 1/8 - 27 NPTF

504152854

$8.95

1550

Bonded Washer

250200100

$1.74

1600

Tensioner chain

504153429

$13.77

1610

Slider Chain

504152739

$67.66

1640

Tensioner Axle

504152841

$14.65

1650

Circlip

504152282

$3.11

1700

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$324.58

1700a

Rotation Sensor

504152896

$35.35

1710

Tight Seal

293300130

$7.31

1720

Screw-Forming Hex.HD.FL.BZN

250000935

$2.06

1740a

Cap

504152860

$19.20

1740b

Male Connector

414580700

$3.38

1740c

Polyurethane Hose 10000Mm Long

219704410

$46.12

2010

Retaining Ring

504153886

$18.43

2020

Ball Bearing

293350059

$30.74

2030

O-Ring

293300122

$2.06

2040

Magnetic Cap

504152619

$23.05

2050

Circlip

504152572

$6.26

2500

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.89

2510

Hex. Flange Elastic Nut M8

233281414

$1.14

3000

Drive Axle Ass'y

504154054

$516.89

3200

Track Ass'y 16" X 154" X 2.50" | Includes 3200 to 3200b

504153396

$1,259.99

3200a

Track Guide | Track Width 16''

415129528

$3.12

3200b

Cleat

504152651

$8.22

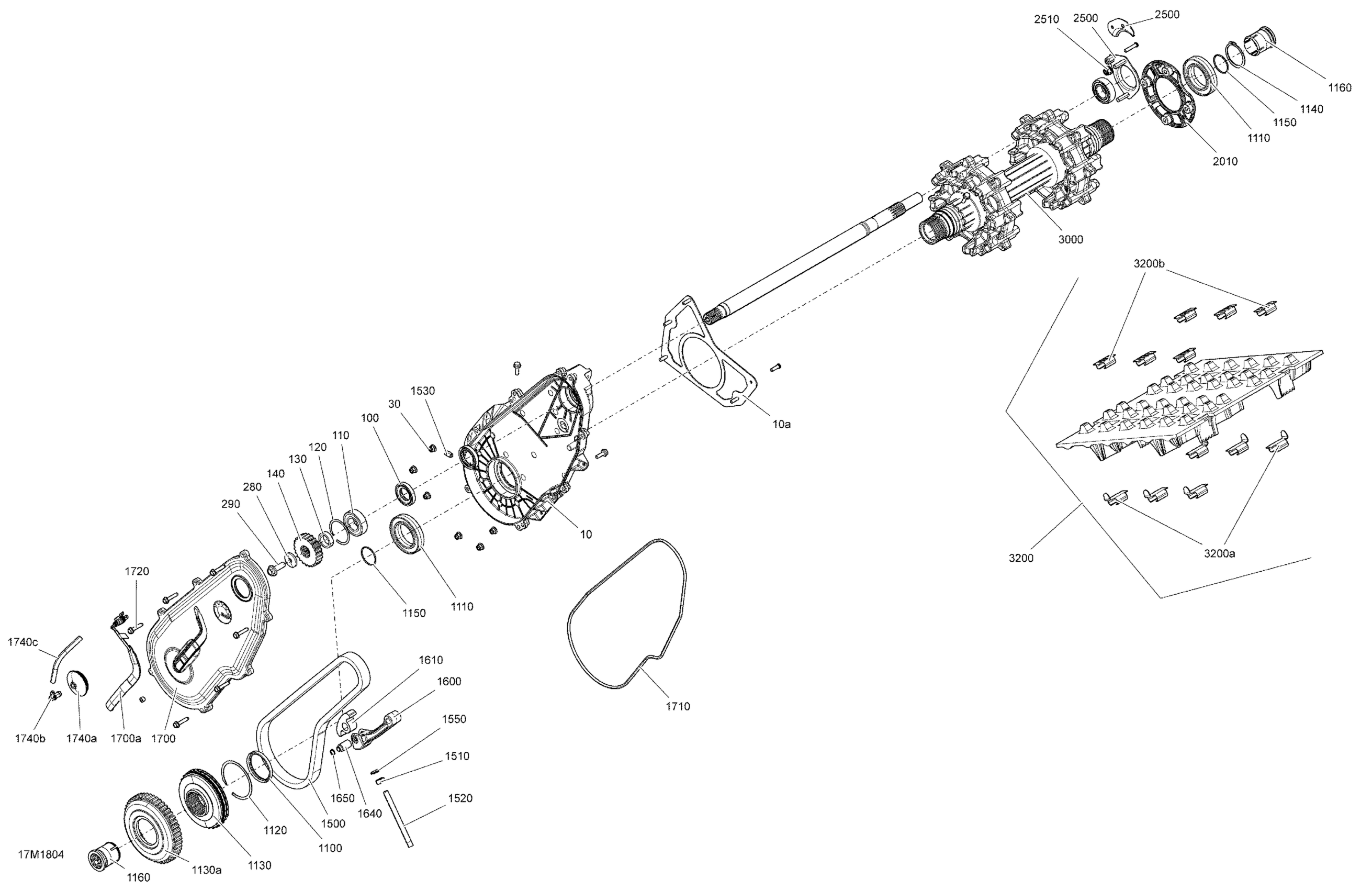

Ski-Doo TUNDRA 600HO E-TEC, 2018 Drive Tundra - 600 HO E-TEC - Package XTREME Diagram

Chaincase | Includes 10 to 10a

Plate | Not Shown

Oil Seal

Ball Bearing

Circlip

Shim

Sprocket, 19 Teeth

Spring Washer M10

Hex. Flange Screw M10 X 30, Scotch Grip

Oil Seal

Ball Bearing

Circlip

Kit Sprocket This part replaces 504152581.

Circlip

O-Ring

Magnetic Cap

Drive Chain, 104 Links

Hex. Nut M10 X 1.5

Adjustment Screw

Magnetic Plug 1/8 - 27 NPTF

Bonded Washer

Tensioner chain

Slider Chain

Tensioner Axle

Circlip

Chaincase Cover Ass'y | Includes 1700 to 1700c

Rotation Sensor

Tight Seal

Screw-Forming Hex.HD.FL.BZN

Cap

Male Connector

Polyurethane Hose 10000Mm Long

Retaining Ring

Ball Bearing

O-Ring

Magnetic Cap

Circlip

Bearing Housing Ass'y | Includes 2500 to 2500a

Hex. Flange Elastic Nut M8

Drive Axle Ass'y

Track Ass'y 16" X 154" X 2.50" | Includes 3200 to 3200b

Track Guide | Track Width 16''

Cleat
