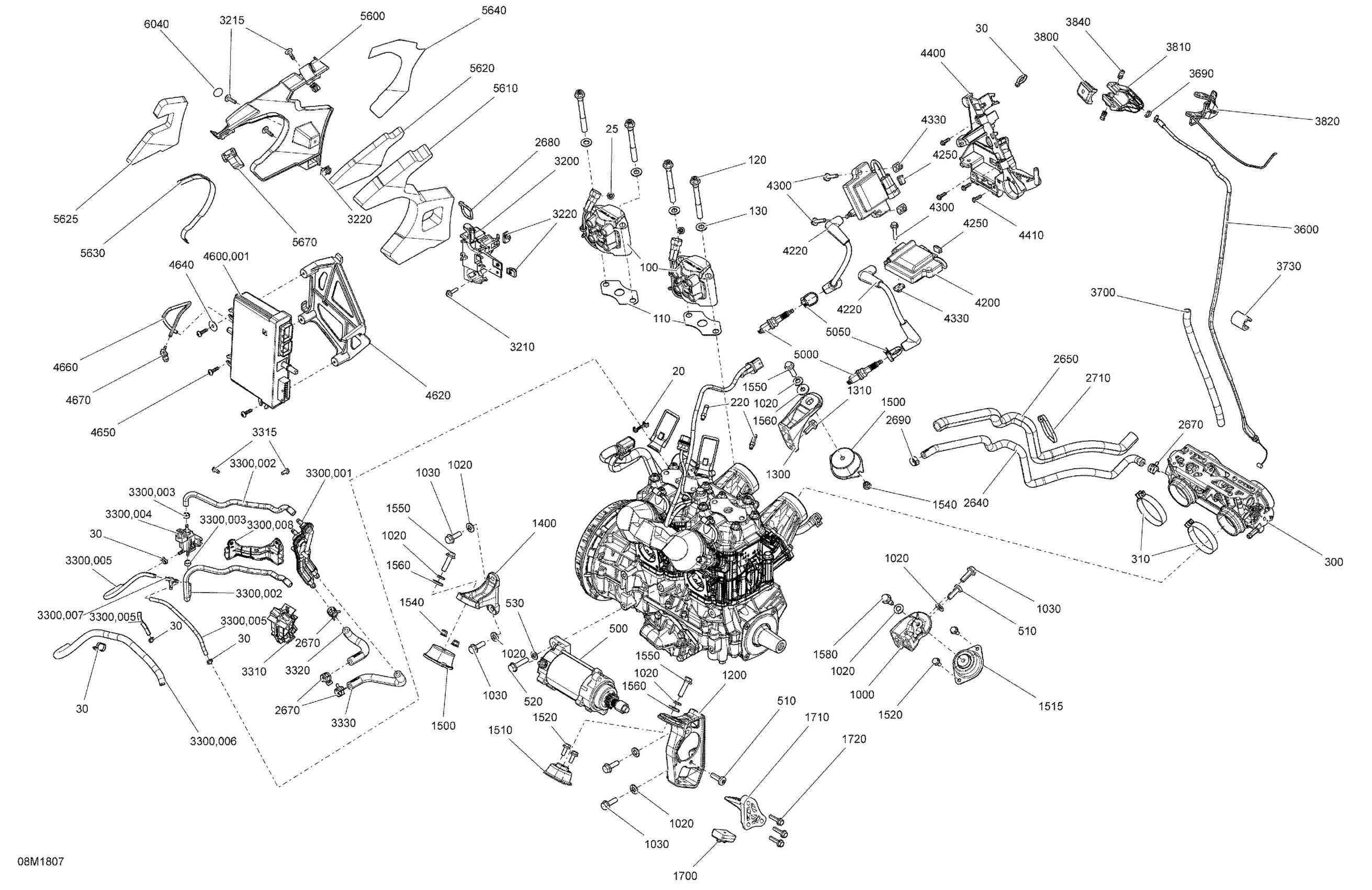

Ski-Doo TUNDRA 600HO E-TEC, 2018 Engine Tundra - 600 HO E-TEC Diagram

#

Description
Price

20

Locker

515177770

$2.14

25

Push Nut

732610072

Unavailable

30

Tie Wrap 94 mm | 4X4

293750001

$0.83

100

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

Unavailable

110

Gasket

420430930

$4.60

120

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

Unavailable

130

Flat Washer 10 mm

234001410

Unavailable

220

Hose Nipple

420924724

Unavailable

300

Throttle Body

420889201

$1,228.43

310

Gemi Clamp

293650158

$8.34

500

Starter

515178473

$319.49

510

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

520

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

530

Flat Washer With Teflon 8 mm

250200008

Unavailable

1000

Rear Support, PTO

512060478

$29.97

1020

Conical Spring Washer M8

250200146

Unavailable

1030

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

1200

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

1300

Rear Support, MAG

512060559

$29.97

1310

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

1400

Front Support, MAG

512060469

$31.51

1500

Rubber Mount

512060729

$69.97

1510

Rubber Mount

512060387

$42.28

1515

Rubber Mount

512060448

$42.28

1520

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

1540

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

1550

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

1560

Yellow, Washer

503183200

Unavailable

1580

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

1700

Stopper

512060627

$9.31

1710

Stopper Support

512060576

$28.43

1720

Hex. Flange Screw M6 X 25

207562544

$1.39

2640

Formed Hose, Output

512060740

Unavailable

2650

Tubing

513033412

Unavailable

2670

Norma Spring Clamp

293650214

$15.35

2680

Tie-Rap 180 mm

414115200

$0.09

2690

Oetiker Clamp

293650046

Unavailable

2710

Tie Wrap 368 mm

293750008

$0.85

3200

Solenoid Support

512060298

$12.52

3210

Hex.Flange Screw M5 X 20

207652044

$1.56

3215

Torx Screw M5 X 20

250000528

Unavailable

3220

Panel Nut M5 X 0.8

250000958

Unavailable

3300.001

Manifold

512060692

$43.05

3300.002

Polyurethane Hose 10000Mm Long

219704410

Unavailable

3300.003

Crimp Clamp

293650234

$5.22

3300.004

Solenoid Valve

270600005

$39.62

3300.005

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

3300.006

Was 409901700 Tubing (9 mm)

219704399

Unavailable

3300.007

T-Fitting

293710068

$6.59

3300.008

Hose Support

512060827

$2.06

3300.009

Spring | Not Shown

512060934

$81.51

3310

Manifold Support

512060769

$10.52

3315

Screw-Forming HEX.HD.FL.BZN

250000937

$2.06

3320

LH Formed Hose

512060695

$7.80

3330

RH Formed Hose

512060694

$7.80

3600

Throttle Cable

512060851

Unavailable

3690

Circlip

414274500

Unavailable

3700

Was 409901700 Tubing (9 mm)

219704399

Unavailable

3730

Protector

512060313

$9.31

3800

Upper Housing

512060859

Unavailable

3810

Lower Housing

512060860

Unavailable

3820

Handle Ass'y

512061250

$117.66

3840

Flange Screw

732601143

$4.02

4200

Ignition Coil

512060953

$129.97

4220

Ignition Cable, 177mm long

512061126

$27.66

4250

Clip

710000992

$4.00

4300

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

4330

Nut Welded, M6

293100003

Unavailable

4400

Ignition Coils Support

512060888

$10.52

4410

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

4600.001

Calibrated Module

512060780

$769.99

4620

Calibrated Module Support

512060858

$12.52

4640

Flat Washer

250200040

$1.82

4650

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

4660

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

4670

Male Connector

414814100

$2.18

5000

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

Unavailable

5050

Clamp

512060993

Unavailable

5600

Noise Shield

512060634

Unavailable

5610

Interior Noise Foam

512060343

Unavailable

5620

Upper Exterior Noise Foam

512060344

Unavailable

5625

Lower Exterior Noise Foam

512060665

Unavailable

5630

Heat Shield

512060574

Unavailable

5640

Heat Shield

512060666

Unavailable

5650

Torx Screw M5 X 20

250000528

Unavailable

5670

Velcro Strip

508000599

Unavailable

6040

Adhesive Patch

518325560

Unavailable
