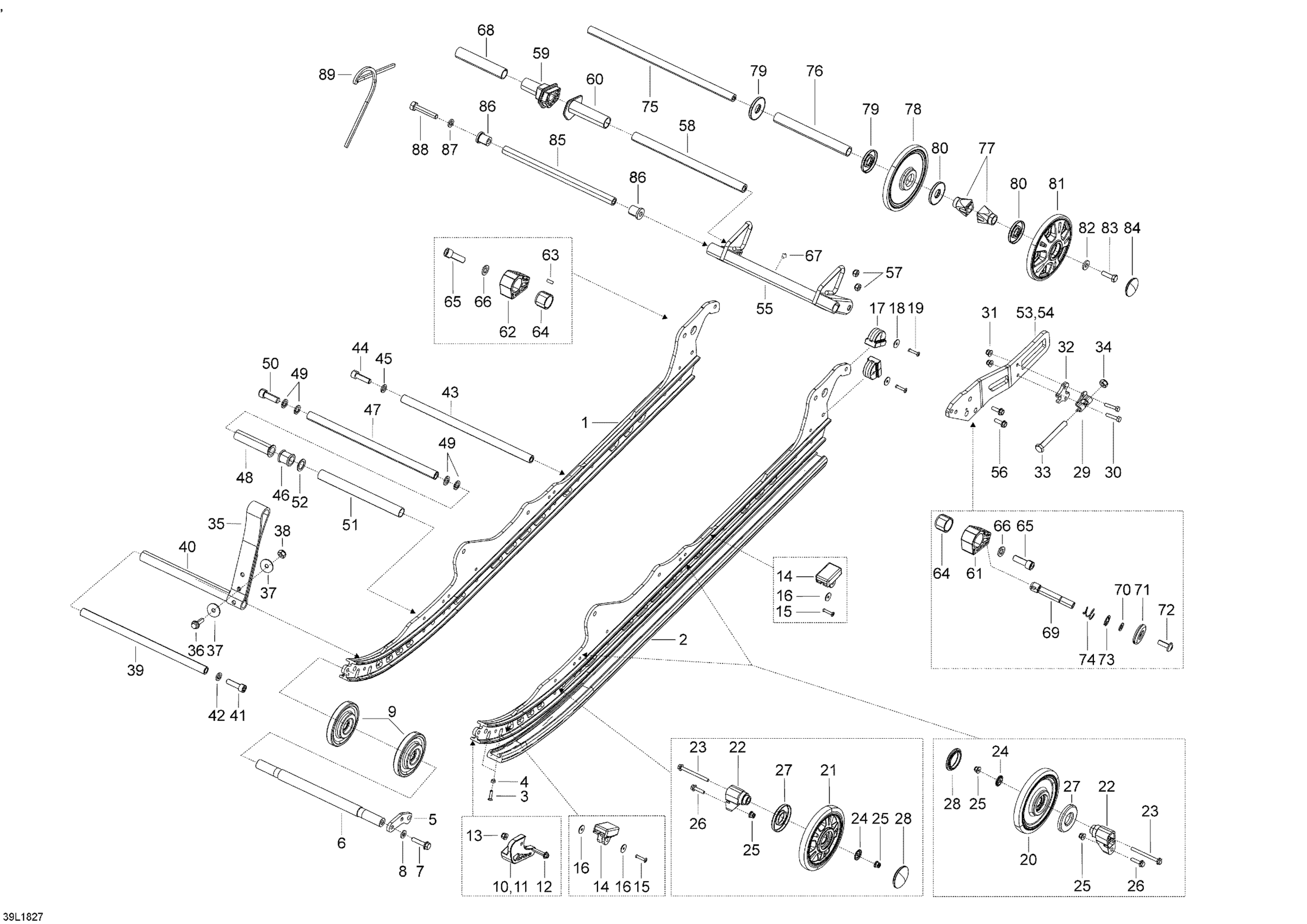

Ski-Doo SKANDIC 600 ACE, 2018 Rear Suspension - Lower Section Diagram

#

Description
Price

1

Runner

503194188

$230.74

2

Black Slider, 154"

503192618

$33.05

3

Phillips Screw M6 X 25

208562531

Unavailable

4

Elastic Stop Nut M6

232561434

$1.55

5

Plate

503192612

$11.45

6

Axle

503192643

$148.43

6

Front Wheel Shaft

503193053

$43.05

7

Hex. Flange Screw M8 X 35

250000986

$1.74

8

Washer

503189157

$3.20

9

Black, Wheel Ass'y, 100 mm

503192611

$32.28

10

RH Protector

503192610

$26.89

11

LH Protector

503192609

$26.89

12

Hex. Flange Screw M8 X 40

207684044

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

Unavailable

14

Rubber Stopper

503190576

Unavailable

15

Pop Rivet 3/16"

293150142

Unavailable

16

Washer

503191273

Unavailable

17

Rubber Stopper

503191291

Unavailable

18

Pop Rivet 3/16"

293150142

Unavailable

19

Washer

503191273

Unavailable

20

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

21

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

Unavailable

22

Casted Support

503193894

Unavailable

23

Hex. Flange Screw M6 X 70

207667056

$3.61

24

Wheel Cup M6

503191820

Unavailable

25

Hex. Flange Elastic Nut M6

233261466

Unavailable

26

Hex. Flange Screw M6 X 25

207662556

Unavailable

27

Labyrinth Seal

503190434

Unavailable

28

Black, Wheel Cap

503192771

Unavailable

29

Tensioner

503192583

$5.85

30

Hex. Cap Screw M6 X 30

207063054

$4.41

31

Hex. Flange Elastic Nut M6

233261466

Unavailable

32

Spacer

503193250

$13.95

33

Hex Screw M10 x 100

230100054

$5.29

34

Elastic Locking Nut M10

233601466

Unavailable

35

Stopper Strap

503192360

Unavailable

36

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

37

Flat Washer

224081301

$0.86

38

Hex. Flange Elastic Nut M8

233281414

Unavailable

39

Axle Strap

503192623

$61.51

40

Spacer

503192679

Unavailable

41

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

42

Washer

503189564

Unavailable

43

Axle Strap

503191418

Unavailable

44

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

45

Washer

503189564

Unavailable

46

Bushing

503189271

Unavailable

47

Shaft

503193967

Unavailable

48

Center Bushing

503191259

Unavailable

49

Washer

503189276

Unavailable

50

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

51

Spacer

503191421

$46.12

52

Washer

503189273

Unavailable

53

RH Rail Pivot

503193378

$83.82

53

Runner Pivot RH

503192893

$226.12

54

LH Rail Pivot

503193377

$83.82

54

Runner Pivot LH

503192892

$226.12

55

Welded Pivot | Includes 100c to 100c3

503191414

Unavailable

56

Hex. Flange Screw M8 X 25

207682534

Unavailable

57

Hex. Elastic Stop Nut M8

232581414

Unavailable

58

Cam Axle

503191711

Unavailable

59

RH Spring Cam

503191190

Unavailable

60

LH Spring Cam

503191668

Unavailable

61

LH Block

503192426

Unavailable

62

RH Block

503192427

Unavailable

63

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

64

Block Guide

503189488

Unavailable

65

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

66

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

67

Grease Fitting

408200700

Unavailable

68

Spacer

503191713

Unavailable

69

Rode

503192437

Unavailable

70

Flat Washer M5

234051410

Unavailable

71

Handle

503192438

Unavailable

72

Torx Screw M5 X 14

250000742

$1.20

73

Circlip

293370068

Unavailable

74

Compression Spring

503192436

Unavailable

75

Rear Axle

503191408

Unavailable

76

Spacer

503196316

Unavailable

76

Spacer

503193051

$15.35

77

Rear Wheel Spacer

503190428

$6.06

78

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

Unavailable

79

Labyrinth Seal

503190682

Unavailable

80

Labyrinth Seal

503190434

Unavailable

81

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

Unavailable

82

Washer

503190439

$5.82

83

Hex. Screw With Nylon

250000019

Unavailable

84

Black, Wheel Cap

503192771

Unavailable

85

Lower Shaft

503191390

Unavailable

86

Bushing

503189324

$11.17

87

Washer

503192496

Unavailable

88

Hex. Screw S.Grip M10 X 55

250000605

$6.18

89

Spring

503194624

Unavailable
