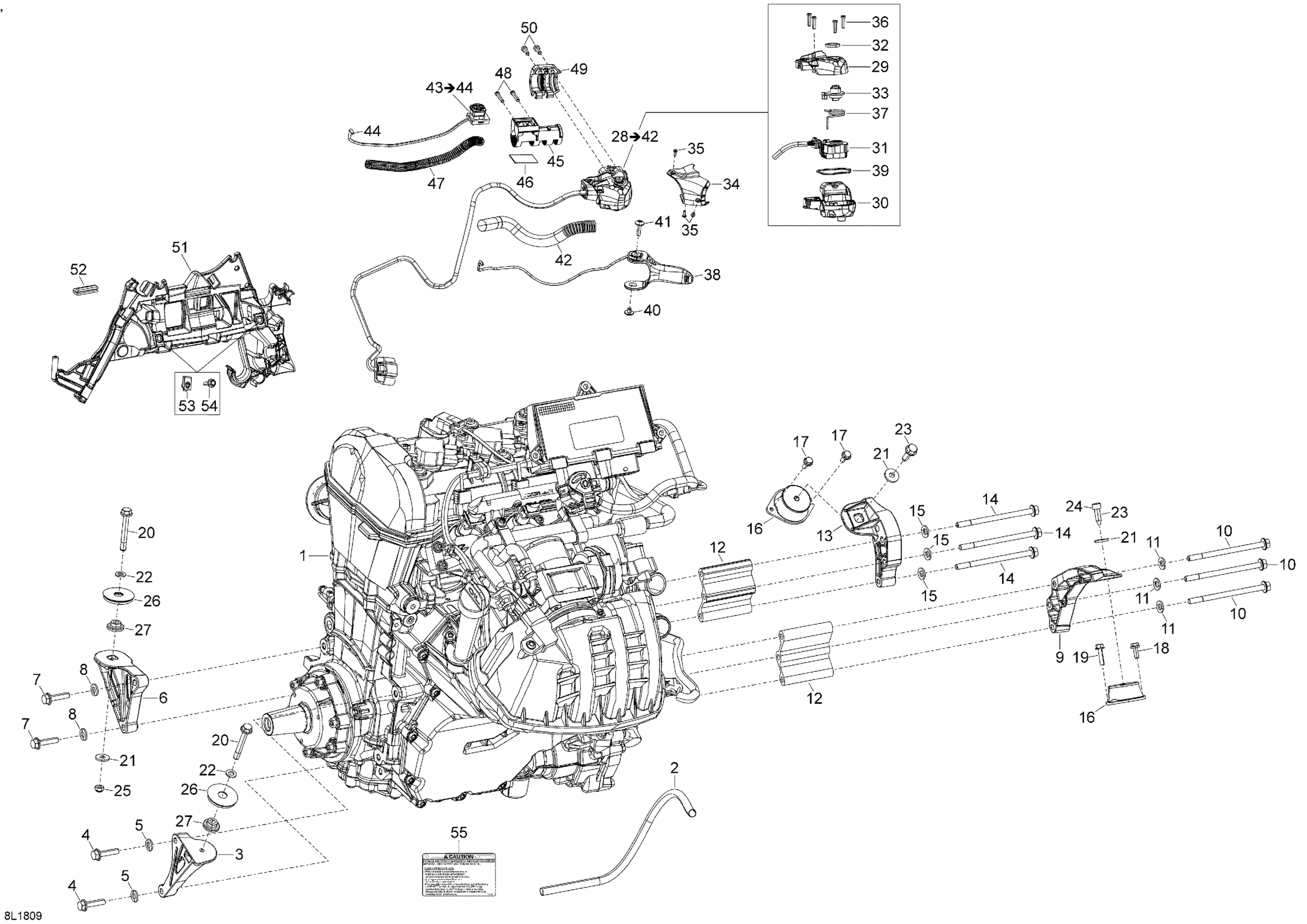

Ski-Doo SKANDIC 600 ACE, 2018 Engine Skandic - 600 ACE Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Protector Tube

512061067

$23.05

3

Rear Support PTO

512061139

$23.82

4

Hex. Flange Screw M8 X 35

250000986

$1.74

5

Conical Spring Washer M8

234281474

$1.25

6

Front Support PTO

512061140

$17.66

7

Hex. Flange Screw M8 X 35

250000986

$1.74

8

Conical Spring Washer M8

234281474

$1.25

9

Rear Support MAG

512061142

$27.66

10

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

11

Conical Spring Washer M8

250200157

$2.06

12

Shim

512060505

$42.28

13

Front Support MAG

512061141

$18.43

14

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

15

Conical Spring Washer M8

250200157

$2.06

16

Rubber Mount

512060729

$69.97

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

19

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

20

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

Unavailable

21

Yellow, Washer

503183200

Unavailable

22

Flat Washer With Teflon 8 mm

250200008

Unavailable

23

Cone Screw, M8 X 30

250000257

$1.72

25

Hex. Elastic Stop Nut M8

232581414

Unavailable

26

Stopper

512061203

$12.52

27

Spacer

512060285

$17.66

28

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$281.51

29

Handle Ass'y kit

415130047

$96.89

30

Cap

512060862

$11.57

31

Torx Screw M2.9 x 9.5

250000623

$3.11

32

Torx Screw

250000671

Unavailable

33

Screw

512060961

$10.52

34

Torx Screw M5 X 20

250000528

Unavailable

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

45

Switch Support

512061453

$8.38

46

Friction Tape

294000973

$8.97

47

Protector Tube

515177946

$4.22

48

Torx Screw #8-18

250000263

$1.02

49

Front Housing

512060987

$8.34

50

Torx Screw M5 X 14

250000632

$6.18

51

Module Support

512060994

$14.54

52

Trim 1000Mm Long

219704354

Unavailable

53

Panel Nut M5 X 0.8

250000958

Unavailable

54

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

Unavailable

55

Caution Decal, Oil Level

516005521

Unavailable

71

Tie-Rap 180 mm

414115200

$0.09

72

Tie Wrap 368 mm

293750008

$0.85

73

Tie-Rap 180 mm

414115200

$0.09

74

O-Ring

293300123

$1.00

75

Tie-Rap 180 mm

414115200

$0.09

76

Tie-Rap 180 mm

414115200

$0.09

77

Tie Wrap 142 mm

293750002

Unavailable

78

Tie Wrap 368 mm

293750008

$0.85
