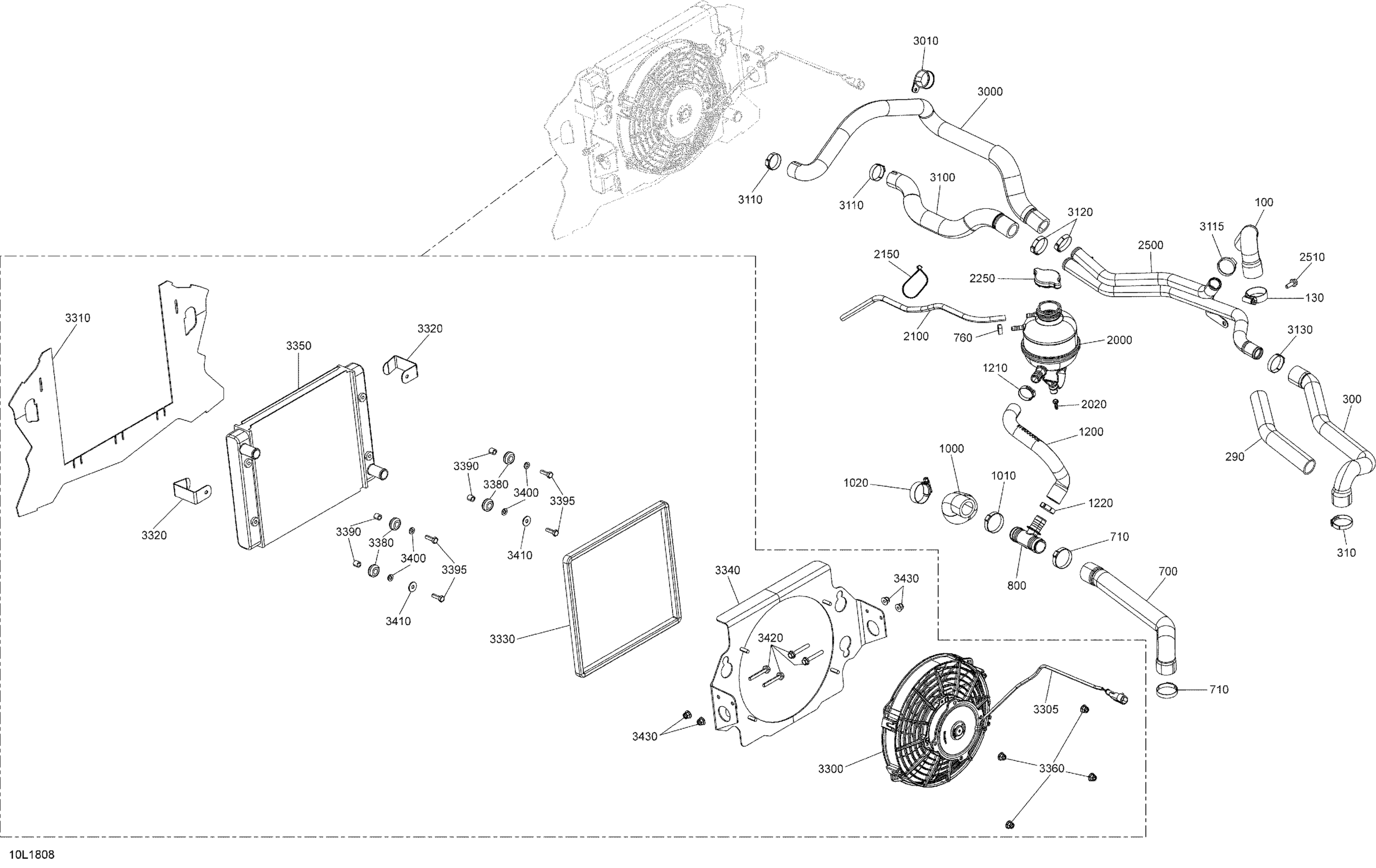

Ski-Doo SKANDIC 600 ACE, 2018 Cooling 600 ACE Diagram

#

Description
Price

100

Engine Outlet Hose

509000932

$17.66

130

Aba Gear Clamp, 26-38 MM

509000443

$5.68

290

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

300

Hose

509001061

Unavailable

310

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

700

Radiator Return Hose

509001062

$14.54

710

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

760

Oetiker Gear Clamp

293650025

$2.46

800

T-Fitting

509000372

$7.87

1000

Engine Inlet Hose

509001060

Unavailable

1010

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

1020

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1200

Filling Hose

509001063

$13.58

1210

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

1220

Crimp Clamp

293650099

Unavailable

2000

Cooling Tank

509000881

$86.89

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

2100

Hose

509000775

$9.86

2150

Tie-Rap 180 mm

414115200

$0.09

2250

Radiator Pressure Cap

509000180

Unavailable

2489

Clip

710000992

$4.00

2500

Water Pipe

509000800

$105.35

2510

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

3000

Air Radiator Hose

509001000

$95.35

3010

Clamp With Rubber D=30

605627008

$19.20

3100

Frint Air Radiator Hose

509001001

$13.58

3110

Crimp Clamp

293650099

Unavailable

3115

Oetiker Clamp

293650141

$4.28

3120

Clamp

509000735

Unavailable

3130

Clamp

509000735

Unavailable

3300

Cooling Fan

509000838

$213.05

3310

Air Deflector

509001002

Unavailable

3310

Air Deflector

509001003

$45.35

3320

Deflector Clip

509000703

$39.97

3330

Insulation

509000718

$59.20

20

Clinch Stud M6 X 20

250300027

$1.92

3340

Radiator support | Includes 3340 to 3340a

509000791

$91.51

3350

Radiator

509000980

$214.58

3360

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

3380

Grommet

709000582

$4.38

3390

Bushing

605453745

$11.52

3395

Torx Screw M6 X 20

250000722

Unavailable

3410

Flat Washer 6 mm

234062410

$0.64

3420

Hex. Flange Screw M6 X 40

207664044

$2.18

3430

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
