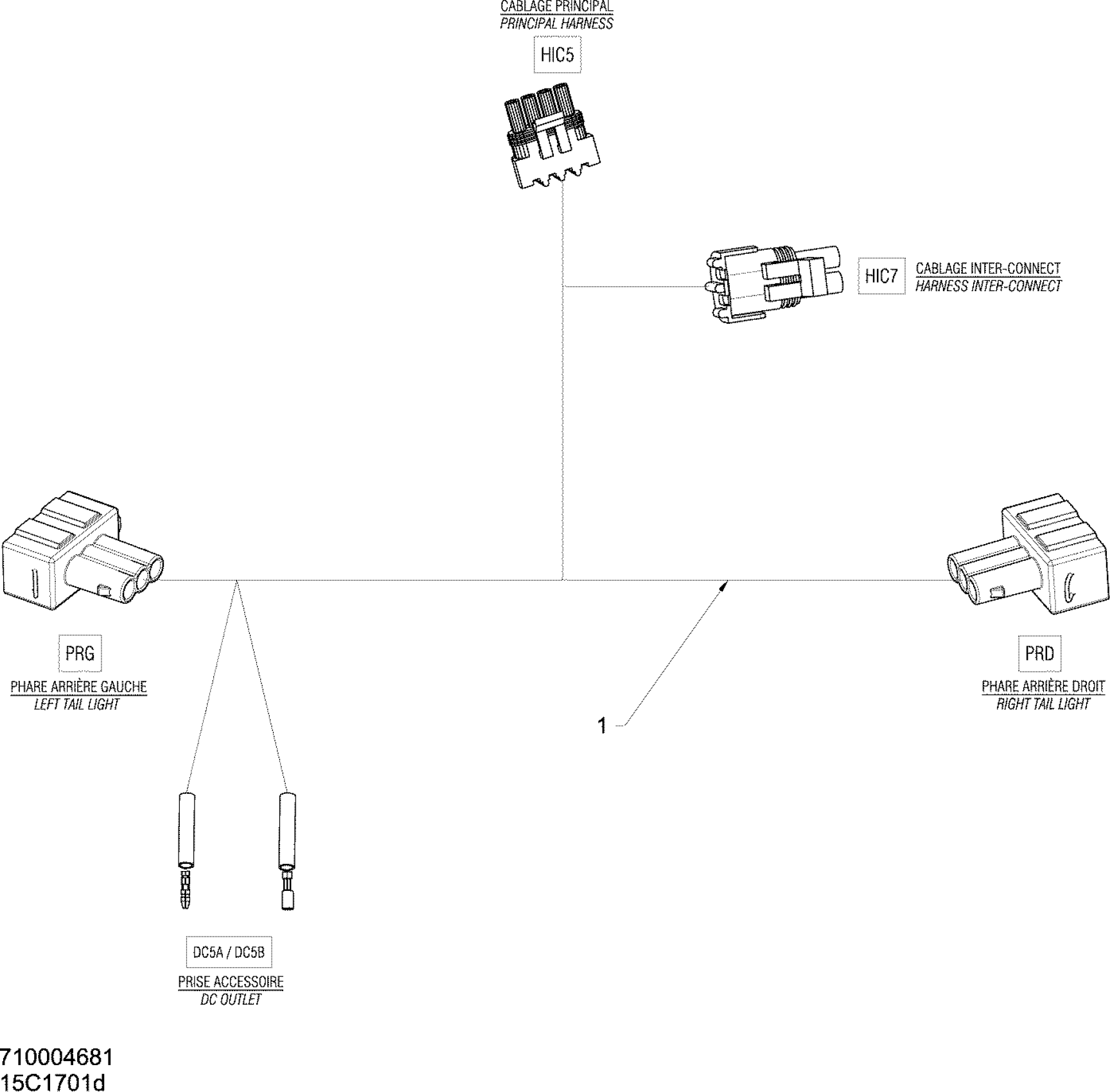

Can-Am Commander MAX 800R EFI, 2018 Electrical Harness Commander 800R EFI Diagram

#

Description

Price

Rear Harness

710004681

Unavailable

DC5A

Insulated Sheath

278001008

Unavailable

DC5A

Female Terminal

278002261

Unavailable

DC5B

Insulated Sheath

278001007

Unavailable

DC5B

Female Terminal

710000421

Unavailable

HIC5

Male Housing, 4 Circuits

278000395

Unavailable

HIC5

Wire Seal

278001065

Unavailable

HIC5

Female Terminal

278000223

Unavailable

HIC7

Male Connector, 2 Circuits

278000220

$11.02

HIC7

Wire Seal

278000218

Unavailable

HIC7

Female Terminal

409007300

$0.36

PRD

Connector, 3 Positions

710003167

Unavailable

PRD

Seal

415128501

Unavailable

PRD

Female Terminal

278000998

$3.48

PRG

Connector, 3 Positions

710003167

Unavailable

PRG

Seal

415128501

Unavailable

PRG

Female Terminal

278000998

$3.48
