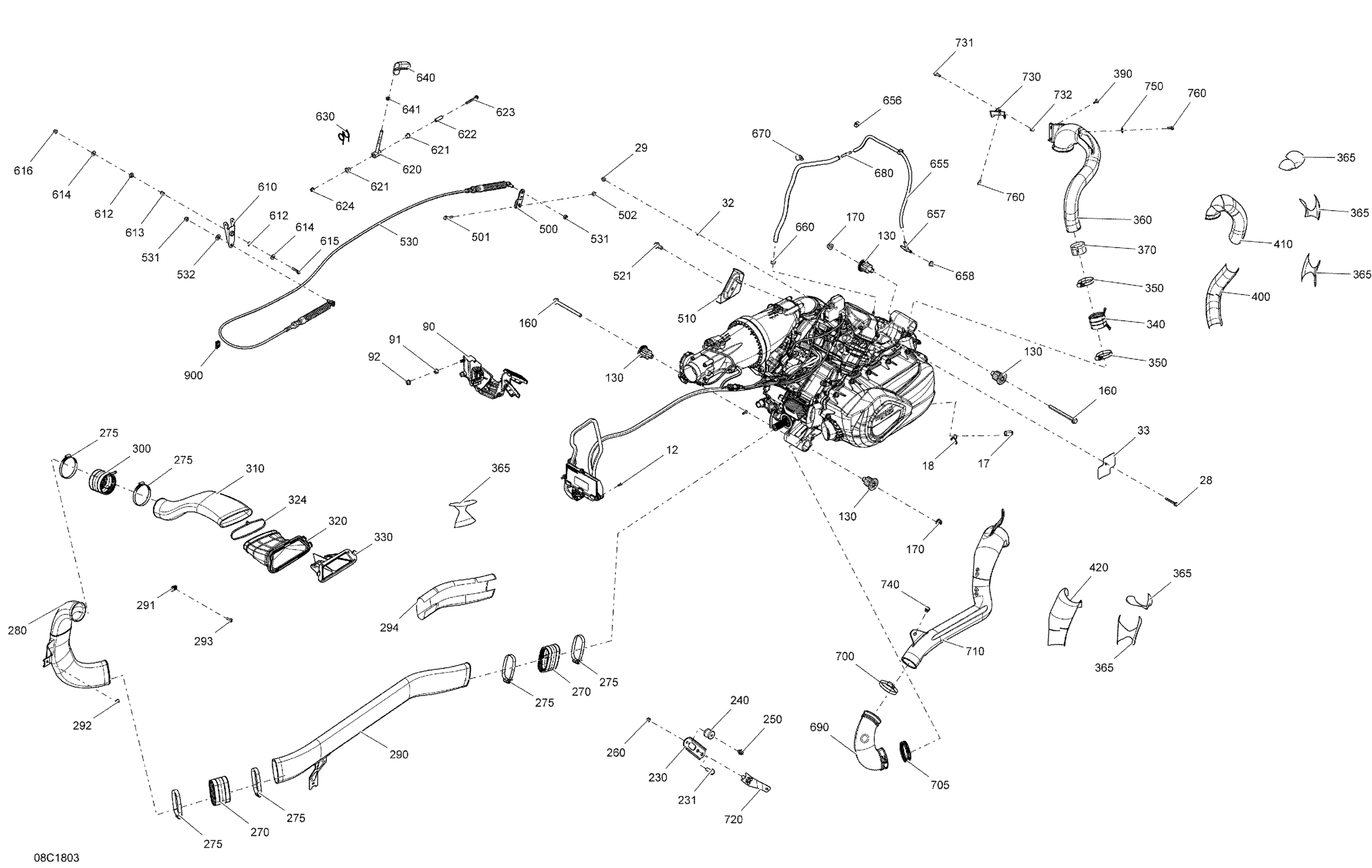

Can-Am Commander MAX 800R EFI, 2018 Engine Commander MAX - 800 EFI Diagram

#

Description
Price

12

Torx Screw K50 X 16

250000720

$1.39

17

Plug

707001185

Unavailable

18

Retainer Clip

707800506

Unavailable

28

Hex. Flange Screw M6 X 50

207665044

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

32

External Serrated Lock Washer 6 mm

234461608

Unavailable

33

Insulator Pad

710000073

Unavailable

90

Accelerator Pedal

707001166

$281.51

91

Bushing

707000848

$1.08

92

Hex. Flange Nut M8

233081416

Unavailable

130

Anti Vibration Buffer

707001170

$23.05

160

Hex. Flange Screw M10 X 125

230602546

Unavailable

170

Hex. Flange Elastic Nut M10

233201436

Unavailable

230

Upper Engine Bracket

707000707

$5.54

231

Hex. Flange Screw M10 X 25

207602544

Unavailable

240

Rubber Isolator

707000949

Unavailable

250

Flange Screw M8 x 10, Scotch Grip

207581046

Unavailable

260

Hex. Elastic Stop Nut M8

232581414

Unavailable

270

Flexibale Adaptor

707002585

Unavailable

270

Flexibale Adaptor

707002585

Unavailable

275

Norma Clamp

293650091

Unavailable

280

Air Inlet

707001339

$16.89

290

Air Inlet

707001228

$50.74

291

Panel Nut M6 X 1.0

250100198

Unavailable

292

Flat Washer

250200082

Unavailable

293

Torx Screw M6 X 20

250000722

Unavailable

294

Reflector

707001346

$27.66

300

Flexibale Adaptor

707002585

Unavailable

310

Primary Air Intake

707000909

$23.05

320

Adaptor

707000908

$36.89

325

Tie Wrap 368 mm

293750008

$0.85

330

CVT Filter

707001344

$14.75

340

Adaptor

707001274

Unavailable

350

Norma Gear Clamp

293650118

Unavailable

360

CVT Outlet

707001243

$64.58

365

Reflective Sheet

707000991

$9.29

370

Reflector

707000988

$4.98

390

Screw M4 X 16

250000725

Unavailable

400

Reflector

707001284

$7.69

410

Reflector

707001360

$7.69

420

Reflector

707001286

$7.69

500

Lever

707000911

Unavailable

501

Hex. Flange Screw M6 X 35

207663544

$0.74

502

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

510

Cable Support | Engine 800

707000921

$15.22

521

Hex. Flange Screw M10 X 25

207602544

Unavailable

530

Shifting Cable

707001283

$69.20

531

Hex. Elastic Stop Nut M8

232581414

Unavailable

532

Flat Washer 10 mm

234001410

Unavailable

610

Lower Lever Arm

707000828

$16.89

612

Flanged Bushing

707000847

$1.00

613

Bushing

707000801

$2.48

614

Flat Washer 6 mm

234062410

$0.64

615

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

616

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

620

Upper Lever Arm

707000711

$36.89

621

Flanged Bushing

707000869

$2.20

622

Bushing

707001376

$4.22

623

Hex. Flange Screw M6 X 50

207665044

Unavailable

624

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

630

Lever Arm Spring

707000750

$2.75

640

Lever Handle

707000284

$18.43

641

Hex. Jam Nut M8

232180491

Unavailable

655

Polyurethane Hose 10000Mm Long

219704410

Unavailable

656

Clip

414227300

$1.45

657

Y-Fitting

293710059

Unavailable

658

Grommet

293720029

Unavailable

660

Spring Clamp

414415200

$0.83

670

Open Clamp

518321570

Unavailable

680

Straight Fitting

293710039

Unavailable

690

Front Adaptor

707001229

$23.05

700

Norma Gear Clamp

293650118

Unavailable

705

Norma Clamp

293650091

Unavailable

710

CVT Outlet

707001230

$46.12

720

Front Support

707001231

$14.37

730

Rear Support

707001232

$8.46

731

Hex. Flange Screw M6 X 20

207662044

Unavailable

732

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

740

Tuflok Plastic Rivet

293150230

Unavailable

750

Flat Washer 6 mm

234062410

$0.64

760

Hex. Flange Screw M6 X 16

210261650

$1.22

900

Clip Tie-Rap

710002899

Unavailable
