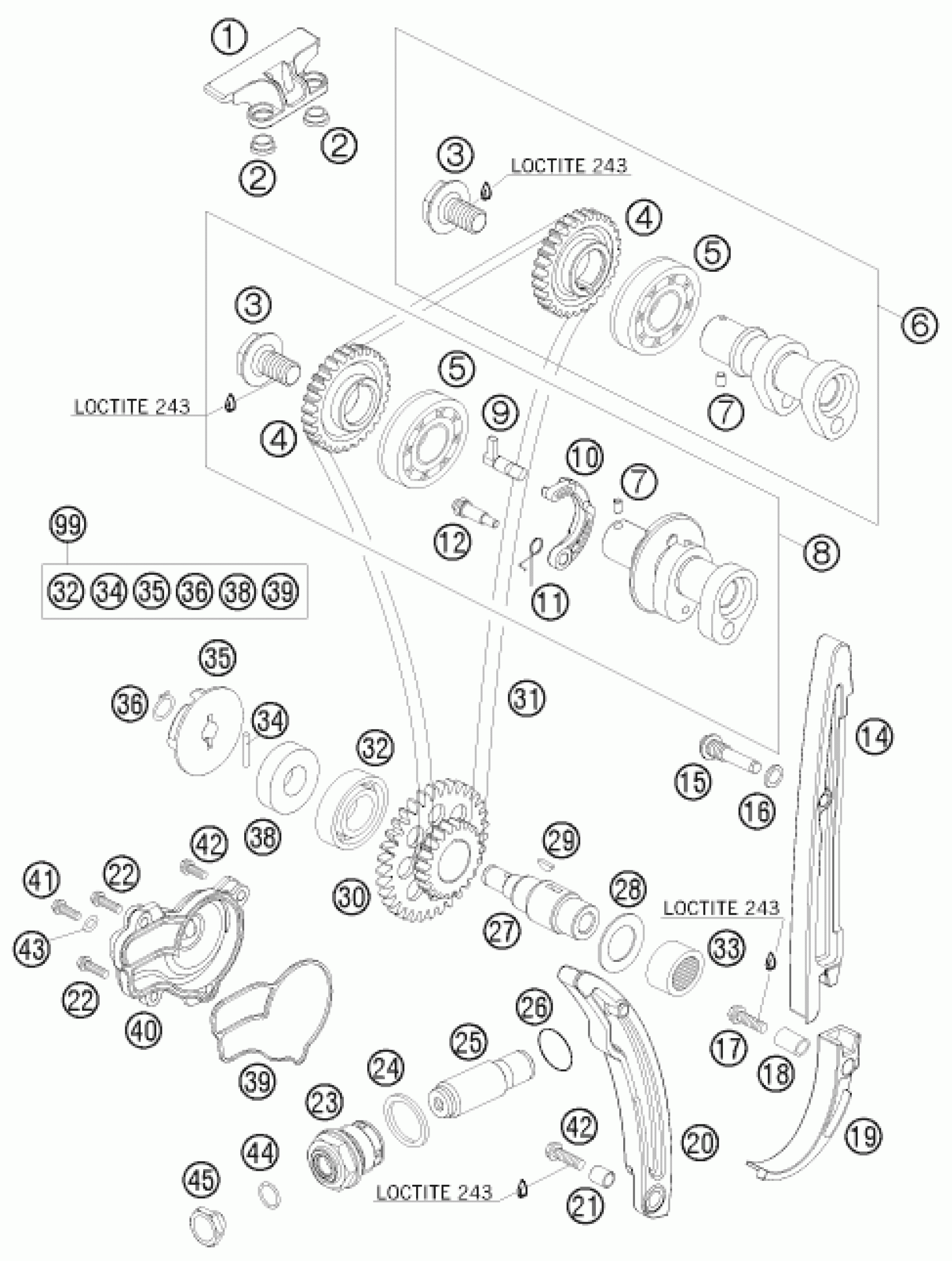

KTM 250 XCF-W SIX DAYS 2011 TIMING DRIVE Diagram

#

Description
Price

44

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

45

HOLDING BOLT

77336008010

Unavailable

1

TIMING CHAIN GUIDE TOP 05

77036004000

Unavailable

2

SPACER BUSHING GUIDE RAIL ´05

77036004050

Unavailable

3

CAMSHAFT GEAR SCREW 08

77036012100

Unavailable

4

CAMSHAFT GEAR

77036011300

Unavailable

5

BALL BEARING 6004 NR C3 ´05

0625060043

Unavailable

6

CAMSHAFT INTAKE 2009

77036109244

Unavailable

7

NEEDLE ROOLER DIN5402 NRB 4X6

0402040600

Unavailable

8

CAMSHAFT EXHAUST

77036110644

Unavailable

9

AUTO DECOMPRESSION SHAFT

77036015100

Unavailable

10

AUTO DECO WEIGHT

77036016100

Unavailable

11

SPRING FOR AUTO DECOMPR. 05

77036017000

Unavailable

12

BEARING PIN AUTODECO

77036019100

Unavailable

14

TIMING CHAIN GUIDE 05

77036001000

Unavailable

15

BUSHING SCREW 06

77036001160

Unavailable

16

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

17

HH collar screw M6x25 TX30

0025060256

Unavailable

18

SPACER BUSHING 6,1X8,2X13,1

59036001050

Unavailable

19

SECURING PROTECTION ´05

77036005000

Unavailable

20

TIMING CHAIN TENSIONER ´05

77036002000

Unavailable

21

SPACER BUSHING 6.1X8.2X9.1 05

77036001050

Unavailable

22

HH collar screw M6x40 TX30

0025060406

Unavailable

23

CHAIN ADJUSTER HOLDING BOLT

78036008100

Unavailable

24

CU SEAL-RING DIN7603 A24X29X2

0603242920

Unavailable

25

CHAIN ADJUSTER HYD. 05

77036003000

Unavailable

26

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

27

TIMING VALVE JACKSHAFT 08

77036072100

Unavailable

28

STOP DISK 18,2X30X1 05

77036073000

Unavailable

29

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

30

TIMING VALVE TWIN WHEEL

77036076200

Unavailable

31

TIMING CHAIN 108 ROLLS

77036013100

Unavailable

32

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

33

NEEDLE BEAR.HK1812 18/24/12 05

0618182412

Unavailable

34

Needle roll.DIN5402 NRB 3X17.8

0402031780

Unavailable

35

WATER PUMP ROTOR 05

77035055000

Unavailable

36

CIRCLIP DIN0471-10X1

0471100010

Unavailable

38

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

39

MOLDED RING WATER PUMP 05

77035053000

Unavailable

40

WATER PUMP COVER 05

77035052000

Unavailable

41

HH collar screw M6x30 TX30

0025060306

Unavailable

42

HH collar screw M6x20 TX30

0025060206

Unavailable

43

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

99

WATER PUMP REP. KIT 06-13

77035055010

Unavailable
