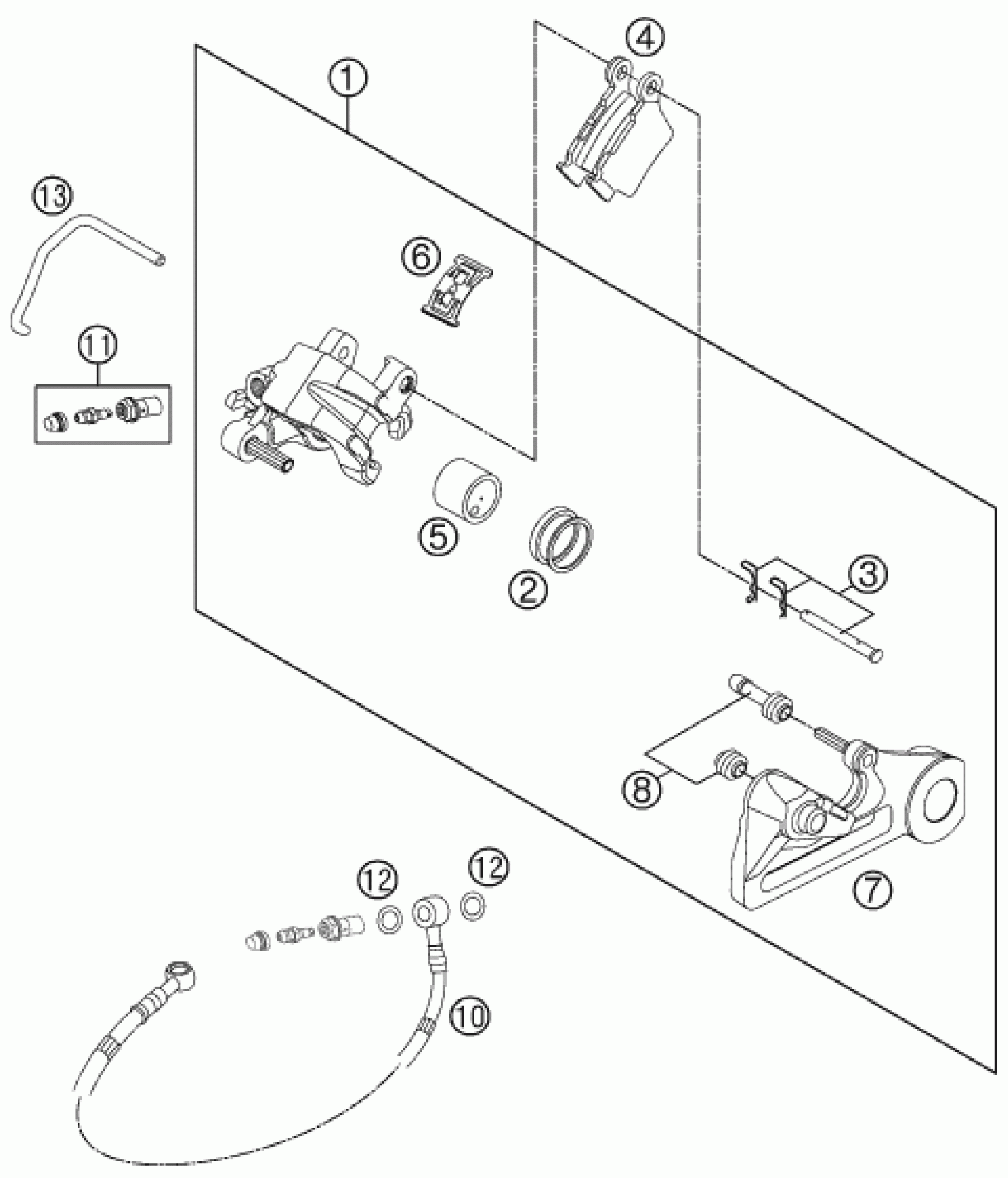

KTM 250 XCF-W SIX DAYS 2011 REAR BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CAL. RE. - WITHOUT PADS

54813080101

Unavailable

2

REPAIR KIT SEALING RINGS 26MM

50313081200

Unavailable

3

Bolt set for brake caliper 03

54813082000

Unavailable

4

BRAKE PAD SET REAR TOYO

54813090300

Unavailable

5

BRAKE PISTON 26MM 2003

54813083000

Unavailable

6

Retaining spring set 2003

54813018000

Unavailable

7

BRAKE CALIPER SUPPORT REAR

54813075000

Unavailable

8

CUP SET SHORT

54613218000

Unavailable

10

BRAKE HOSE REAR 655MM 03

54813070000

Unavailable

11

BLEEDER SCREW CPL. 05

62513020000

Unavailable

12

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

13

BRAKE PAD RETAINING PIN

50313082200

Unavailable
