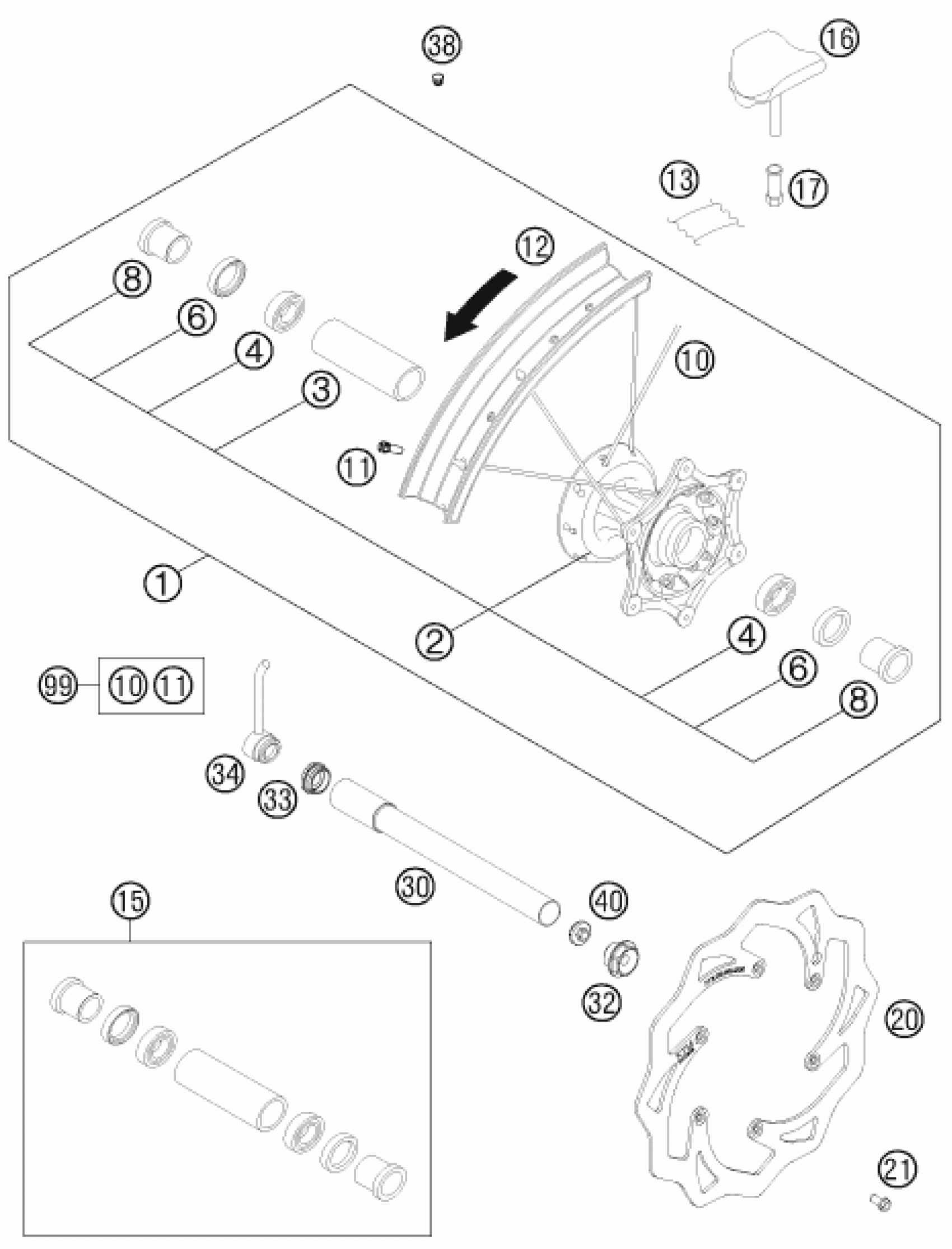

KTM 250 XCF-W SIX DAYS 2011 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL.1,6X21''EXC.10

7800900124430

Unavailable

2

FRONT WHEEL HUB CPL.

78009010144

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

8

SPACER BUSHING F. FR. WHEEL 08

78009012000

Unavailable

10

SPOKE M4,5x226-21'' 08

78009174226

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

Unavailable

12

RIM FRONT 1,6X21'' EXCEL AL7

7800907000030

Unavailable

13

Tube protector 21"

50309073000

Unavailable

15

FRONT WHEEL REP. KIT

78009015000

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

17

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

20

BRAKE DISC FRONT 260 MM 08

77309060300

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

30

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

Unavailable

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

33

PLUG BUSHING WS=27 03

54809081050

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

40

AUXILIARY SCREW FRONT 06

54809081070

Unavailable

34

FRONT AXLE PULL 26MM 04

54809081060

Unavailable

99

SPOKE KIT FRONT ''21''

00050000905

Unavailable
