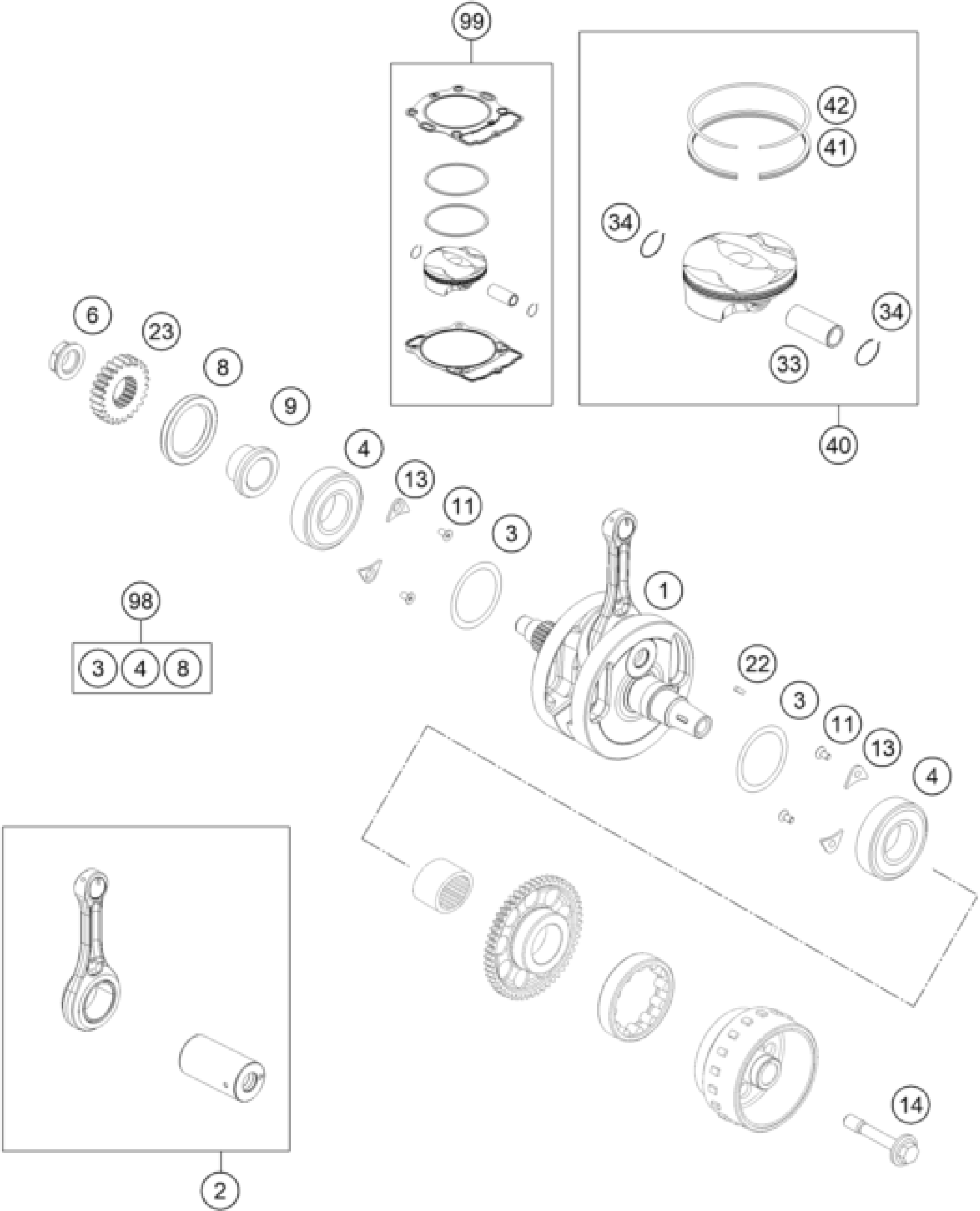

KTM 250 XCF-W 2016 CRANKSHAFT, PISTON Diagram

#

Description
Price

4

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

Unavailable

6

NUT PRIMARY WHEEL

77230029000

Unavailable

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

Unavailable

1

CRANKSHAFT CPL.

77730118000

Unavailable

2

CONNECTING ROD REPAIR SET

77730015144

Unavailable

3

THRUST WASHER 988ST 32X0,1

0988324510

Unavailable

3

THRUST WASHER 988ST 32X0,15

0988324515

Unavailable

3

THRUST WASHER 988ST 32X0,30

0988324530

Unavailable

9

SPACER BUSHING PRIMARY GEAR

77232022000

Unavailable

11

hex lobe countersunc screw M5x

0019050106S

Unavailable

13

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

14

FLYWHEEL SCREW

77339010100

Unavailable

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

23

PRIMARY GEAR 24T.

77232023024

Unavailable

33

PISTON PIN

77730033200

Unavailable

34

CIRCLIP 16X1.4 MM

77730074000

Unavailable

40

PISTON I CPL. 250

77730007100 I

Unavailable

40

PISTON II CPL. 250

77730007100 II

Unavailable

41

SCRAPER RING 250

77730032000

Unavailable

42

COMPRESSIONRING 250

77730030000

Unavailable

98

CRANKSHAFT REP.KIT 250/350EXCF

00050002317

Unavailable

99

PISTON KIT GR.I 250 SX-F13-14

00050000222

Unavailable

99

PISTON KIT GR.II 250 SX-F 13

00050000223

Unavailable
