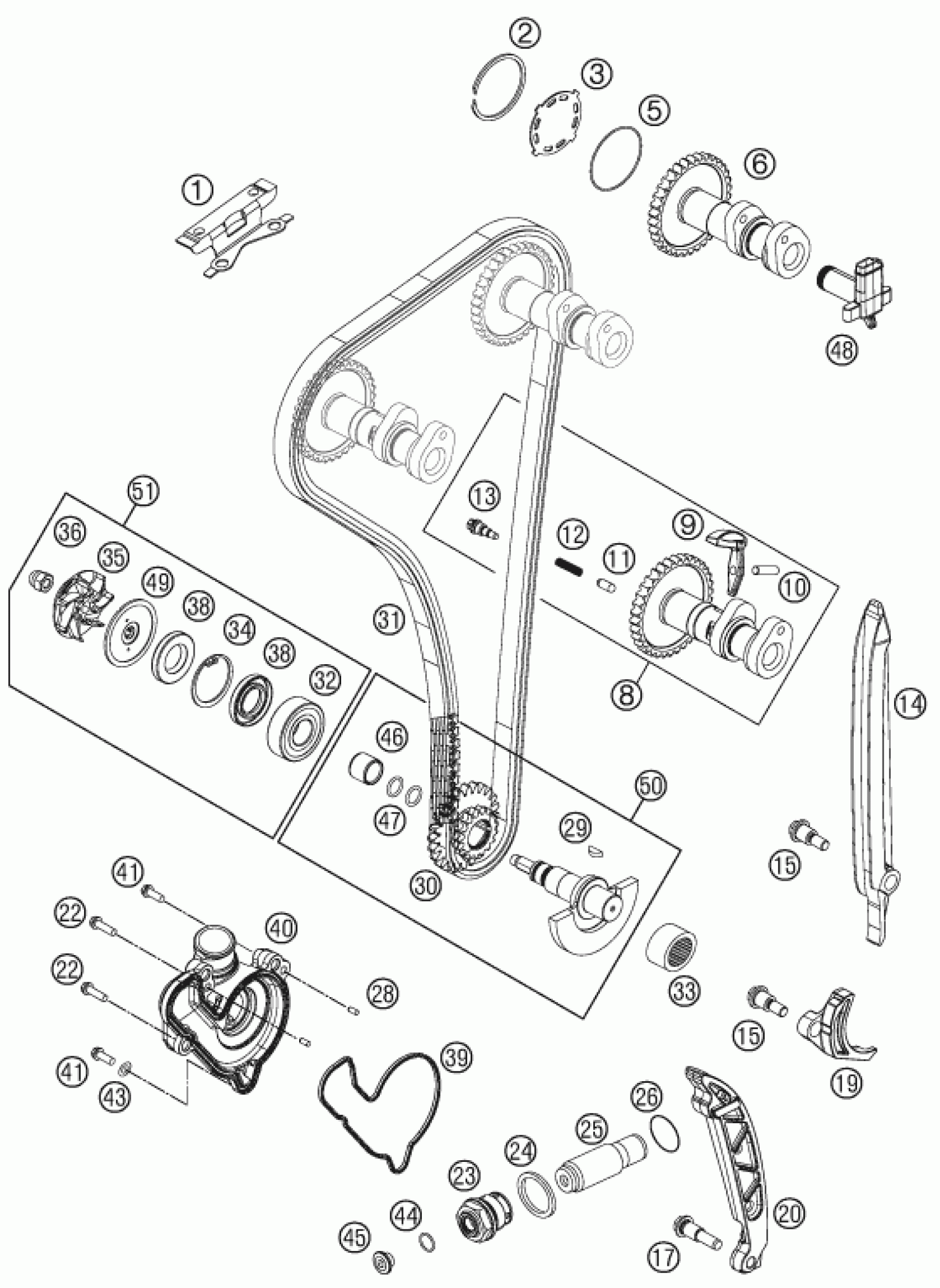

KTM 250 XCF-W 2014 TIMING DRIVE Diagram

#

Description
Price

1

TIMING CHAIN GUIDE TOP

79236004000

Unavailable

2

COPPER WASHER SB42

0472042150

Unavailable

3

BREATHER PLATE

77736082000

Unavailable

5

O-RING 40,00X1,00 VITON

0770400010

Unavailable

6

CAMSHAFT INTAKE

77736109000

Unavailable

8

CAMSHAFT EXHAUST CPL.

77736110044

Unavailable

9

DECOMPRESSION LEVER CPL.

77736016000

Unavailable

10

NEEDLE ROLLER NRB 5X18,8 G2

0402051880

Unavailable

11

DECO SPRING PIN L=10,6 07

77336016055

Unavailable

12

SPRING FOR AUTO DECOMPR.

77336017030

Unavailable

14

TIMING CHAIN GUIDE

77236001000

Unavailable

13

DECO SCREW PLUG

77336017050

Unavailable

15

BUSHING SCREW M6

77236001160

Unavailable

17

BUSHING SCREW M8

77236002160

Unavailable

19

SECURING PROTECTION

77236005000

Unavailable

20

TENSIONING RAIL

77236002000

Unavailable

22

HH collar screw M6x40 TX30

0025060406

Unavailable

23

HOLDING BOLT M24X1,5

77336008000

Unavailable

24

CU SEAL-RING DIN7603 A24X29X2

0603242920

Unavailable

25

CHAIN ADJUSTER HYD. 05

77036003000

Unavailable

26

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

28

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

29

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

30

TIMING VALVE TWIN WHEEL

77236076000

Unavailable

31

TIMING CHAIN

77236013000

Unavailable

32

BALL BEARING 6202 C0 2

0625062022

Unavailable

33

NEEDLE BEARING NK16/16

77230058000

Unavailable

34

CIRCLIP 30X1,2

0472300120

Unavailable

35

WATER PUMP ROTOR

81235055020

Unavailable

36

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

38

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

Unavailable

39

WATER PUMP COVER GASKET

77735053000

Unavailable

40

WATERPUMP COVER

77735052000

Unavailable

41

HH collar screw M6x25 TX30

0025060256

Unavailable

43

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

44

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

45

threaded plug

77236080100

Unavailable

46

water pump wear bushing

77236072020

Unavailable

47

O-RING 9x1,5 V80 SH

07700900151

Unavailable

48

ANGLE PIECE F. BREATHER SYSTEM

77236081000

Unavailable

49

DISC WATER PUMP

81235055110

Unavailable

50

BALANCER SHAFT CPL.

77536072033

Unavailable

51

WATER PUMP REP. KIT 11-14

77235055010

Unavailable
