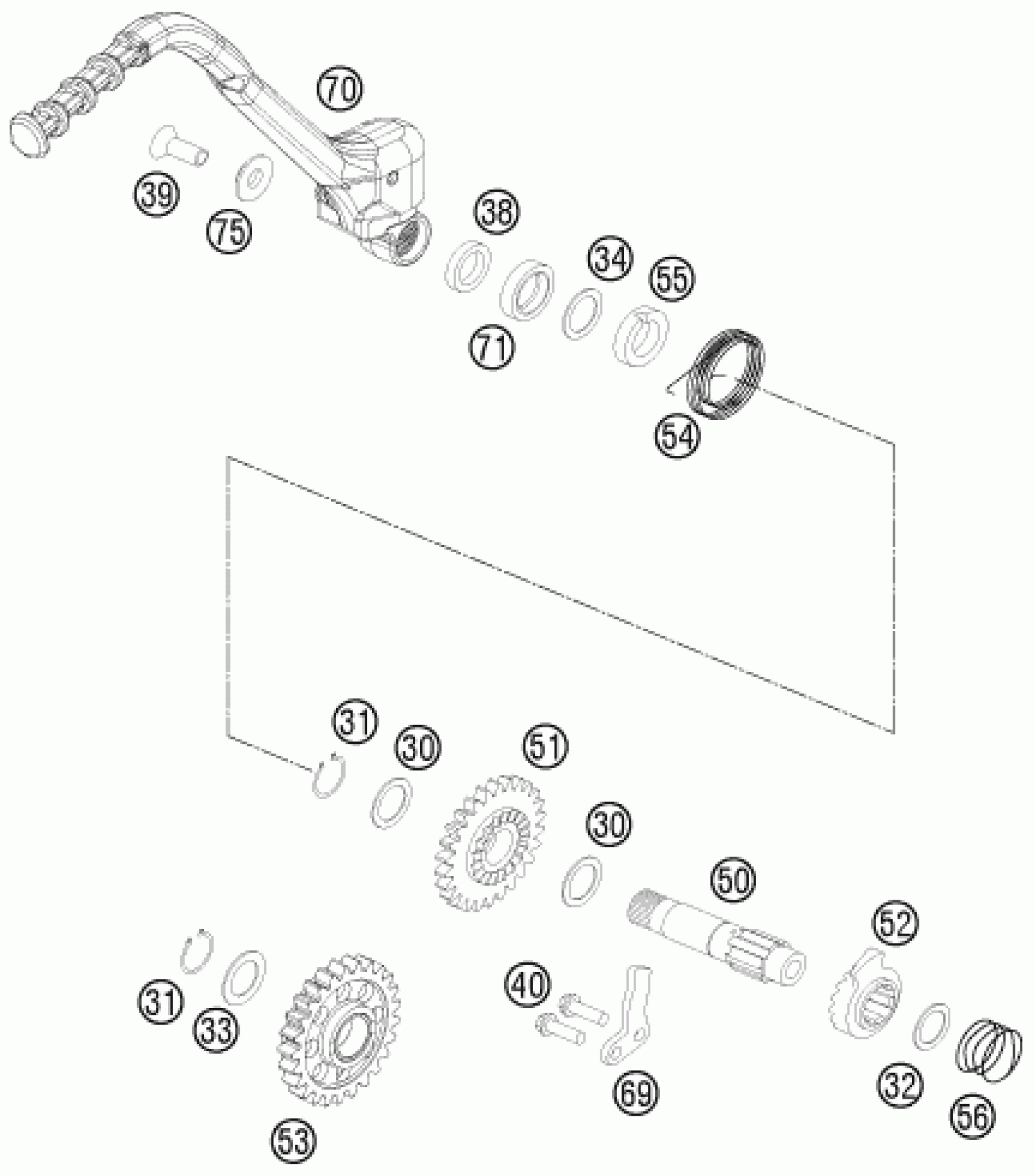

KTM 250 XCF-W 2014 KICK STARTER Diagram

#

Description
Price

54

KICKSTARTER SPRING 05

77033054000

Unavailable

55

DRIVING HUB ´05

77033055000

Unavailable

30

STOP DISK 17,2X24X1

50333030000

Unavailable

31

CIRCLIP DIN0471-17X1

0471170010

Unavailable

32

THRUST WASHER DIN0988-16X22X1

0988162210

Unavailable

38

SPACER BUSHING 16X23X26X6,1

50333038100

Unavailable

39

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

40

HH collar screw M6x16 TX30

0025060166

Unavailable

50

KICKSTARTER SHAFT 05

77033050000

Unavailable

51

KICKSTART. GEAR 28-T 05

77033051000

Unavailable

52

KICKSTARTER RATCHET

50333052000

Unavailable

53

INTERMEDIATE GEAR CPL.

77233053000

Unavailable

33

SHIM WASHER DIN0988-17X24X0,5

0988172405

Unavailable

34

STOP DISK 17,2X25X1

54633090000

Unavailable

56

SPRING 1,4MM '98

50333056000

Unavailable

69

STOP MET.SHEET 4MM 125/200'98

50333069000

Unavailable

70

KICKSTARTER CPL.

77133070144

Unavailable

71

SHAFT SEAL RING 17X28X7 B

0760172870

Unavailable

75

WASHER 8MM GALVANIZED

54633037000

Unavailable
