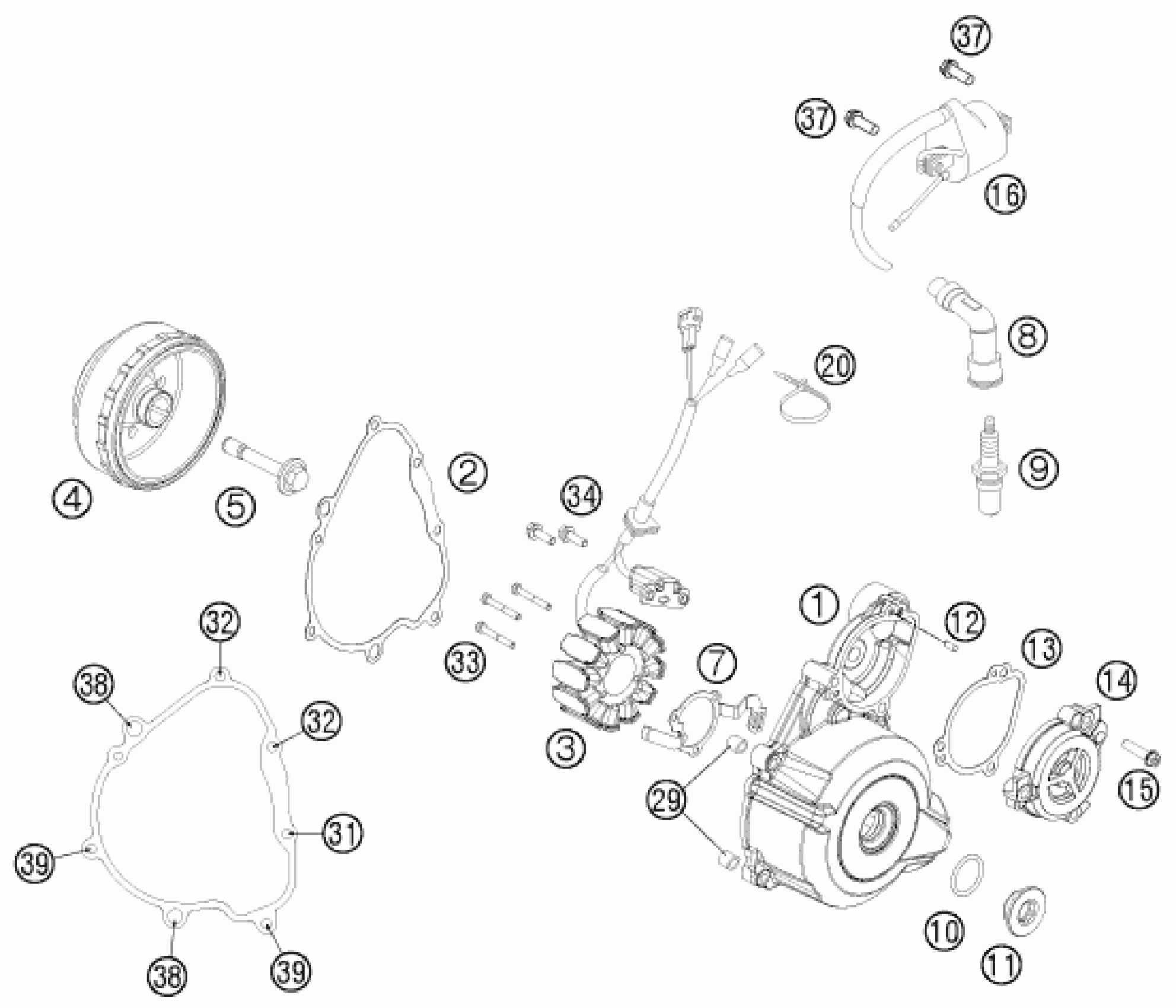

KTM 250 XCF-W 2012 IGNITION SYSTEM Diagram

#

Description
Price

2

IGNITION COVER GASKET

77130040000

Unavailable

3

STATOR

77439004000

Unavailable

4

ROTOR

77539005000

Unavailable

7

RETAINING PLATE

77430002050

Unavailable

10

o-ring 24.00x2.50 Viton

07700240251

Unavailable

14

COVER TORQUE LIMITER

7723000201015

Unavailable

15

HH collar screw M6x25 TX30

0025060256

Unavailable

1

IGNITION COVER

7743000200015

Unavailable

5

FLYWHEEL SCREW

77339010100

Unavailable

8

SPARK PLUG CONNECTOR

77139090000

Unavailable

9

SPARK PLUG NGK CR9EKB ´05

77039093000

Unavailable

11

FACTORY IGNITION COVER PLUG

7723000206030

Unavailable

32

HH collar screw M6x50 TX30

0025060506

Unavailable

13

GASKET TORQUE LIMITER

77240043000

Unavailable

16

Ignition coil

58439006000

Unavailable

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

33

AH SCREW DIN0912-M 5X30

0912050303

Unavailable

34

HH collar screw M5x12 TX30

0025050126

Unavailable

29

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

37

HH collar screw M6x16 TX30

0025060166

Unavailable

38

HH collar screw M6x35 TX30

0025060356

Unavailable

39

HH COLLAR SCREW M6X90 TX30

0025060906

Unavailable

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

31

HH collar screw M6x30 TX30

0025060306

Unavailable
