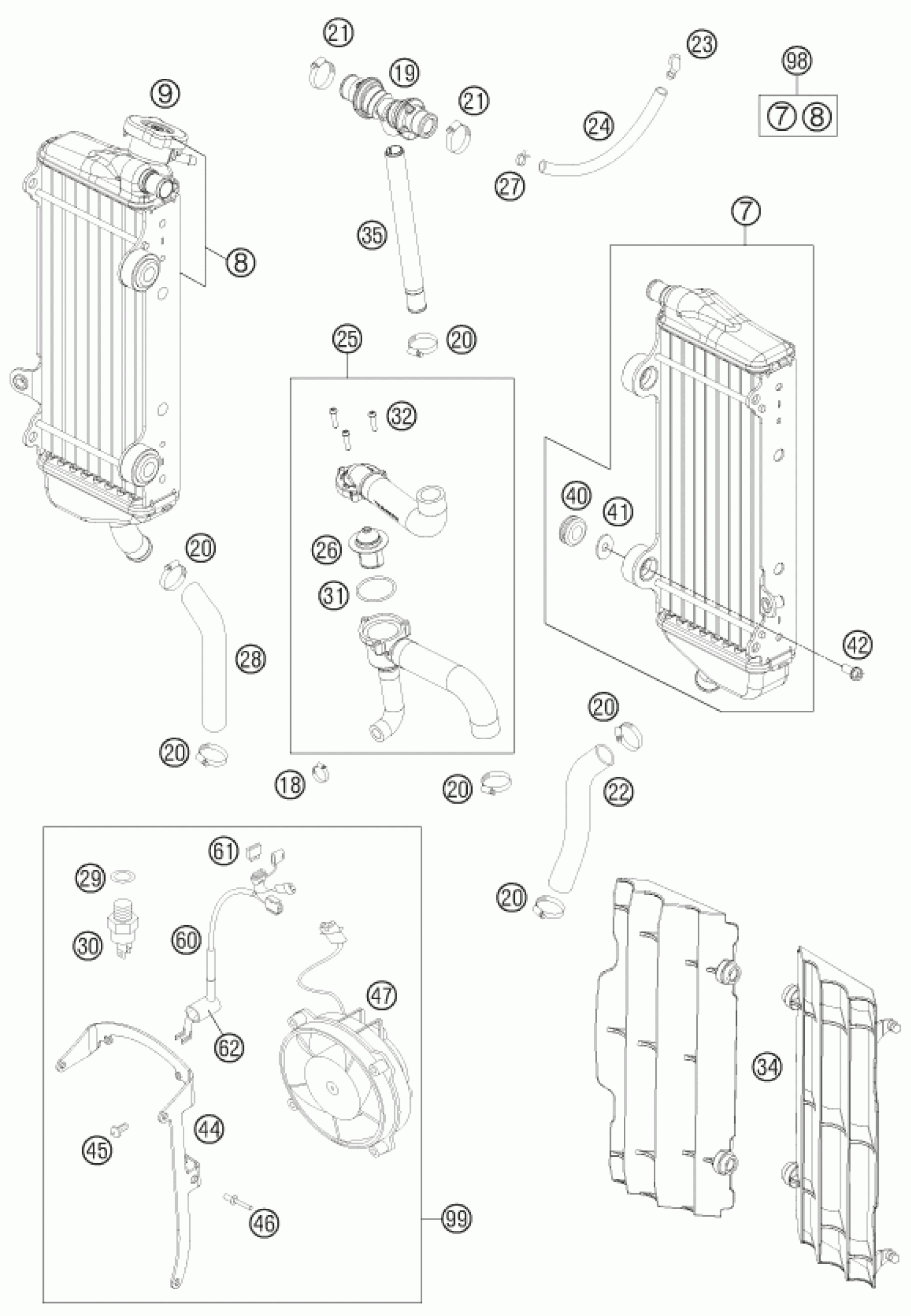

KTM 250 XCF-W 2012 COOLING SYSTEM Diagram

#

Description
Price

99

FAN KIT COMPLETE

81235941044

Unavailable

7

RADIATOR L/S ''55623U'' 12

77035007300

Unavailable

8

RADIATOR R/S ''55556U'' 12

78035008100

Unavailable

9

RADIATOR CAP SMALL 1,8 BAR

77335016000

Unavailable

18

HOSE CLAMP GEMI 10-16

58335099000

Unavailable

19

Y-CONNECTOR CPL.

77235071044

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

21

HOSE CLAMP NORMA 14/24

42013037400

Unavailable

22

RADIATOR HOSE L/S, R/S 250 SXF

77035025000

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

PVC-HOSE 6X9

50335030001

Unavailable

25

RAD.HOSE W. THERM. 70° '12

77435026033

Unavailable

26

THERMOSTAT 70 DEGREE 04

59435017000

Unavailable

28

RADIATOR HOSE R/S 07

77035027100

Unavailable

29

ALU SEALRING DIN7603-14X20X1,5

0603142015

Unavailable

30

THERMOSWITCH 95-100 DG

78035045000

Unavailable

31

O-RING 32,00X2,00

0770320020

Unavailable

32

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

34

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

35

HOSE CONNECTOR L=172,5

77235073000

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

41

WASHER FOR RADIATOR 08

77335001000

Unavailable

42

COLLAR SCREW M6X12 TX

0023060123

Unavailable

44

FAN SUPPORT

81235943000

Unavailable

45

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

46

RIVET 4,0X 8 ALU

0011400800

Unavailable

47

FAN CPL. 12V LC4 2000

58435041000

Unavailable

60

FAN WIRING HARNESS

59011079100

Unavailable

61

FUSE 5 A 2003

58011109105

Unavailable

27

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

8

RADIATOR R/S ''65061U'' 12

78035008200

Unavailable

62

PROTECTION CAP THERMOSWITCH

58311096000

Unavailable

98

RADIATOR KIT 08-14

00050000131

Unavailable
