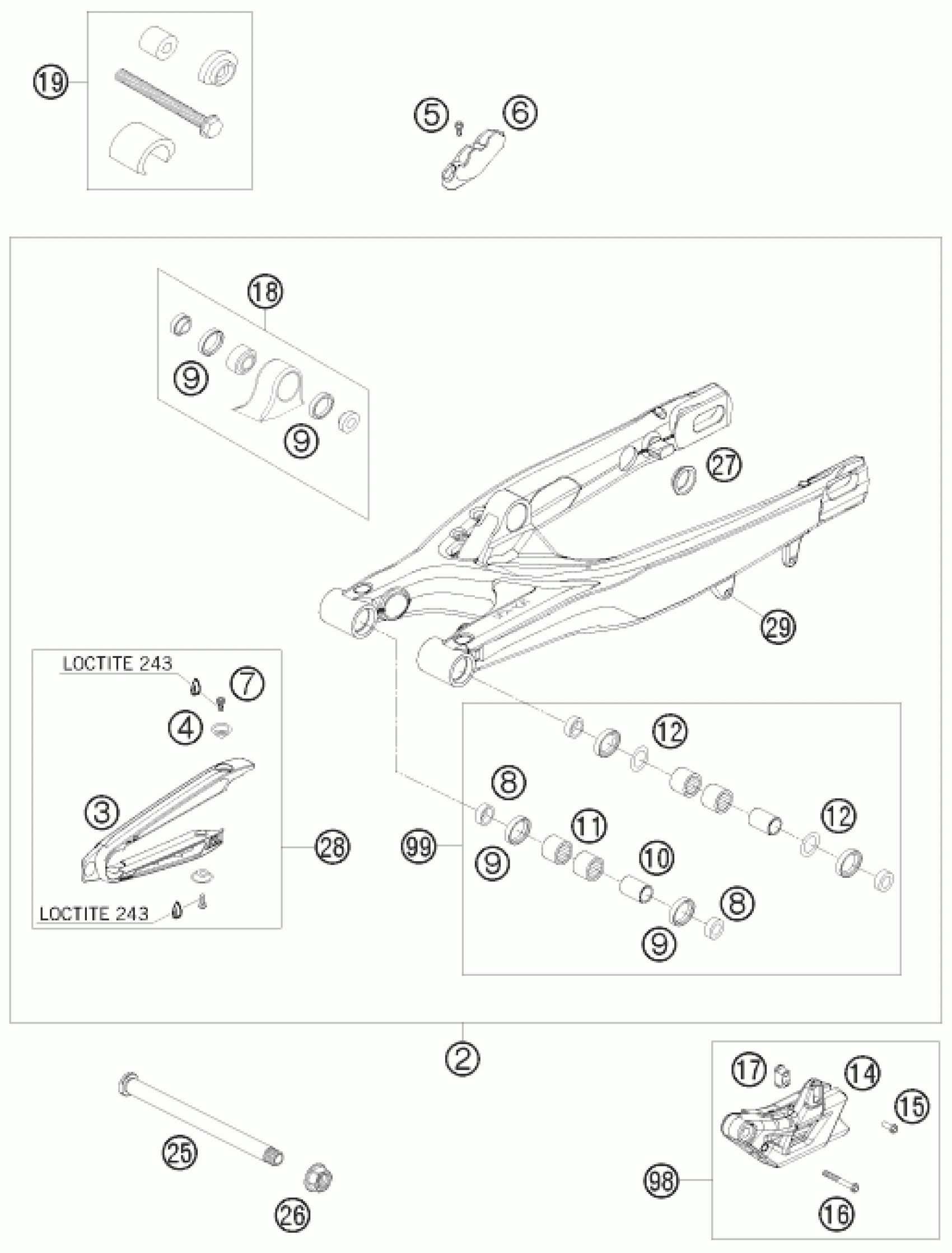

KTM 250 XCF-W 2010 SWING ARM Diagram

#

Description
Price

98

Chain guide kit

77304070310

Unavailable

2

SWINGARM CPL. 07

77304030044

Unavailable

3

CHAIN SLIDING PROTECTION

77304066000

Unavailable

4

chain slider bushing

77304066050

Unavailable

5

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

6

BRAKE HOSE GUIDE LOWER 07

77313047000

Unavailable

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

8

Bucket f. shaft seal ring 03

54804034000

Unavailable

9

radial shaft seal 25x32x7

0760253270

Unavailable

10

BUSHING SLEEVE F. SWING ARM 03

54804032000

Unavailable

11

NEEDLE BEARING HK 2216

58033097000

Unavailable

12

STOP DISK 22,2X31,7X1

54603036000

Unavailable

14

CHAIN GUIDE CPL.

78004070000

Unavailable

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

16

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

17

BUSH. F. CHAIN FAIL. PROT. 07

77304070130

Unavailable

18

PIVOT BEARING+BUSH. PDS '99

50304090044

Unavailable

19

TOOL BEARING MOUNTING PDS

50329000044

Unavailable

25

SWINGARM BOLT M16X1,5 07

77304037000

Unavailable

26

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

27

CLOSING COVER ROUND 03

58404041100

Unavailable

28

CHAIN GUARD CPL. 07-11

77304066010

Unavailable

29

PRESS IN NUT M6 STEEL ZINC

54603055051

Unavailable

99

SWINGARM REPAIR KIT 05-15

54804230210

Unavailable
