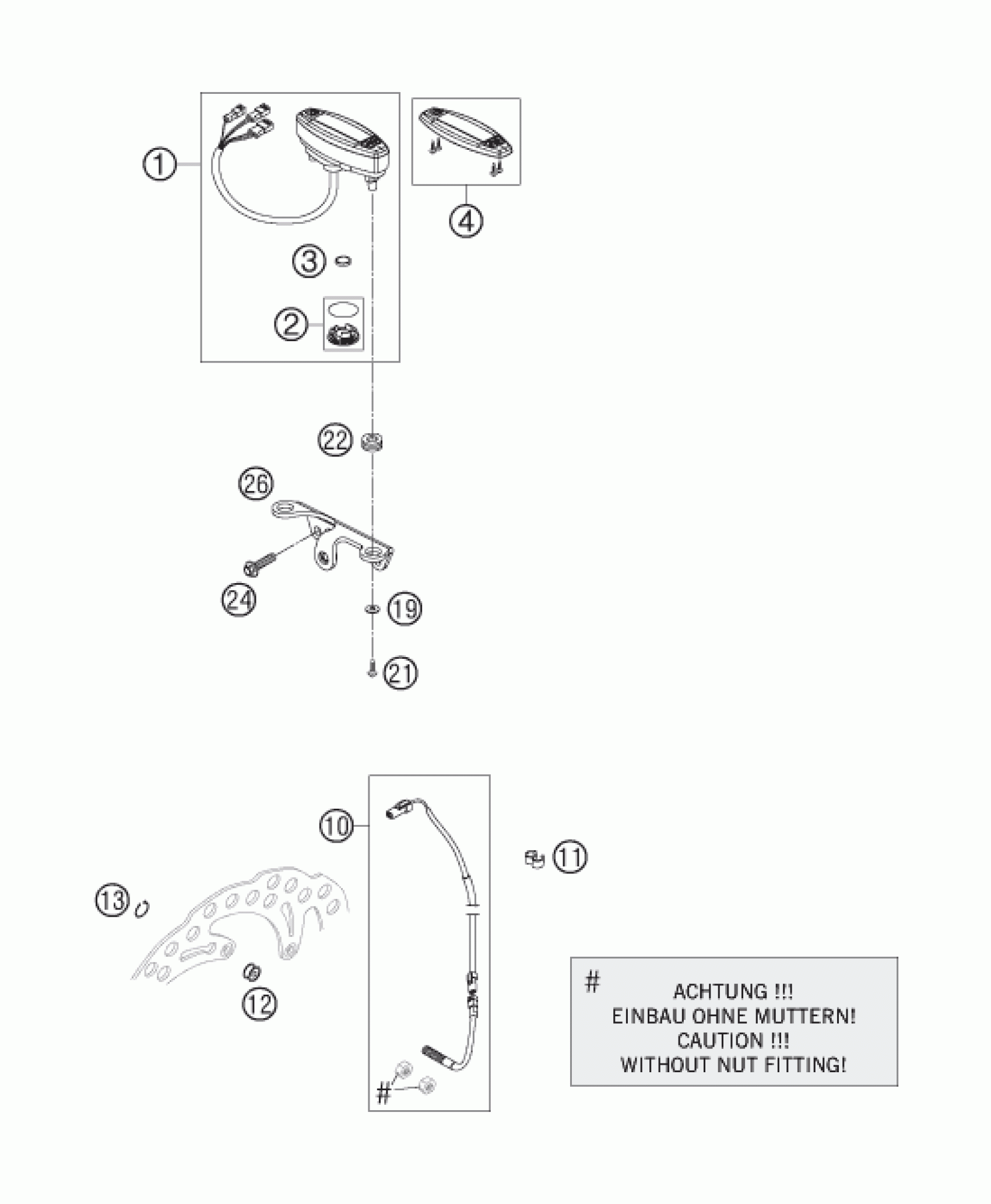

KTM 250 XCF-W 2006 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H F. 21'' 200

54814069000

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

Unavailable

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

11

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

4

SPEEDOMETER TOP PART 05

54814069020

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

19

washer DIN 9021 A - 5.3

0021050003

Unavailable

21

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

22

rubber grommet 16x10.8x3

58214069051

Unavailable

24

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

26

SPEEDOMETER BRACKET 06

52314060000

Unavailable
