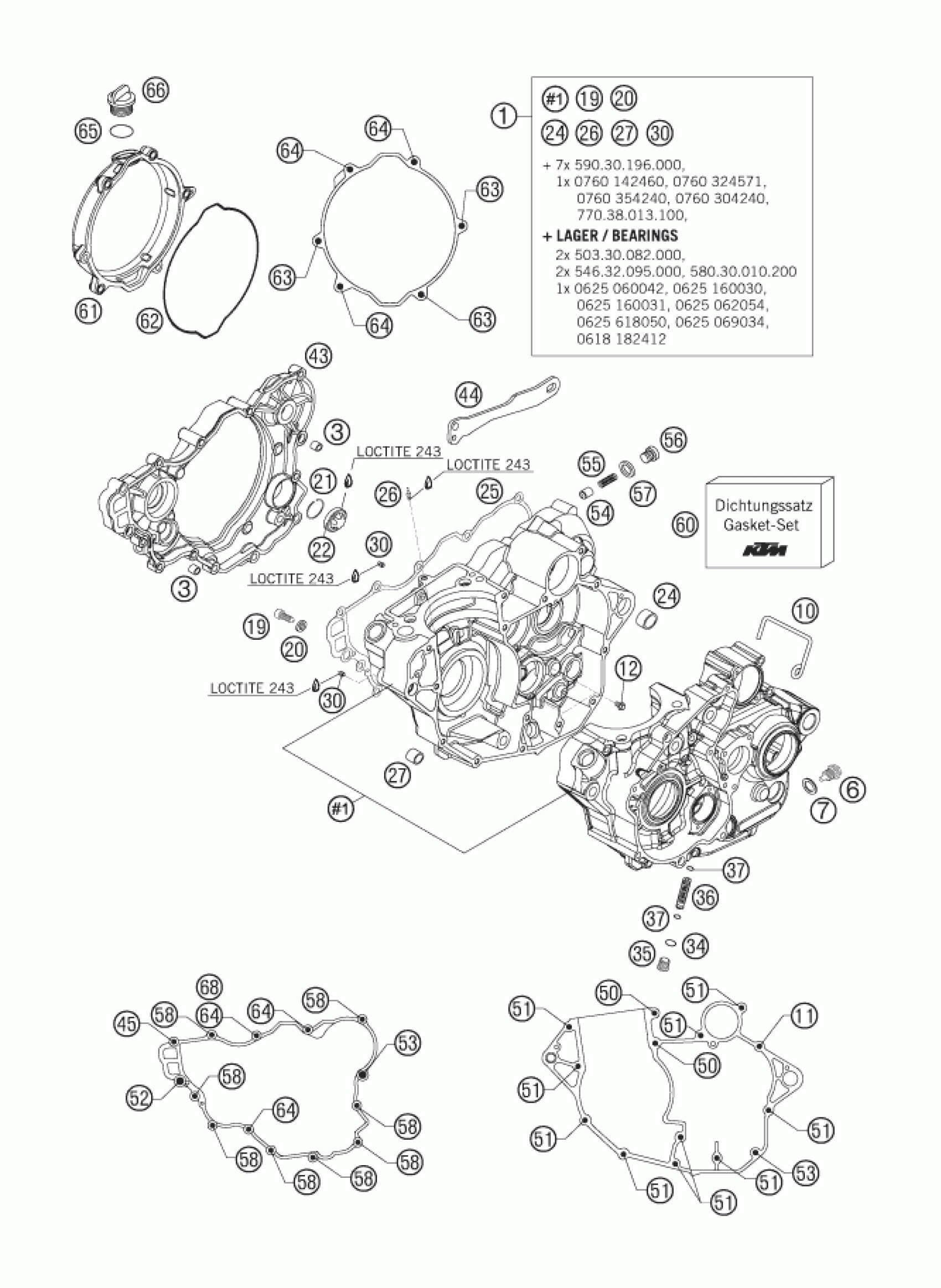

KTM 250 XCF-W 2006 ENGINE CASE Diagram

#

Description
Price

7

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

10

BRACKET FOR BREATH HOSE

77030090000

Unavailable

11

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

12

HH COLLAR SCREW M 6X8 WS=8

0015060083

Unavailable

19

LOCATING SCREW M8 L=23

58030080000

Unavailable

20

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

21

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

22

OIL LEVEL GLASS G 1777 Y

59030019000

Unavailable

24

DOWEL 17 X 19 X 12

59030024000

Unavailable

25

GASKET FOR CLUTCH COVER 05

77030025100

Unavailable

26

OIL JET 70 M6X0,75 WS8 03

60030064070

Unavailable

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

30

JET 100 BING(44-031/180) M4

59030058000

Unavailable

34

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

35

PLUG M16X1,5

59038014000

Unavailable

36

OIL SCREEN 11,8X44,5MM

59038015000

Unavailable

37

O-RING 9X1,5 NBR

0770090015

Unavailable

43

CLUTCH COVER 2005

77030001000

Unavailable

44

CHAIN DAMPERSHEET EXC-F 07

77030047100

Unavailable

45

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

50

HH COLLAR SCREW M 6X65 WS=8

0015060653

Unavailable

51

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

52

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

53

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

54

VALVE PISTON D=10MM

58038028000

Unavailable

55

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

56

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

57

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

58

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

60

GASKET SET 05

77030099000

Unavailable

61

CLUTCH COVER OUTSIDE 06

77030026100

Unavailable

62

MOLDED RING 05

77030027000

Unavailable

63

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

64

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

65

O-RING 19,00X3,00 NBR

0770191015

Unavailable

66

PLUG M 24X3

58030020000

Unavailable

68

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

1

ENG CASE CPL. W.TR.BEAR. 06

77030100044

Unavailable

3

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable
