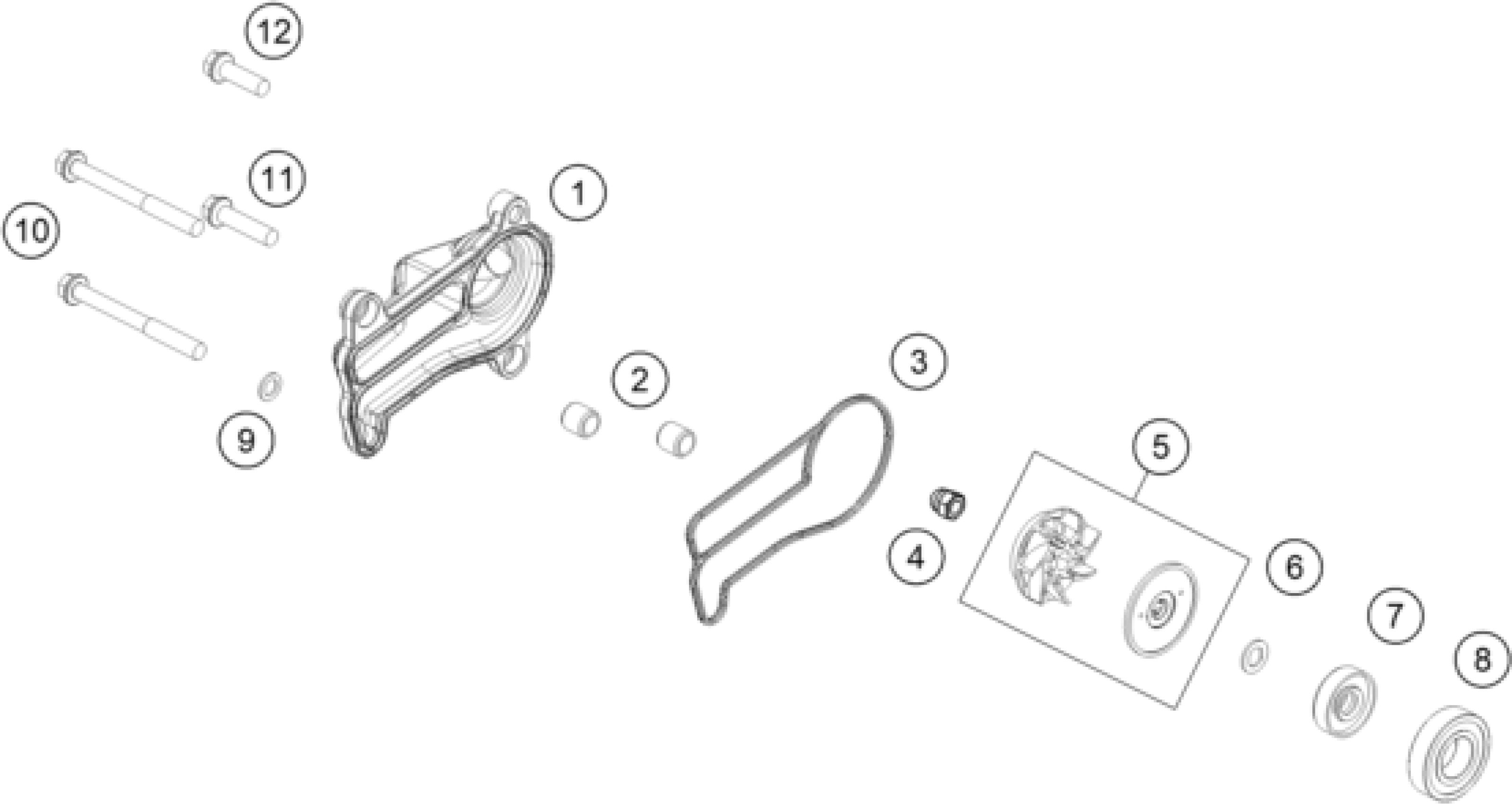

KTM 250 XC-W TPI 2019 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP COVER

55435052000

Unavailable

2

DOWEL 9,8 X7X10

49030090100

Unavailable

3

GASKET WATER PUMP COVER

55435053000

Unavailable

4

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

5

WATER PUMP WHEEL CPL.

79235055044

Unavailable

6

PREFORMED WASHER

50435049000

Unavailable

7

SHAFT SEAL RING 8X24X7 A DUO

0760082472

Unavailable

8

BALL BEARING 16002 C3

0625160020

Unavailable

9

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

10

HH collar screw M6x60 TX30

0025060606

Unavailable

11

HH collar screw M6x25 TX30

0025060256

Unavailable

12

HH collar screw M6x20 TX30

0025060206

Unavailable
