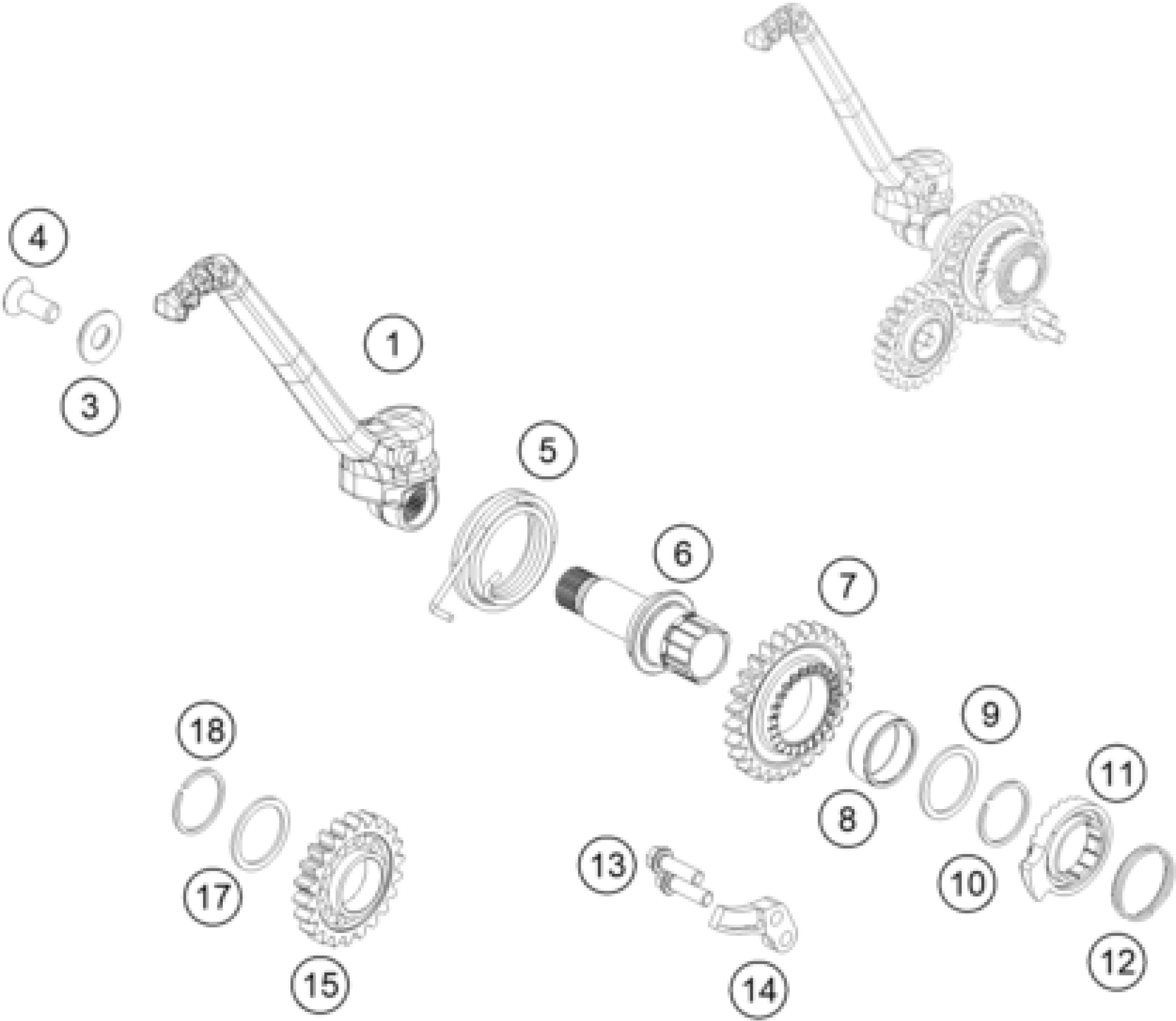

KTM 250 XC-W TPI 2019 KICK STARTER Diagram

#

Description

Price

1

KICKSTARTER CPL.

50433070044

Unavailable

3

WASHER 8MM GALVANIZED

54633037000

Unavailable

4

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

5

Kick-starter spring

50433054200

Unavailable

6

KICK STARTER SHAFT

79233050000

Unavailable

7

KICK STARTER WHEEL 27Z

79233051027

Unavailable

8

NEEDLE BEAR K 25X29X10

0405252910

Unavailable

9

STOP DISC 25X31X1,5

54833044000

Unavailable

10

CIRCLIP SW25

0417025000

Unavailable

11

KICK STARTER RATCHET

50433052000

Unavailable

12

RATCHET GEAR SPRING 1,2 MM

58033028000

Unavailable

13

HH collar screw M6x20 TX30

0025060206

Unavailable

14

BUMP PART

59033069000

Unavailable

15

KICKSTART IDLER CPL.

79233053000

Unavailable

17

STOP DISC 17,2X26X1 B

50333041000

Unavailable

18

CIRCLIP DIN0471-17X1

0471170010

Unavailable
