WIRING HARNESS

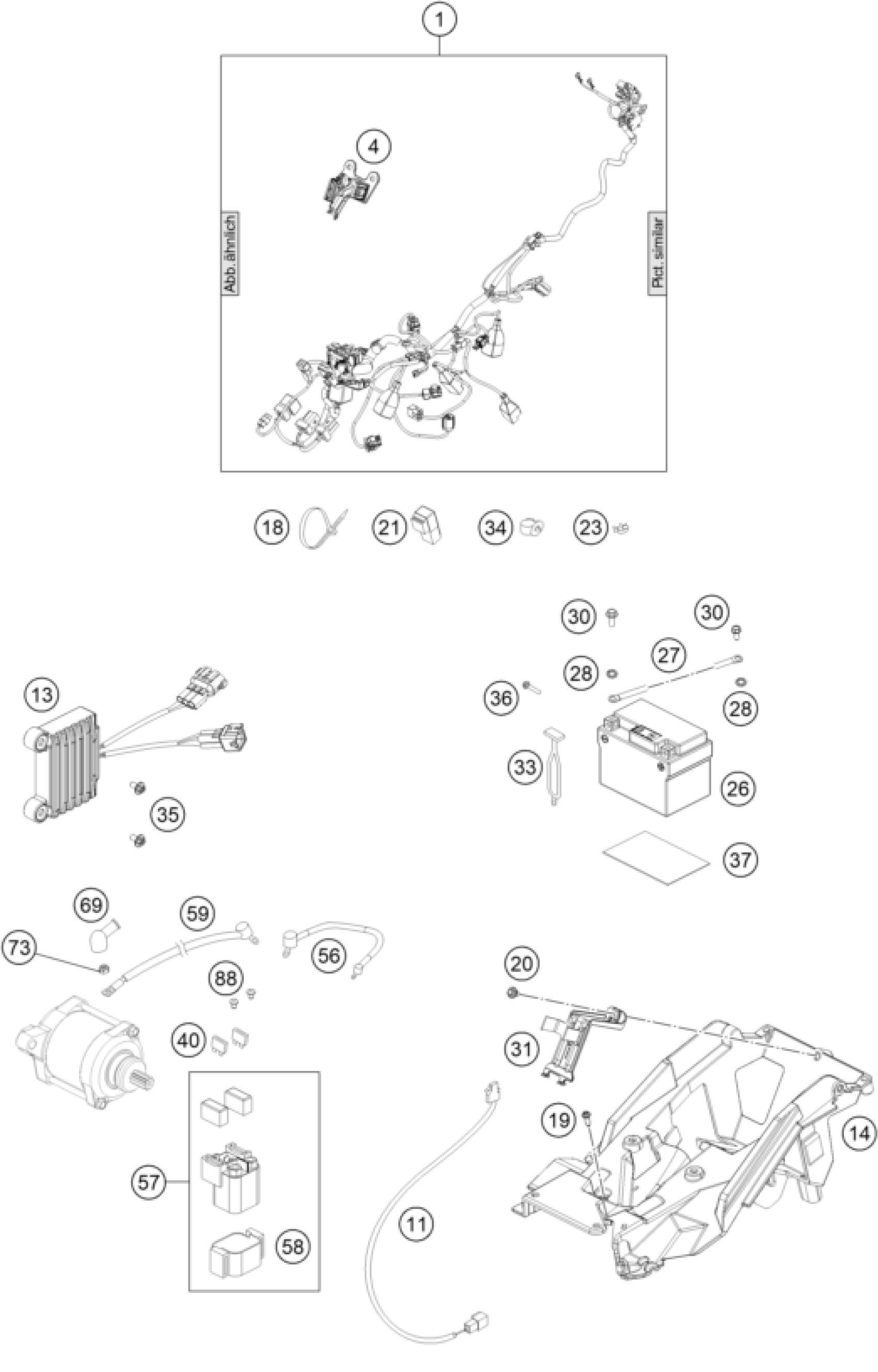

KTM 250 XC-W TPI 2018 WIRING HARNESS Diagram
#
1
main harne 250/300 XC-W cpl 17
55611175033
Unavailable
4
SUPPORT BRACKET
77711083000
Unavailable
11
BRAKE LIGHT SWITCH FRONT 2014
77711050000
Unavailable
13
VOLTAGE REGULATOR
79611034000
Unavailable
14
Battery box
55411055000
Unavailable
18
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
18
Cable tie 200/4.6mm black
44011076200
Unavailable
18
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
19
SCREW F. PLASTIC K60X20AL SW6
0017060206
Unavailable
20
SPECIAL SCREW M6X12,5 WS=8
59001092050
Unavailable
21
RELAY CM1A-R-12V-H80 07
61111057000
Unavailable
23
WIRING HOLDER 12MM
57013072000
Unavailable
23
WIRING HOLDER 16MM
57013072100
Unavailable
26
LITHIUM ION BATTERY 5S
77311953000
Unavailable
27
GROUND CABLE D=6MM L=140MM '97
58411097100
Unavailable
28
CONTACT WASHER M6 VSV-K6
58411098100
Unavailable
30
HH collar screw M5x12 TX30
0025050126
Unavailable
31
BATTERY BOX SUPPORT
79011056100
Unavailable
33
RUBBER L=145MM
50303018000
Unavailable
34
CABLE SUPPORT KHS NR.150-47610
58111076000
Unavailable
35
COLLAR SCREW M6X12 TX
0023060123
Unavailable
36
SCREW FOR PLASTIC K60X20 SW6
0017060205
Unavailable
37
METAMOLL 90X45X3MM 03
59003001099
Unavailable
40
Plug-in fuse, big 20A
58011109120
Unavailable
56
WIRING HARNESS BATTERY DUKE'99
58711086000
Unavailable
58
Starter reley 12V 99
58211058000
Unavailable
59
STARTERCABLE 1100MM 07
55111059000
Unavailable
69
Protection cap for starter eng
77240099000
Unavailable
73
Self lock. nut DIN985-M6-A2
0985060003
Unavailable
88
Oval head screw ISO 7380 M 6X8
0902060083
Unavailable
57
BRACKET RUBBER F.STARTRELAY 07
58211058050
Unavailable
