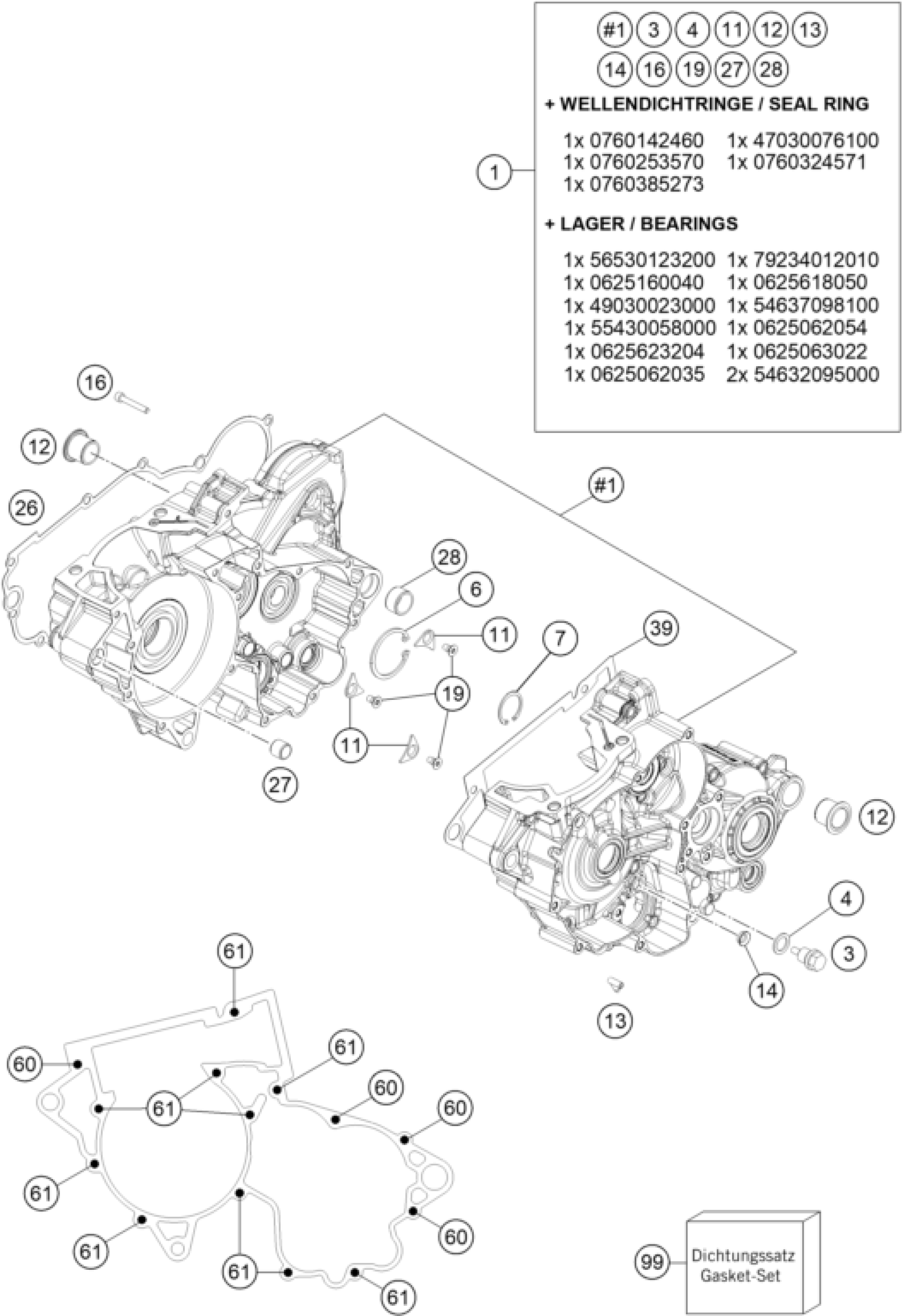

KTM 250 XC-W TPI 2018 ENGINE CASE Diagram

#

Description
Price

1

Enigne case cpl.

55430200133

Unavailable

3

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

4

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

6

CIRCLIP DIN0472-42X1,75

0472042175

Unavailable

7

CIRCLIP DIN0472-28X1,2

55430059100

Unavailable

11

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

12

CASE BUSH

75030010100

Unavailable

13

ANGLE PIECE 50CCM LC 2001

45130022000

Unavailable

14

COLLAR BUSHING

55140030100

Unavailable

16

AH SCREW DIN0912 M 6X40

0912060406

Unavailable

19

hex lobe countersunc screw M5x

0019050106S

Unavailable

26

CLUTCH COVER GASKET INSIDE

55430025100

Unavailable

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

28

DOWEL 21X12 03

54830027000

Unavailable

39

ENGINE CASE GASKET

55430039000

Unavailable

60

HH collar screw M6x60 TX30

0025060606

Unavailable

61

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

99

GASKET SET 250 EXC/SX 17

55430199000

Unavailable
