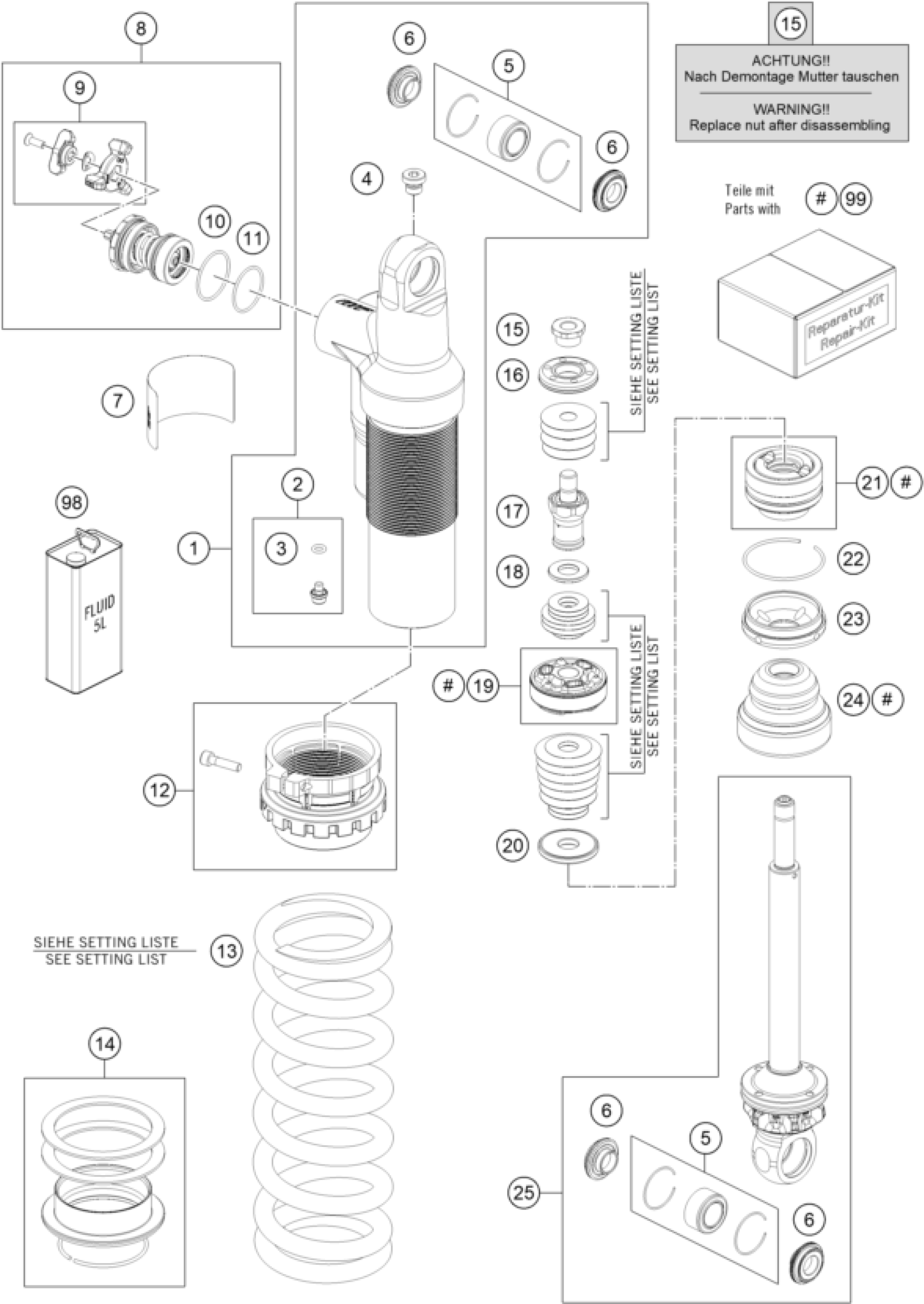

KTM 250 XC-W 2024 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Shock absorber case cmpl.

S454600000S0000

Unavailable

2

PLUG SCREW M5X6 CPL.

36120151S

Unavailable

3

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

Unavailable

5

Ball bearing kit

RP10051T

Unavailable

6

PIVOTSEAL Ø12X25,1 PDS

46181193

Unavailable

7

Sticker XPLOR PDS 90x40

52000233

Unavailable

8

Compression cmpl.

S012900007S0300

Unavailable

9

Repair kit adjuster DCC 2023

RP10044T

Unavailable

10

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

11

O-ring 25x1,5 Viton70

50180218

Unavailable

12

Plastic Spring Retainer D46 cp

46181382S

Unavailable

13

SHOCK SPRING L= 225 63 N/MM WH

91010336

Unavailable

13

Mainspring (59/61) 66-225 damp

91010337

Unavailable

13

SPRING 225MM 69 N/MM

91010338S

Unavailable

13

Mainspring (59/61) 72-225 damp

91010339

Unavailable

13

Mainspring (59/61) 75-225 damp

91010363

Unavailable

13

Mainspring (59/61) 78-225 damp

91010364

Unavailable

13

Mainspring (59/61) 81-225 damp

91010367

Unavailable

13

Mainspring (59/61) 84-225 damp

91010368

Unavailable

14

Spring plate repair kit

RP10052T

Unavailable

15

nut M10x1 h10,5 SW19

46181656

Unavailable

16

Piston 15,4x35,4x6

46181416

Unavailable

17

Compression holder 10x48

S71100000500000

Unavailable

18

Washer 12x24x2,5

46811258

Unavailable

19

Piston d46 cmpl.

S624600000S0000

Unavailable

20

Rebound disc 12x36x4 h0

46181194

Unavailable

21

Seal support 46x28 cmpl.

S614620000S0100

Unavailable

22

round-wire snap ring 49x1,75

S23902000000000

Unavailable

23

Cover 46.12x6.2 h14.2

S409000004000FA

Unavailable

24

Rubber pad 18x56x46 black

S921800000000C1

Unavailable

25

Piston rod cmpl.

S421800001S0100

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repair kit shock absorber

RP10053T

Unavailable
