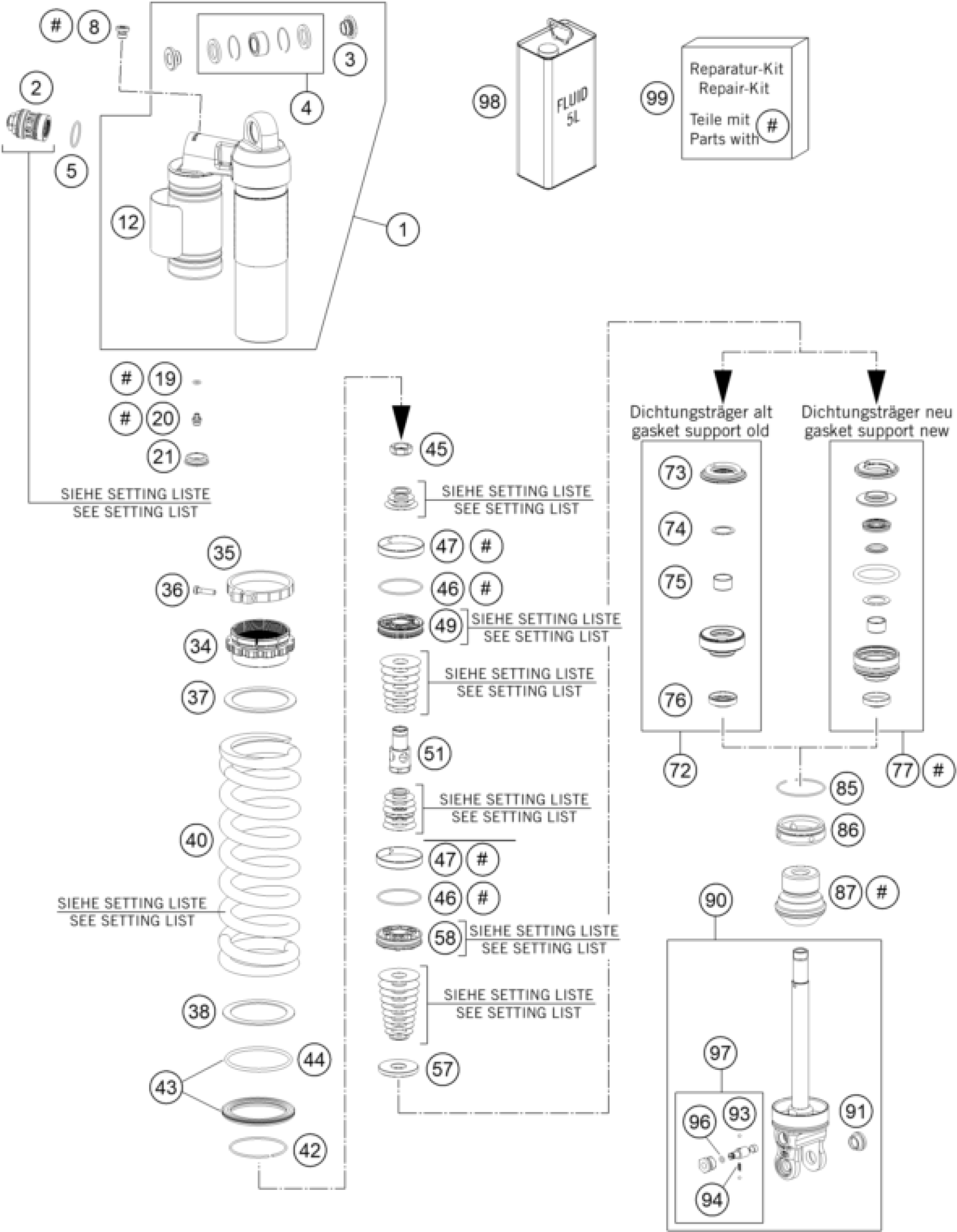

KTM 250 XC-W 2015 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK UPPER PART CPL.

50180833SA2

Unavailable

2

DCC-COMPR.DAMP.CONTROL CPL. 07

50180213S10

Unavailable

3

Distance bush 12x15/18/24,5x10

46180007

Unavailable

4

Ball joint bearing kit top 12m

R12012

Unavailable

5

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

8

HS cylinder-head screw R1/8 l8

50180095

Unavailable

12

Sticker WP PDS 62x100

52000085

Unavailable

19

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

20

HS lock screw M5x6

36120151

Unavailable

21

Rubber cap do not open 22x5,5

46811208

Unavailable

34

Spring retainer M56x2x63,8x33

50180938

Unavailable

35

Clamp d64

50180937

Unavailable

36

HS cylinder-head screw M5x20 D

14460042

Unavailable

37

Intermediate washer spring 64,

50180965

Unavailable

38

Intermediate washer spring 61,

50180114

Unavailable

40

SPRING 250 63N/MM ORANGE

91210053S

Unavailable

40

SPRING 250 66N/MM ORANGE

91210054S

Unavailable

40

SPRING 250 69N/MM ORANGE

91210068S

Unavailable

40

SPRING 250 72N/MM ORANGE

91210069S

Unavailable

40

SPRING 250 76N/MM

91210070S

Unavailable

42

Round-wire snap ring 58,5x2

50180273

Unavailable

43

SPRING RET. D=80 W. O-RING 05

50180463S

Unavailable

44

O-ring 66,27x1,78 Viton70

50180352

Unavailable

45

PISTON ROD NUT M20X1

50180627

Unavailable

46

O-ring 44x,17x1,78 Viton70

50180099

Unavailable

47

Piston ring 47,95x49,95x8

50180135

Unavailable

49

PISTON D=20

50180675

Unavailable

51

SUPPORT D20 M20X1 L51,3 PDS

50180973

Unavailable

57

Rebound disc 16x43x4 h0

50180970

Unavailable

58

Piston 16,05x49,6x13,5 4,5/7

50180197

Unavailable

72

ADAPTOR CPL. D=50 H=25 14

50180953S1

Unavailable

85

Round-wire snap ring 53x1,75

50180126

Unavailable

86

Cover 50x6 h16

50180626

Unavailable

87

Rubber pad 17x58x59

50180600

Unavailable

90

SHOCK ABS. LOWER PART CPL. 12

50180512SA4

Unavailable

91

Threaded bush M12 d20

50180105

Unavailable

93

Steel ball d3

40540603

Unavailable

94

Spring (1,7) l7,9

48600028

Unavailable

96

O-ring 4x1,5 NBR70

50180222

Unavailable

97

ADJUSTING SCREW REBOUND TRAVEL

50180434S

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

REPAIR KIT 5018 PDS 13

R12021

Unavailable

73

Mono seal 18x51x11,1 SKF

50180993

Unavailable

74

SHIM D25,30 X D19 X T0,4 14

50180995

Unavailable

75

Guide bushing 18x20x12

46180119

Unavailable

76

Dirt scarper SKF 18mm red

50180994

Unavailable

77

Sealholder 50x28 cpl.

50180603S

Unavailable
