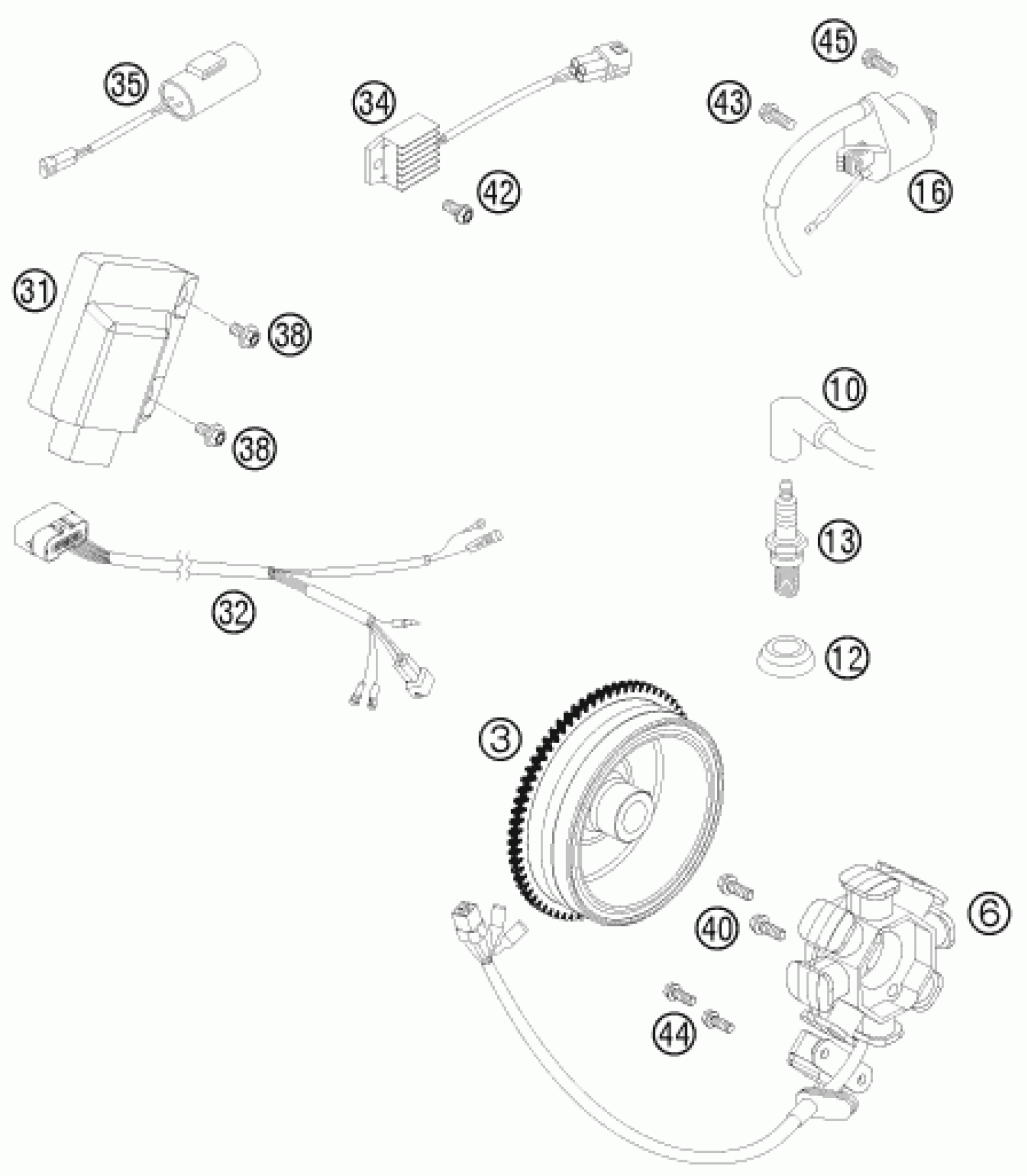

KTM 250 XC-W 2008 IGNITION SYSTEM Diagram

#

Description
Price

31

CDI UNIT 250 EXC 07

54839031700

Unavailable

32

WIRING HARNESS F.CDI 2-ST.SX07

54839032300

Unavailable

12

SEALING CUP FOR SPARK PLUG

50231012000

Unavailable

13

SPARK PLUG

54739093000

Unavailable

16

IGNI.COIL KOKU. IG5127

50339006000

Unavailable

3

FLYWHEEL KOKUSAN

55139005000

Unavailable

6

STATOR KOKUSAN

55139004000

Unavailable

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

Unavailable

34

VOLTAGE REGULATOR 04

80011034000

Unavailable

35

CONDENSATOR 2200MF ADP-48 2000

50311035000

Unavailable

38

COLLAR SCREW M6X12 TX

0023060123

Unavailable

40

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

44

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

45

HH collar screw M6x20 TX30

0025060206

Unavailable

42

HH collar screw M6x12 TX30

0025060126

Unavailable

43

HH collar screw M6x16 TX30

0025060166

Unavailable
