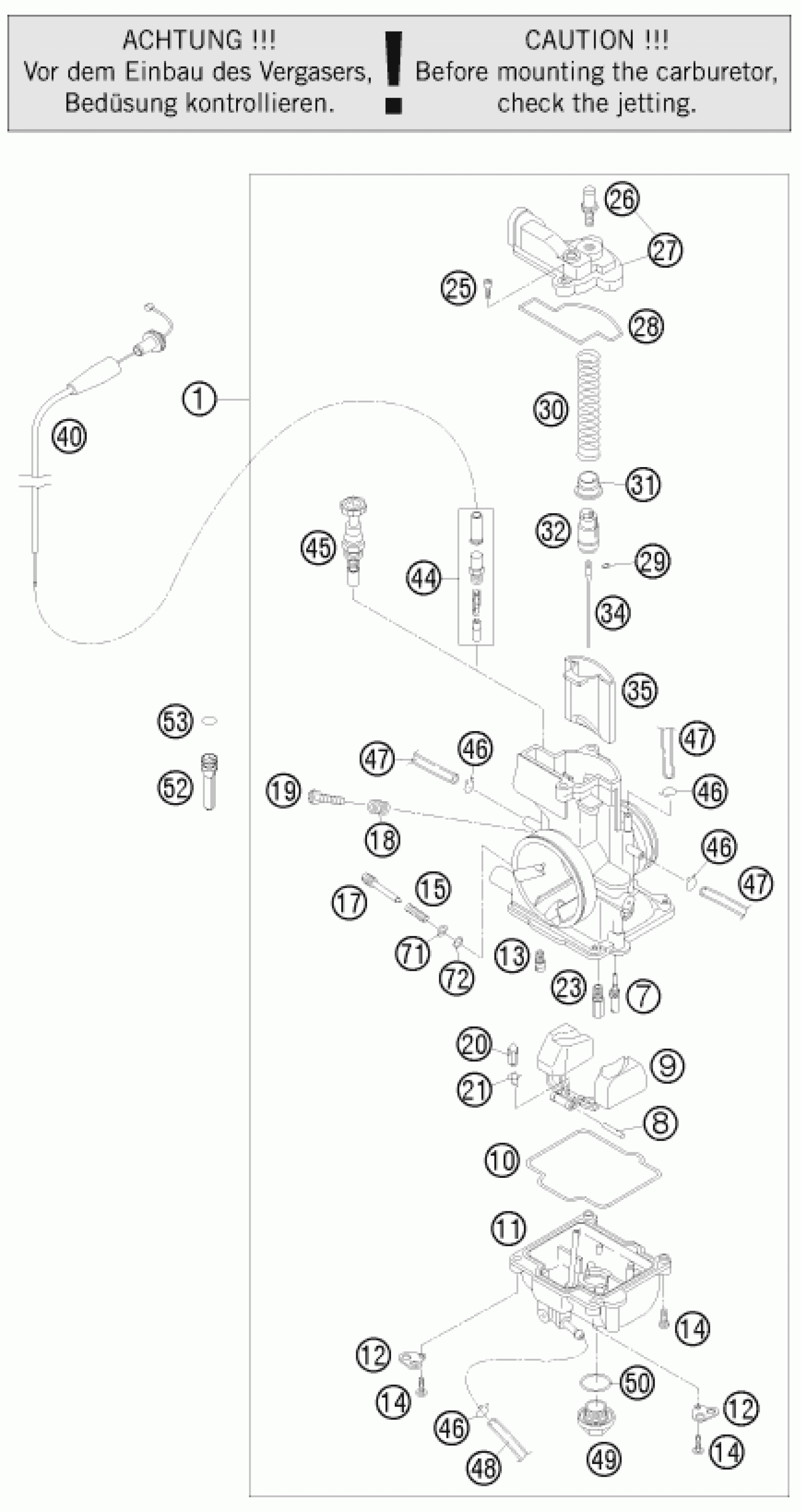

KTM 250 XC-W 2008 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR PWK36-S AG 04

54831101044

Unavailable

1

CARBURETOR KEIHIN PWK36S AG 08

54831101944

Unavailable

7

IDLE JET 35 KEIHIN

54531607035

Unavailable

7

IDLE JET 38 KEIHIN

54531607038

Unavailable

7

IDLE JET 40 KEIHIN

54531607040

Unavailable

7

IDLE JET 42 KEIHIN

54531607042

Unavailable

7

IDLE JET 45 KEIHIN

54531607045

Unavailable

7

IDLE JET 48 KEIHIN

54531607048

Unavailable

7

IDLE JET 50 KEIHIN

54531607050

Unavailable

8

ARM PIN FLOAT

57331008000

Unavailable

9

FLOAT CPL.

57331009000

Unavailable

10

GASKET FLOAT CHAMBER

54831010000

Unavailable

11

FLOAT CHAMBER PWK38-S AG

54831011000

Unavailable

12

RETAINING PLATE FOR BLEEDER

54531612100

Unavailable

14

HH COLLAR SCREW M 4X16 WS=6

0016040163

Unavailable

15

SPRING FOR ADJUSTMENT SCREW

54531615000

Unavailable

17

ADJUSTMENT SCREW

54531617000

Unavailable

18

SPRING

54631118000

Unavailable

19

ADJUSTMENT SCREW M 5

54631219100

Unavailable

20

FLOAT NEEDLE

54631220000

Unavailable

21

CLAMP

54531621000

Unavailable

23

MAIN JET 155 KEIHIN

54531623155

Unavailable

23

MAIN JET 158 KEIHIN

54531623158

Unavailable

23

MAIN JET 160 KEIHIN

54531623160

Unavailable

23

MAIN JET 162 KEIHIN

54531623162

Unavailable

23

MAIN JET 165 KEIHIN

54531623165

Unavailable

23

MAIN JET 168 KEIHIN

54531623168

Unavailable

27

CARBURETOR COVER PWK36-S AG

54831127000

Unavailable

28

GASKET FOR CARBURETOR COVER

54831028000

Unavailable

29

CLIP FOR JET NEEDLE

54531629000

Unavailable

30

SLIDING SPRING

54831030000

Unavailable

31

SPRING CAP

54631231000

Unavailable

32

NIPPLE

54631232000

Unavailable

34

JET NEEDLE KEIHIN N8RE 06

54831035300

Unavailable

34

JET NEEDLE KEIHIN N8RF 06

54831035000

Unavailable

34

JET NEEDLE KEIHIN N8RG 06

54831035100

Unavailable

34

JET NEEDLE KEIHIN N8RH 06

54831035400

Unavailable

34

JET NEEDLE KEIHIN N8RW 07

54831035500

Unavailable

34

JET NEEDLE KEIHIN N8RJ 07

54831035600

Unavailable

35

THROTTLE VALVE 7 FOR 38 PJ '00

54631035000

Unavailable

45

STARTER PISTON CPL.

54631245000

Unavailable

46

Clamp 6mm

54531696000

Unavailable

47

PVC-HOSE 4X6MM

31007007101

Unavailable

48

PVC-HOSE 3X5MM

52031137001

Unavailable

49

PLUG M 18X1

54531699000

Unavailable

50

O-RING 18,00X2,30 NBR 70

0770180230

Unavailable

52

SLIDE STOP L=36 08

52331029000

Unavailable

53

O-RING 6,07X1,78 FPM75

0770060018

Unavailable

71

WASHER ADJUSTING SCREW

54831071000

Unavailable

72

O-RING ADJUSTING SCREW

54831072000

Unavailable

44

CONNECT. COLD START CABLE CPL.

58502096044

Unavailable

23

MAIN JET 175 KEIHIN

54531623175

Unavailable

25

SPECIAL-AH-SCREW M 4X12

54831025000

Unavailable

26

THROTTLE CALBE HOLDER M6X0,75

54831029000

Unavailable

1

CARB. KEIH PWK 36S AG FK23 08

54831101744

Unavailable

7

IDLE JET SIZE 38X38 KEIHIN

54831007138

Unavailable

23

MAIN JET 115 KEIHIN

54531623115

Unavailable

23

MAIN JET 150 KEIHIN

54531623150

Unavailable

23

MAIN JET 152 KEIHIN

54531623152

Unavailable

13

STARTER JET 50 KEIHIN

54831051050

Unavailable

13

STARTER JET 85 KEIHIN

54831051085

Unavailable

34

JET NEEDLE KEIHIN N84K

54831034100

Unavailable

40

CABLE F. COLD START ACT. 08

54831078000

Unavailable

34

JET NEEDLE KEIHIN N8RK 08

54831035700

Unavailable

52

SLIDE STOP L=38MM

50331029038

Unavailable

23

MAIN JET 170 KEIHIN

54531623170

Unavailable

23

MAIN JET 172 KEIHIN

54531623172

Unavailable
