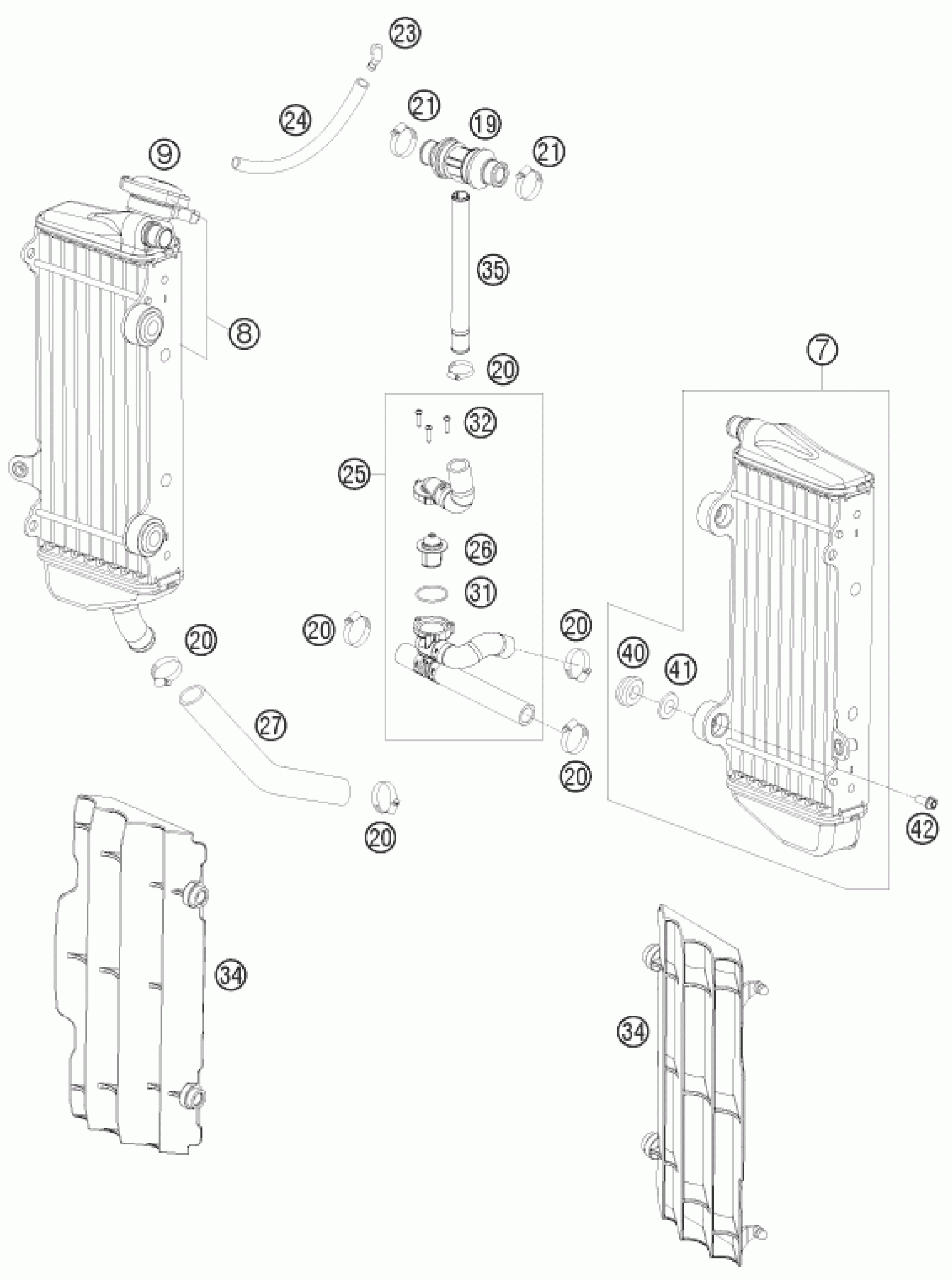

KTM 250 XC-W 2008 COOLING SYSTEM Diagram

#

Description
Price

41

WASHER FOR RADIATOR 08

77335001000

Unavailable

7

RADIATOR LEFT ''VW1595'' 08

54835007200

Unavailable

8

RADIATOR RIGHT ''VW1596'' 08

54835008200

Unavailable

9

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

19

T-CONNECTOR CPL. ´07

77335026000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

21

HOSE CLAMP GEMI 12/22

42013037200

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR H. 250 W. THERM.55 08

54835426033

Unavailable

26

THERMOSTAT 55°C 2004

54835017000

Unavailable

27

RADIATOR HOSE 18X25X130 MM 03

54835027000

Unavailable

31

O-RING 32,00X2,00

0770320020

Unavailable

32

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

34

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

35

HOSE CONNECTOR 2 STROKE 07

54835072000

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

42

COLLAR SCREW M6X12 TX

0023060123

Unavailable
