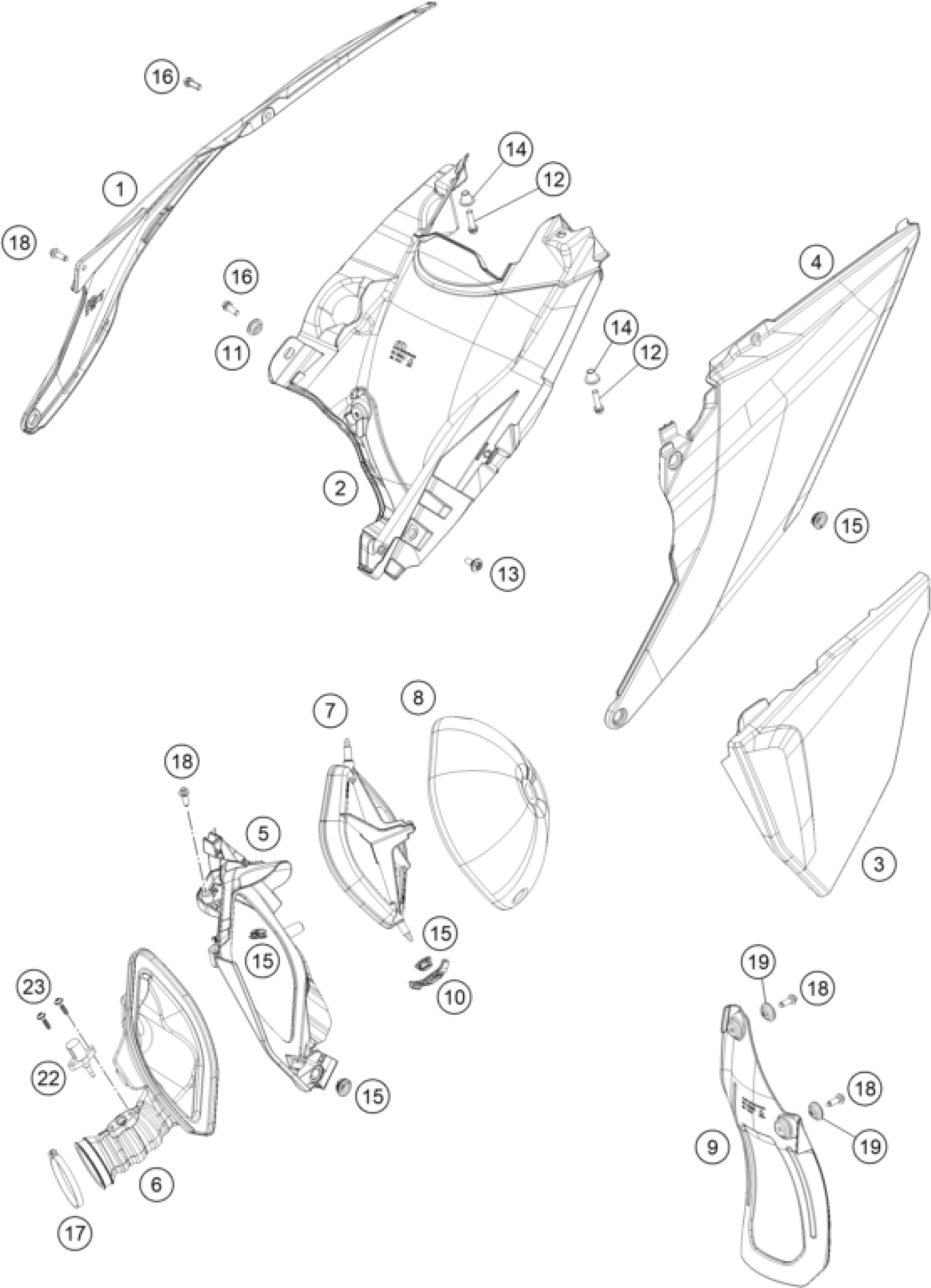

KTM 250 XC TPI 2022 AIR FILTER Diagram

#

Description
Price

1

Filter box cover right

79106004000AB

Unavailable

2

Air filter box

79106001000AB

Unavailable

3

Air filter box cover left

79106003000ABI

Unavailable

4

Air filter cover left

79106005000ABI

Unavailable

5

Air filter box front part

79106001010AB

Unavailable

6

Air boot

55706026000

Unavailable

7

AIR FILTER SUPPORT

50406016000

Unavailable

8

AIR FILTER

79006015000

Unavailable

9

SPLASH GUARD

79006010000

Unavailable

10

FILTER MOUNTING BRACKET

79006017000

Unavailable

11

COLLAR BUSH. F.REAR FENDER 07

77308013010

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

13

SPECIAL SCREW M6X15X3

83008000015

Unavailable

14

Subframe bush

79103002020

Unavailable

15

quick release rubber grommet

47106003160

Unavailable

16

HH collar screw M6x16 TX30

0025060166

Unavailable

17

HOSE CLAMP 45-65MM

78006027000

Unavailable

18

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

19

Chain slider bushing

77304066150

Unavailable

22

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

23

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable
