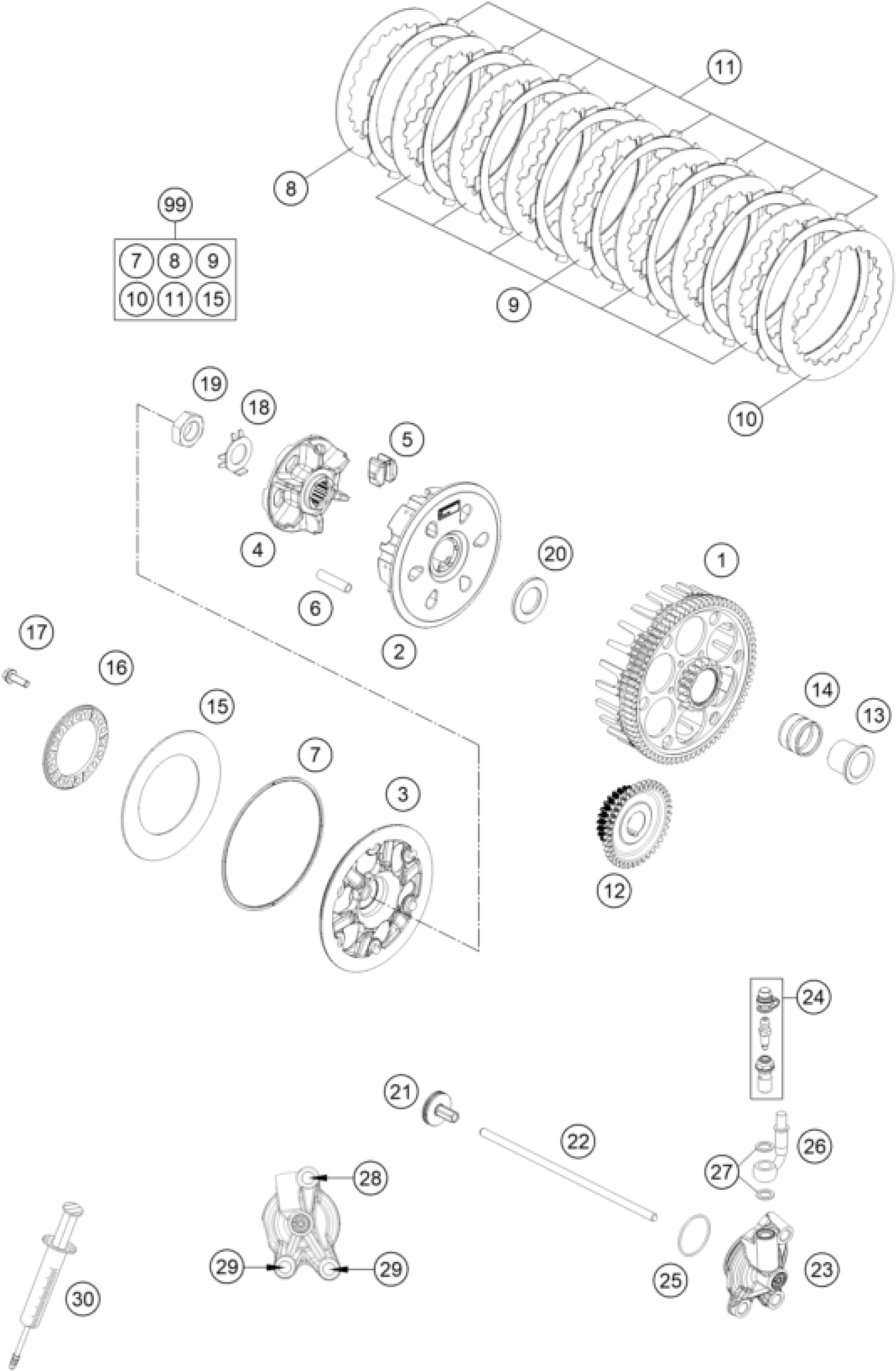

KTM 250 XC TPI 2020 CLUTCH Diagram

#

Description
Price

1

CLUTCH BASKET EXC

79232201073

Unavailable

2

CLUTCH HUB

78132002300

Unavailable

3

Clutch pressure plate

79432003100

Unavailable

4

HUB

78132002111

Unavailable

5

DAMPING RUBBER

78132025100

Unavailable

6

DRIVING SLEEVE D=7,95 L=38

77232004000

Unavailable

7

WASHER 112X118X1.5

78132013000

Unavailable

8

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

9

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

10

INTERMEDIATE DISC 1MM

78932010000

Unavailable

11

LINING DISC 1,95 MM

54832011100

Unavailable

12

PRIMARY GEAR

55432024026

Unavailable

13

INNER RING

77232015000

Unavailable

14

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

15

BELLEVILLE SPRING 71X115X1,5 I

78132005000

Unavailable

16

SPRING RING

78132006100

Unavailable

17

HH collar screw M5x16 TX30

0025050166

Unavailable

18

TAB WASHER

78132018000

Unavailable

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

20

WASHER 21,8 X 37 X 5,1

77232009000

Unavailable

21

PRESSURE PIECE CPL. 08

78032057044

Unavailable

22

PUSH ROD

79232054000

Unavailable

23

OUTPUT CYLINDER CPL.

79232061044

Unavailable

24

BLEEDER SCREW CPL.

79032064000

Unavailable

25

O-ring 30x1.5 NBR 70

0770300015

Unavailable

26

CLUTCH PIPE

79232063000

Unavailable

27

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

28

HH collar screw M6x25 TX30

0025060256

Unavailable

29

HH collar screw M6x16 TX30

0025060166

Unavailable

30

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

99

CLUTCH KIT 250/300 13-15

54832011110

Unavailable
