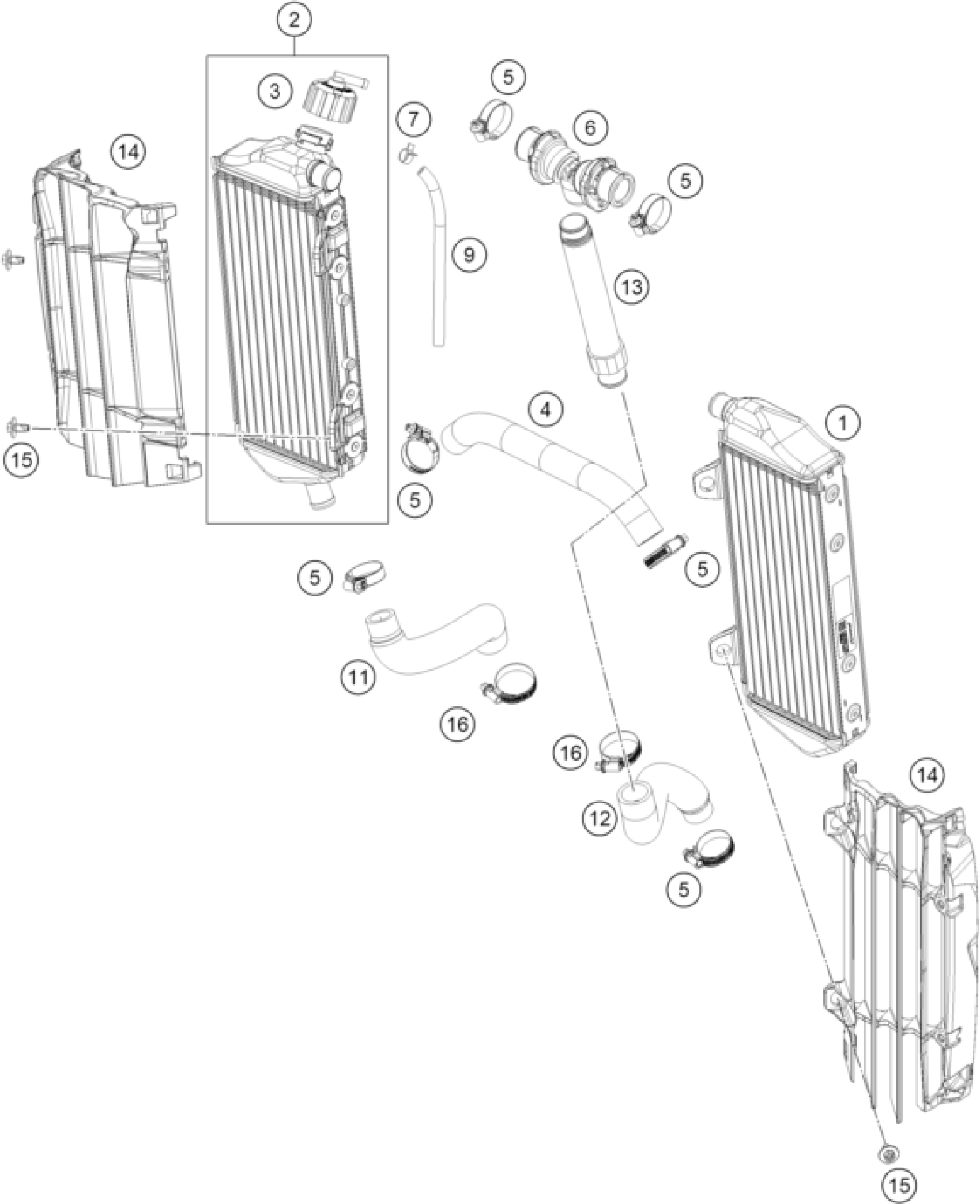

KTM 250 XC-F 2026 COOLING SYSTEM Diagram

#

Description

Price

1

Radiator left

A46035007000

Unavailable

2

radiator right

A46035008100

Unavailable

3

RADIATOR CAP 1,8 BAR

72035016000

Unavailable

4

Pre-formed hose radiator left/

A46035025000

Unavailable

5

Hose clip 18-29

0310000902900

Unavailable

6

Y-piece cmpl.

A46035071044

Unavailable

7

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

9

PVC-HOSE 6X9

50335030001

Unavailable

11

Pre-formed hose engine/radiato

A46035024000

Unavailable

12

Pre-formed hose, engine/riser

A46035023000

Unavailable

13

Screw-in nozzle

A46035073033

Unavailable

14

Radiator protection set, black

A46035036044C1

Unavailable

15

HH ISR collar screw M6x12-10.9

0900000601203

Unavailable

16

Hose clip 20-32

0310000903200

Unavailable
