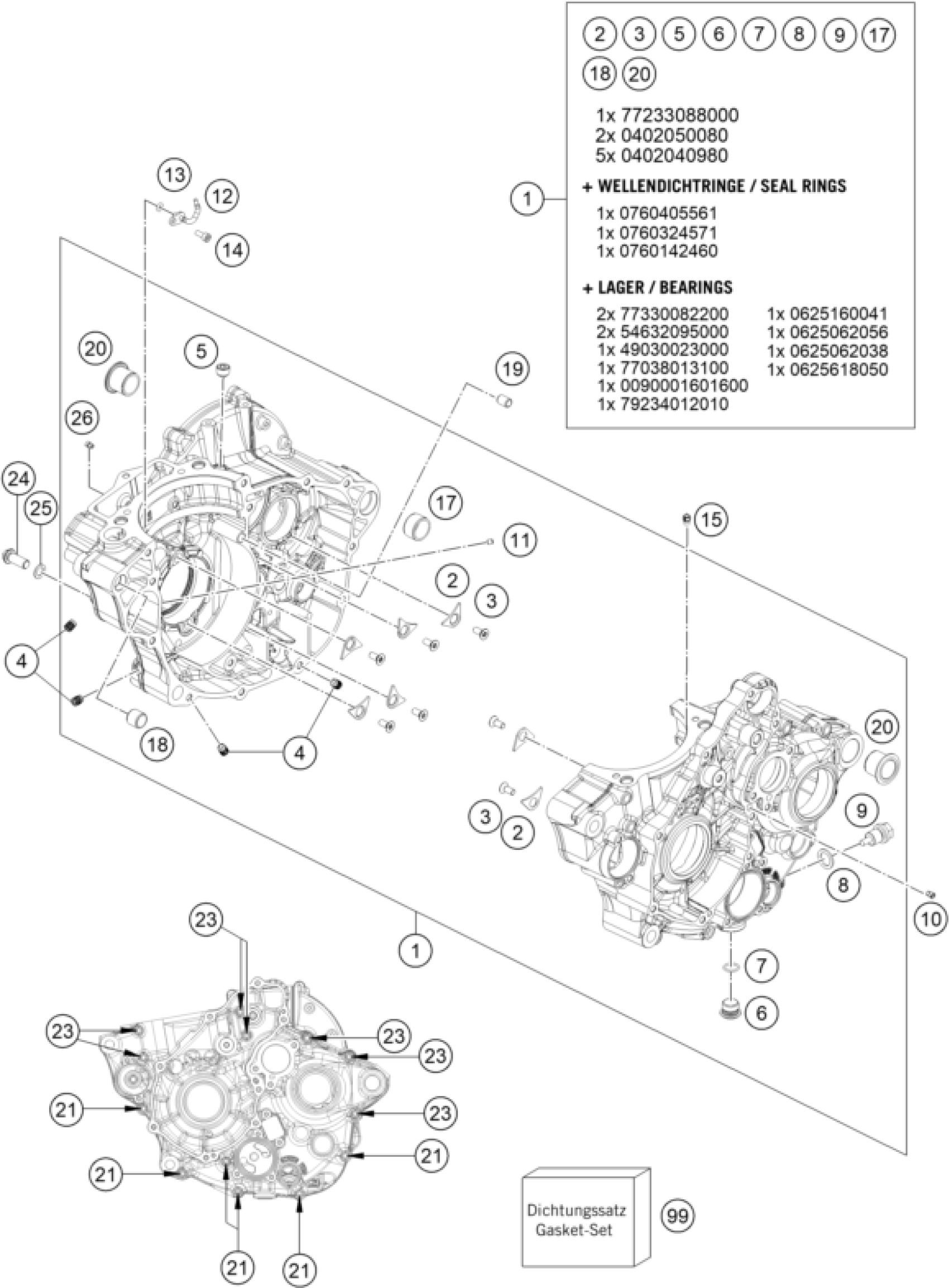

KTM 250 XC-F 2025 ENGINE CASE Diagram

#

Description
Price

1

engine case cpl.

A46030000044

Unavailable

2

Retaining bracket crankshaft b

75030085100

Unavailable

3

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

4

SCREW PLUG

59030296000

Unavailable

5

pipe plug DIN 906 M10x1

0906100100

Unavailable

6

HOLDING BOLT M14X1,5

78036081000

Unavailable

7

O-ring 11x1.5 VITON

0770110015

Unavailable

8

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

9

oildrain plug with magnet

58030021100

Unavailable

10

OIL JET ''60'' M4

80030058060

Unavailable

11

Nozzle

79330058040

Unavailable

12

Oil spray jet curved size 70

81230164070

Unavailable

13

O-RING 3,5X2,00 NBR

0770035020

Unavailable

14

Cylinder screw DIN 912-M4x10-8

0912040103S

Unavailable

15

oil jet 70 M5

60030063070

Unavailable

17

Dowel, 21x12

54830027100

Unavailable

18

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

19

Dowel, 6x8x11.5

59030023100

Unavailable

20

Housing bush

79230010000

Unavailable

21

HH collar screw M6x55 TX30

0025060556

Unavailable

23

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

24

Screw, M8x20 SW=8 8.8

0000150802000

Unavailable

25

COPPER Gask.DIN7603- 8.2X13X1

0603082131

Unavailable

26

Oil jet "40" M4

80030058040

Unavailable

99

Engine seal kit 250cc

A46030099000

Unavailable
