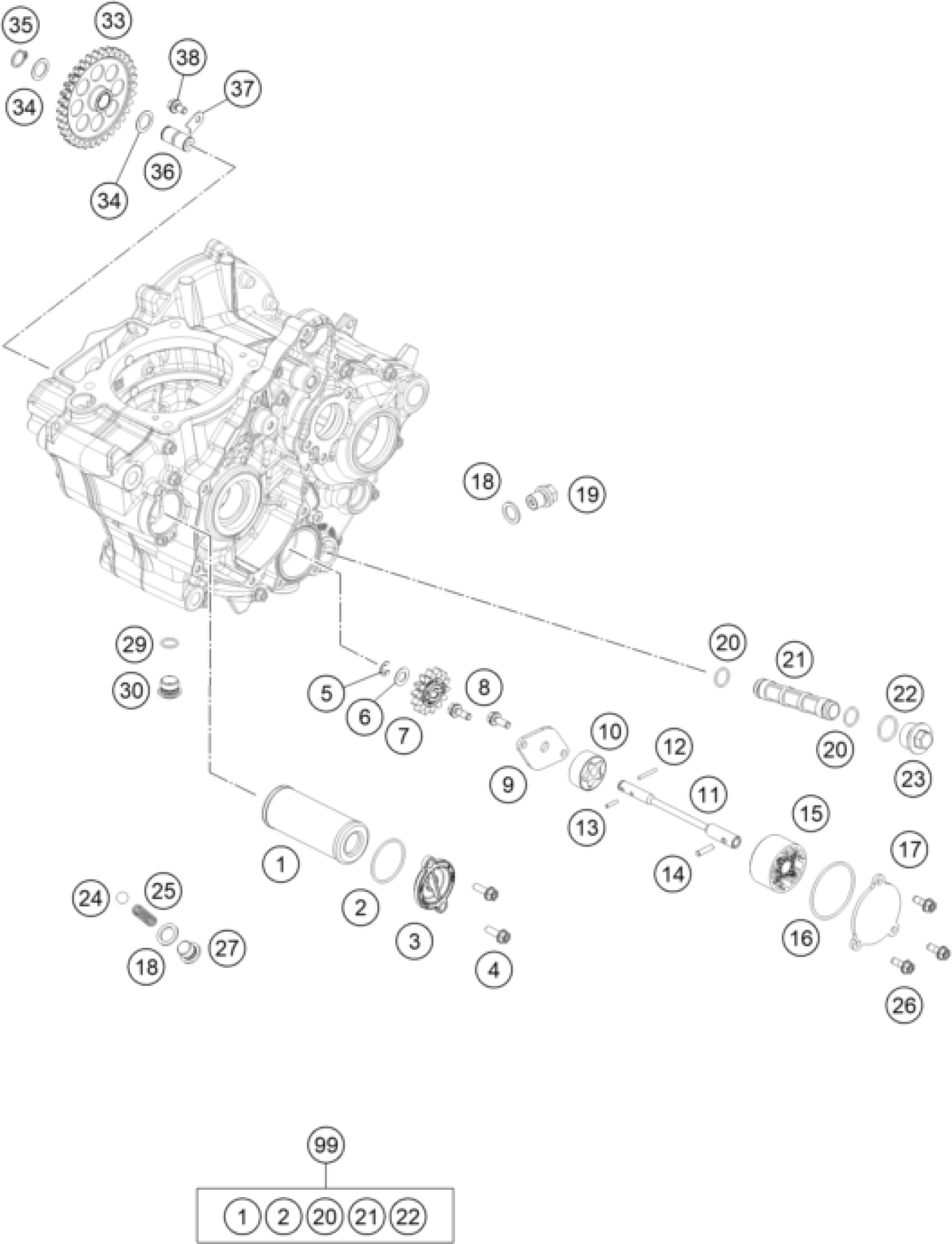

KTM 250 XC-F 2023 LUBRICATING SYSTEM Diagram

#

Description
Price

1

Oil Filter 07

77338005100

Unavailable

2

O-RING 33,05X1,78

07703305178

Unavailable

3

OIL FILTER COVER 08

77338041200

Unavailable

4

HH collar screw M6x16 TX30

0025060166

Unavailable

5

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

6

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

7

Oil pump gear

77038001200

Unavailable

8

Hex coll. screw M5x14 ISA30 se

0025050146S

Unavailable

9

Oil pump cover

A48038003000

Unavailable

10

OILPUMP ROTOR-SET 12MM CPL.

59038011112

Unavailable

11

Oil pump shaft

79238002100

Unavailable

12

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

13

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

14

needle roller NRB 4x15.8 G2

0402041580

Unavailable

15

ROTOR SET 22MM

61238011100

Unavailable

16

O-RING 44,00X2,00 VITON

0770440020

Unavailable

17

OIL PUMP COVER LEFT

79238004000

Unavailable

18

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

19

oildrain plug with magnet

58030021100

Unavailable

20

O-RING 12,5X1,5 VITON V75

07701250151

Unavailable

21

Oil screen

59038016200

Unavailable

22

O-RING 17,17X1,78 GLO

0770020170

Unavailable

23

PLUG M20X1,5 WS=13

59038017100

Unavailable

24

BALL DIN5401-9

0401090003

Unavailable

25

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

26

Hex coll. screw M5x14 ISA30 se

0025050146S

Unavailable

27

PLUG SCREW SAS M12X1,5

78036024000

Unavailable

29

O-ring 11x1.5 VITON

0770110015

Unavailable

30

Screw plug M14x1,5

78036081100

Unavailable

33

Oil pump intermediate gear

79238006300

Unavailable

34

SHIM WASHER DIN0988-12X18X0,50

0988121805

Unavailable

35

retaining ring DIN 471 12x1

0471120010

Unavailable

36

BUSHING PIN

77038013100

Unavailable

37

AXIAL-CIRCLIP

77238061050

Unavailable

38

Hex coll. screw M5x10 ISA30 se

0025050106S

Unavailable

99

OILFILTER-GASKET SET 350 SX-F

00050000083

Unavailable
