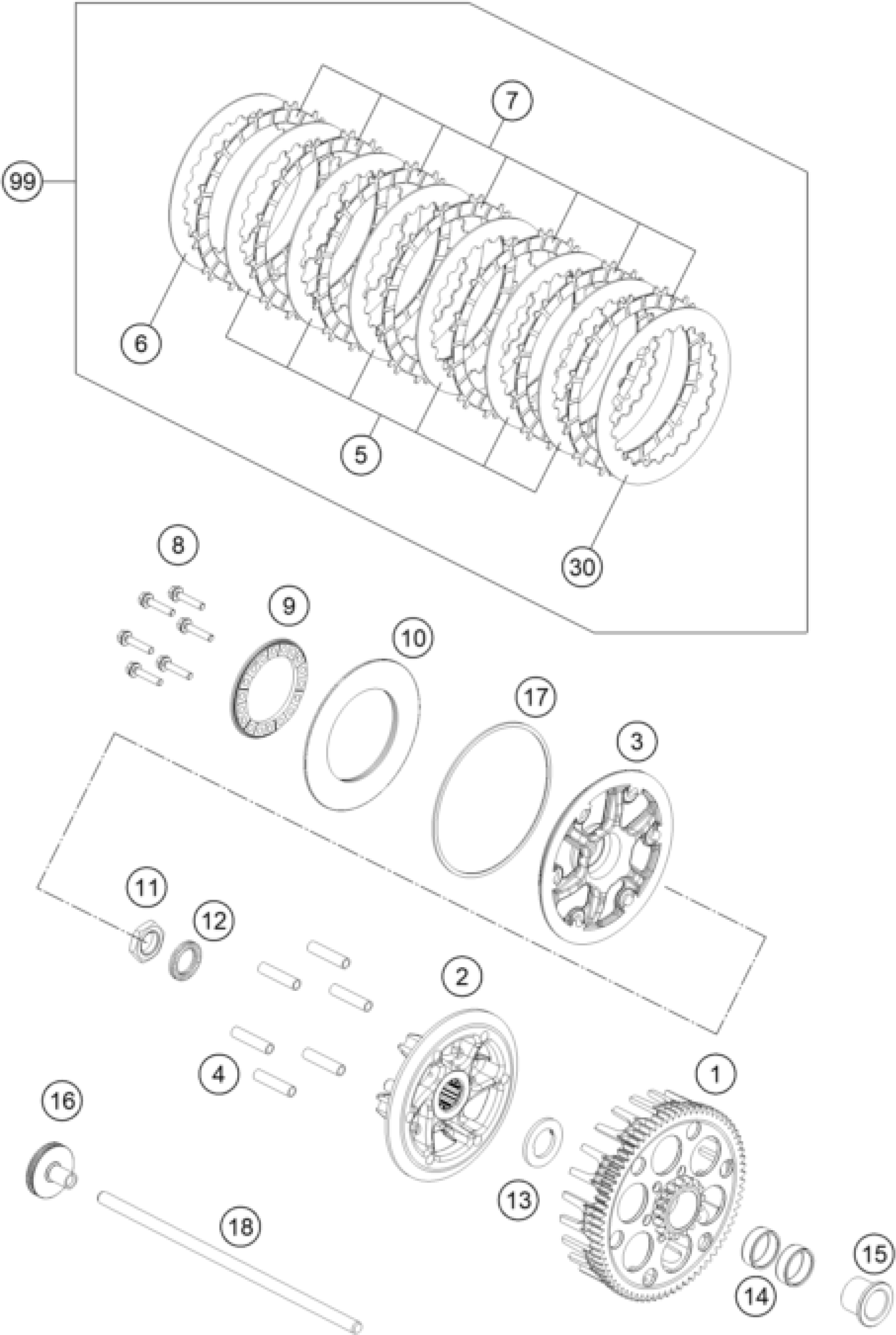

KTM 250 XC-F 2023 CLUTCH Diagram

#

Description
Price

1

Outer clutch hub

A46032001072

Unavailable

2

Inner clutch hub

A46032002000

Unavailable

3

Pressure plate

79332003000

Unavailable

4

Sleeve, 7.95x35

79232104000

Unavailable

5

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

6

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

7

Lining disc 1,95mm

79532011000

Unavailable

8

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

9

Spring retainer

78132006200

Unavailable

10

CLUTCH SPRING ''300Nm''

76432005000

Unavailable

11

Hex nut DIN0936-M18x1.5 right

0936181506

Unavailable

12

Wedge lock washer 19.5x29x3.4

0252012002900

Unavailable

13

WASHER 22 X 36,5 X 3

78932009000

Unavailable

14

NEEDLE BEAR K 25X29X10

0405252910

Unavailable

15

Collar sleeve

A46032015000

Unavailable

17

WASHER 112X118X1.5

78132013000

Unavailable

30

INTERMEDIATE DISC 1MM

78932010000

Unavailable

99

Clutch plate pack

79332010033

Unavailable

16

PRESSURE PIECE CPL. 08

78032057044

Unavailable

18

Push rod

A46032054000

Unavailable
